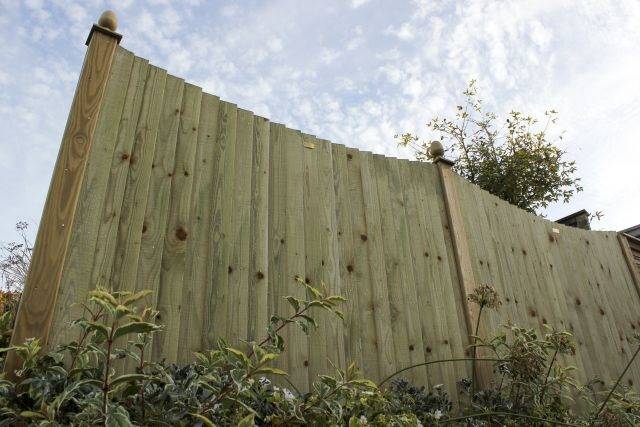

Concave and Convex Featherboard Panels

Application

For gardens, residential and commercial properties.

Description

Softwood concave or convex Featherboard fence panel. All weathered, clad with 100 mm featherboard pales and has either a concave or convex top edge design.

Features and benefits:

  • Heavy top and bottom rails for extra strength.
  • Designed for use with slotted Jakposts.
  • Constructed with two or three rails depending on height.
  • Stainless steel nails are used for longer life.
  • Concave or convex gates available to complement featherboard panels.
  • 25 year guarantee.

Application:

For gardens, residential and commercial properties.

General information

Features

[Features, High grade PFC and RHS steel bottom frame, aluminium curtain with a 3 mm skirt and the panels are in five sections. Easy removal on impact, has a three-phase supply 415 V a.c. and is PLC and inverter controlled]

-

Finish

[Finish, Planed, pressure treatment]

-

Material

[Material, Wood and stainless steel]

-

Size

[Size, 1050–1800 mm (height), 1830 mm (width) and 50 mm thick]

-

WarrantyDescription

[WarrantyDescription, 25 years. Softwood timber Jakcure® treated products are guaranteed against all wood-boring pests and all forms of wet and dry rot for 25 years]

-

Uniclass 2015

Ss_25_15_60_96 Wood post and panel barrier systemsPrimary

CAWS

Q40/20 Close boarded fencing

Q40/30 Proprietary fencing

Q40/310 Close boarded fencing

Q40/430 Proprietary fencing

Specification data - Wood post and panel barrier systems

Product Reference

Concave and Convex Featherboard Panels

Posts

Slotted Jakposts

Post foundations

Set in concrete

Rails

Two or three dependent on height

Baseboards

Gravel board, 1830 x 140 x 28mm

Panels

Concave or Convex, 1830 mm (width)

Fence topping

Capping rail

Consult manufacturer and insert requirements.

Post caps

Consult manufacturer and insert requirements.

Trellis

Consult manufacturer and insert requirements.

Fence topper panels

Consult manufacturer and insert requirements.

Site applied finishes

Planed, pressure treatment

System accessories

Matching concave or convex gates available

Consult manufacturer and insert requirements below.

Type

635000

Concave, 1050 mm high..

635100

Concave, 1350 mm high.

635200

Concave, 1650 mm high.

636000

Concave, 1200 mm high.

636400

Concave, 1500 mm high.

636600

Concave, 1800 mm high.

635300

Convex, 1050 mm high.

635400

Convex, 1350 mm high.

635500

Convex, 1650 mm high.

636500

Convex, 1800 mm high.

636700

Convex, 1200 mm high.

636800

Convex, 1500 mm high.

Gates

Not required

231101

Concave, 1150 x 1000 mm for fence 1200 mm high, complete with hinges and latch.

231211

Concave, 1450 x 1000 mm for fence 1500 mm high, complete with hinges and latch.

231301

Concave, 1750 x 1000 mm for fence 1800 mm high, complete with hinges and latch.

231102

Convex, 1150 x 1000 mm for fence 1200 mm high, complete with hinges and latch.

231202

Convex, 1450 x 1000 mm for fence 1500 mm high, complete with hinges and latch.

231302

Convex, 1750 x 1000 mm for fence 1800 mm high, complete with hinges and latch.

Trellis

Not required

745300

Curved framed diamond trellis, planed finish, 300 x 1830 mm.

Product Options

Colour:

Natural timber.

Features:

High grade PFC and RHS steel bottom frame, aluminium curtain with a 3 mm skirt and the panels are in five sections. Easy removal on impact, has a three-phase supply 415 V a.c. and is PLC and inverter controlled.

Finish:

Planed, pressure treatment.

Material:

Wood and stainless steel.

Size:

1050–1800 mm (height), 1830 mm (width) and 50 mm thick.

Warranty description:

25 years. Softwood timber Jakcure® treated products are guaranteed against all wood-boring pests and all forms of wet and dry rot for 25 years.
