Compression Sleeve
Verified by manufacturer 2 months ago

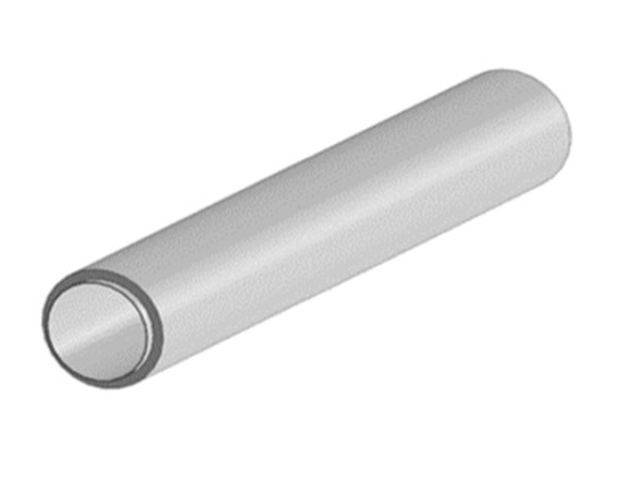

Stainless steel channel tie compression sleeves.
Application
Suitable for use with Wincro WC27 25/14 Masonry restraint system when using semi-rigid or flexible mineral wool insulation types.
Description
Standoff compression sleeve designed to ensure that the compressive strength and stability of the channel tie system is maintained, by preventing the channel deflecting into and compressing the flexible insulation during installation and whilst under normal load.
Features and benefits:
- High quality.
- No hazardous substance.
- Maintains compressive strength.
- Water shedding capability resistant.
- Suits semi-rigid or flexible insulations.
- Manufactured from corrosion resistant stainless steel.
- Produced to suit the thickness of the insulation specified.
- To be used in conjunction with the Wincro WBCFS Screw when fixing to concrete.
- When fixing to SFS, an alternative Mineral Wool Compression Sleeve (WBCOMP) can be used with WBSDDZP or WBSDDSS Tek Screws.
General information
Color | Silver |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304). |
Shape | Circle |
Length | 50 mm 60 mm 75 mm 80 mm 85 mm |
Uniclass | |
CAWS | F30/245 Channel/ slot ties F30/248 Channel/ slot ties used with partial fill insulation F30/26 Wall ties |
Specification data - Surface-mounted channels
Material | Stainless steel, grade 1.4301 (304). |
Length | 50 mm.60 mm.75 mm.80 mm.85 mm.100 mm.110 mm.120 mm.130 mm.150 mm.170 mm.200 mm.220 mm.Manufacturer guidanceFor special order, consult manufacturer for details. |
Durability | To BS EN 10088-3. |
Melting point | 1450 °C. |
Thermal expansion | 17.2 x 10^-6/K. |
ThermalConductivity | 16.2 W/m∙K. |
TensileStrength | 500—700 MPa. |
Compression strength | 7170 N. Manufacturer guidanceCompression (maximum). |
Fire resistance | To BS476 Part 6, Class 2. |
