Description

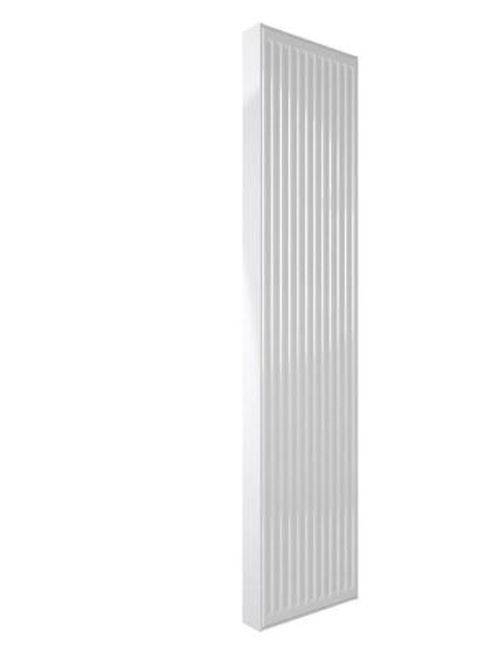

Vertical, compact, stylish radiator for applications where space is at a premium.

Provides extra sizing flexibility and covers a multitude of application requirements. It has integrated top grilles and side panels which have been specifically designed to eradicate any movement, providing a tight, professional fit that will remain in place, even after storage, transit and installation.

The convectors are precision welded directly onto the waterways for greater efficiency and economy, with flexible connection options for the highest of commercial and domestic application specifications.

Features and benefits:

  • Conforms to BS EN 442.
  • Available in a range of 21 sizes.
  • White (RAL 9016) in colour.
  • Five-year manufacturer’s warranty.

General information
Uniclass 2015
Radiators (Pr_70_60_36_73)Primary
Specification data - Radiators
Product Reference

Compact Vertex

Style

K2

102 mm depth (129 mm with projection). Available 1800–2200 x 400–600 mm (h x l).

P2

77 mm depth (104 mm with projection). Available 1800–2200 x 400–700 mm (h x l).

Centre tap thermostatic radiator valve (TRV)

Angled left chrome

Angled left white

Straight chrome

Straight white

Accessories

Not required

Floor mounting brackets

Standard product features

Colour:

White (RAL 9016).

Heat output:

1146–3003 W/ 3911–10 246 Btu/hr dependent on size and style, consult manufacturer's literature for information.

Sections:

Dependent on size and style, consult manufacturer's literature for information.

Connections:

½” inlet connections as standard.

Pressures:

  • Working pressure: 10 bar.
  • Operating pressure: 13.5 bar.

Technical characteristics:

Dependent on size and style, consult manufacturer's literature for information.

Product Options

Style:

Certain styles are only available with certain sizes, consult manufacturer for information.
