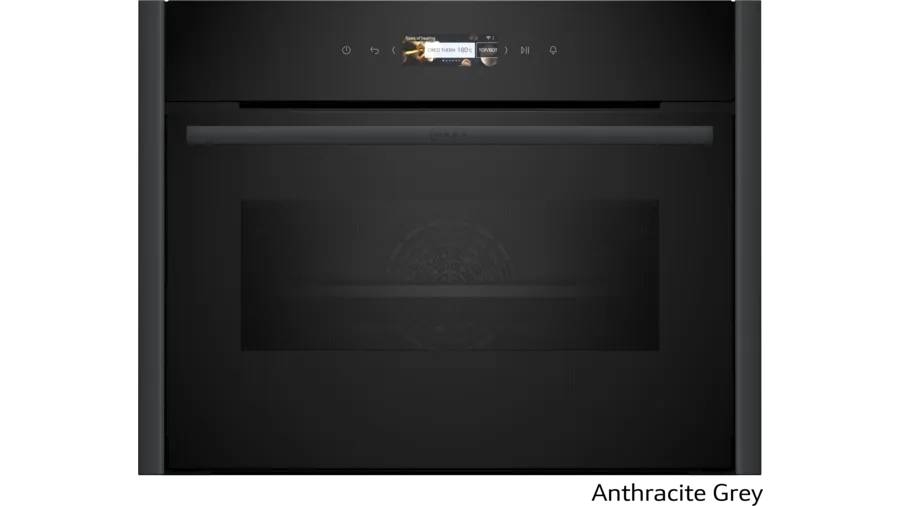

Name: Compact 45cm ovens with Microwave Grey trim
Brand: NEFF Home Appliances
SKU: ry2tEFdm3ANT9oQrx9pW3c

N11/40 Appliances

N11/360 Appliances

Not required.

Z11AB15A0: Baking tray, non-stick ceramic coated.

Z11CR10X0: Baking and roasting grid (standard)

Z11GT10X3: Glass roasting dish, 5.4 L.

Combination grid, universal plan.

Color	Black Grey
Finish	Enamelled
Shape	Rectangle
Length	548 mm Manufacturer guidance Depth.
Width	596 mm
Height	455 mm
Warranty description	Five year

Uniclass	Pr_40_70_24_08 Built-in electric ovensPrimary
CAWS	N11/40 Appliances N11/360 Appliances

Arrangement	Single oven.
Material and finish	Black with grey trim.
Dimensions	-
Height (maximum)	455 mm.
Width (maximum)	596 mm.
Depth (maximum)	548 mm.
Capacity (minimum)	45 L.
Shelving	Three shelf positions.
Doors	Drop-down.
Features	3.7 inch full touch TFT display. Flex Design. Touch control. HomeConnect ready on WLAN. Oven assistant with voice control. Control panel lock. Automatic safety switch off, residual heat indicator, start button. Door contact switch. Maximum power: 900 W. Five minverter (MW). Temperature range 30–230°C. LED light, on/off button. Electronic clock timer. SoftClose, soft opening. Heat reflective glass. Triple glazed door glazed CoolTouch door. Actual temperature display, heating up indicator. CookControl Plus. Cooling fan. Stainless steel fan. Level independent telescopic rails. EasyClean.
Rating	3.6 kW.
Electrical supply	220–240 V, 50 Hz.

Accessories	Not required. Z11AB15A0: Baking tray, non-stick ceramic coated. Z11AU15A0. Z11CR10X0: Baking and roasting grid (standard) Z11GT10X3: Glass roasting dish, 5.4 L. Z11GU20X0: Glass pan. Z11SZ00X1: SC FlexDesign mounting kit. Z11SZ60X0: SeamlessCombination 45 + 14 cm. Z11SZ90X0: SeamlessCombination 60 + 45 cm. Z12CB10A0: Baking tray, enamelled. Z12CM10A0: Moussaka pan. Z12CP10A0: Pizza pan, anthracite enamelled. Z12CU10A0. Z13CR10X0: Baking and roasting grid (steam). Z13CV05S0: Cover strip. Z13CV06S0: Decor strip. Z1650BE0: Half tray. Z1655CA0: Air fry and grill tray. Z1913X0: Baking stone. Z19DD10X0: Steamset for ovens. Z9045AY0: FlexDesign AG 45 Compact/MW 45. Z9045BY0: FlexDesign BB 45 Compact/MW 45. Z9045DY0: FlexDesign DB 45 Compact/MW 45. Z9045MY0: FlexDesign MS 45 Compact/MW 45. Z9060AY0: (SC) FlexDesign AG 60 Oven60. Z9060BY0: (SC) FlexDesign BB 60 Oven 60. Z9060DY0:(SC) FlexDesign DB 60 Oven 60. Z9060MY0: (SC) FlexDesign MS 60 Oven 60. Z9075AY0: SC FlexDesign AG 75 WD 14 + 60. Z9075BY0: SC FlexDesign BB 75 WD 14 + 60. Z9075DY0: SC FlexDesign DB 75 WD 14 + 60. Z9075MY0 SC FlexDesign MS 75 WD 14 + 60. Z9098AY0: SC FlexDesign AG 98 60 + MW 38. Z9098BY0: SC FlexDesign BB 98 60 + MW 38. Z9098DY0: SC FlexDesign DB 98 60 + MW 38. Z9098MY0: SC FlexDesign MS 98 60 + MW 38. Z9105AY0: SC FlexDesign AG 105 60 + 45. Z9105BY0: SCFlexDesign BB 105 60 + 45. Z9105DY0: SC FlexDesign DB 105 60 + 45. Z9105MY0: SC FlexDesign MS 105 60 + 45. Z912AAY0: SCFlexDesign AG 120 WD14 + 60 + 45. Z912ABY0: SC FlexDesignBB 120 WD14 + 60 + 45. Z912ADY0: SC FlexDesign DB 120 WD14 + 60 + 45. Z912AMY0: SC FlexDesign MS 120 WD14 + 60 + 45. Z912BAY0: SC FlexDesign AG 120 60+60. Z912BBY0: SCFlexDesign BB 120 60+60. Z912BDY0: SC FlexDesign DB 120 60+60. Z912BMY0: SC FlexDesign MS 120 60+60. Z990AAY0: SCFlexDesign AG 90 WD 29 + 60. Z990ABY0: SC FlexDesign BB 90 WD 29 + 60. Z990ADY0: SC FlexDesign DB 90 WD 29 + 60. Z990AMY0: SC FlexDesign MS 90 WD 29 + 60. Z990BAY0: SC FlexDesign AG 90 45 + 45. Z990BBY0: SC FlexDesign BB 90 45 + 45. Z990BDY0: SCFlexDesign DB 90 45 + 45. Z990BMY0: SC FlexDesign MS 90 45 + 45. Z99RX70X0. Show more
Integral accessories	Combination grid, universal plan.
Weight	34.7 kg.

Platform	Compatible	Version
Revit	-	1
IFC	-	1

Compact 45cm ovens with Microwave Grey trim

Application

Description

General information

Color

Finish

Shape

Length

Manufacturer guidance

Width

Height

Warranty description

Uniclass

CAWS

Specification data - Built-in electric ovens

Arrangement

Single oven.

Material and finish

Black with grey trim.

Dimensions

Height (maximum)

455 mm.

Width (maximum)

596 mm.

Depth (maximum)

548 mm.

Capacity (minimum)

45 L.

Shelving

Three shelf positions.

Doors

Drop-down.

Features

Rating

3.6 kW.

Electrical supply

220–240 V, 50 Hz.

Accessories

Integral accessories

Weight

BIM objects

Literature
