Communal Entrance Steel Doors AD40 Armourdoor

Verified by manufacturer 3 days ago

HAG Ltd. - The Door Specialists Third party certifications:
  • ADSA

    ADSA

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • Made in Britain

    Made in Britain

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • dhf certificate

    dhf certificate

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • AkzoNobel

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

Medium/ High security manually operated entrance steel doors for a multitude of settings.

Jump to:
BOS
0800 072 3444 Website

Application

Communal entrance steel doors are suitable for industrial, commercial, residential, public buildings, hospitality and cultural or historical settings

  • Airports
  • Train stations
  • Retail units
  • Shopping malls
  • Offices
  • Leisure complex
  • Warehouse
  • Factories
  • Chemical plant
  • Hospitals
  • Care homes
  • Receptions areas
  • Schools
  • Colleges
  • Academies
  • Universities
  • Nurseries
  • Residential - high rise or large houses
  • Hotels
  • Restaurants
  • Museums
  • Libraries
  • Historical sites


Description

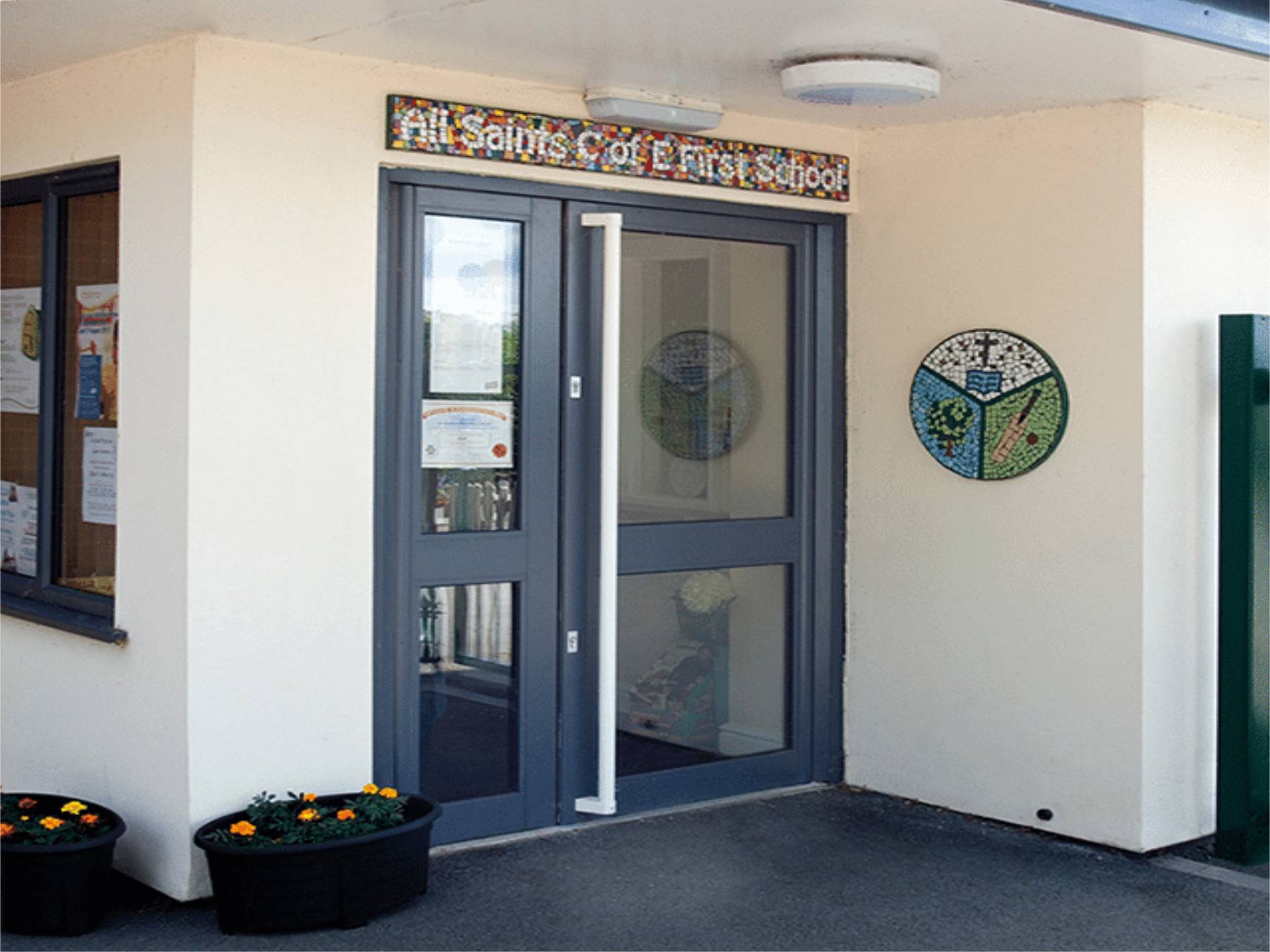

Communal entrance steel door, providing a high security for entrances that experience a high volume of pedestrian traffic.


Features and benefits:

  • Leaf thickness of 48 mm made from 1.5 mm corrosion resistant steel as standard.
  • Available in standard or double openings at recommended heights of up to 2900 mm.
  • Double glazed units allow for through vision. Constructed with two leaves each of 11.5 mm anti-bandit glass covered by 2 mm stainless panels.
  • The door is supplied with a standard driveable threshold, and a variable sub frame to allow up to 30 mm tolerance for site installations.
  • Safety is incorporated into the door with anti-finger traps, concealed closers and frameless vision panels to minimize the threat of injury.
  • Door infill is constructed from a solid timber core for anti-vandal protection.
  • The steel door frame is manufactured from 1.6 mm thick steel Zintec sheets.
  • Locking systems can be adapted to include access control.
  • The frame is fitted with one dog bolt per hinge.
  • Concealed double mortice mounted deadlock.
  • Range of optional extras.
  • Can be specified to the PAS24 standard, upon request.

General information

Color

Silver

Guidance for specification option:

Stainless steel.

Other

Guidance for specification option:

500 RAL and BS colours available.

Finish

Powder-coated

Guidance for specification option:

Polyester powder-coated (PPC).

Material

Steel

Guidance for specification option:

1.5 mm-thick, corrosion-resistant.

Laminate

Guidance for specification option:

PVC laminate.

Stainless steel

Shape

Rectangle

Length

Bespoke

Width

690 mm

1390 mm

1290 mm

2600 mm

Manufacturer guidance

Bespoke size range, consult manufacturer for details.

Single openings: 690–1390 mm.

Double openings: 1290–2600 mm.

Height

2900 mm

Warranty description

One year

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary
Pr_30_59_24_37 High-security doorsets

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

Armourdoor - Steel Doors

Specification data - Carbon steel doorsets

Configuration

Double leaf, single action.

Single leaf, single action.

Bespoke.

Guidance for specification option:

Double and single doorsets can be combined as required.

Alternative aperture shapes available; consult manufacturer for details.

Doorset size

-

Manufacturer guidance

Insert requirements:

  • Single openings width: 690–1390 mm.
  • Double openings width: 1290–2600 mm.
  • All at heights up to 2900 mm.

Performance

-

Intruder resistance

-

Minimum requirement

Not required.

To PAS 24.

Frame

-

Material

1.6 mm-thick Zintec steel.

Threshold

Standard driveable threshold.

Finish

-

Coating

Polyester powder-coating.

PVC laminate.

Stainless steel.

Texture

Smooth.

Colour

Stainless steel.

Guidance for specification option:

Standard for stainless steel coating only.

500 RAL and BS colours.

Guidance for specification option:

Polyester powder-coating.

Manufacturer guidance

For PVC laminate, consult manufacturer for details.

Frame accessories

-

Manufacturer guidance

Manufacturer's ironmongery list available, refer to guidance for details and insert requirements.

Door leaf

-

Thickness

48 mm.

Core

Solid timber.

Panel details

Solid.

Glazed.

Louvred.

Special design.

Guidance for specification option:

Consult manufacturer and insert requirements.

Material

Steel.

Guidance for specification option:

1.5 mm-thick, corrosion-resistant steel standard.

Glazing

-

Type

Not required.

Clear double glazing units.

Guidance for specification option:

Two leaves each of 11.5 mm anti-bandit glass covered by 2 mm stainless panels.

Beading

-

Type

Not required.

Frameless vision panels.

Finish

-

Coating

Polyester powder-coated.

PVC laminate.

Stainless steel.

Texture

Smooth.

External colour

Stainless steel.

Guidance for specification option:

Standard for stainless steel coating only.

500 RAL and BS colours.

Guidance for specification option:

Polyester powder-coating.

Manufacturer guidance

For PVC laminate, consult manufacturer for details.

Internal colour

As External.

Stainless steel.

Guidance for specification option:

Standard for stainless steel coating only.

500 RAL and BS colours.

Guidance for specification option:

Polyester powder-coating.

Manufacturer guidance

For PVC laminate, consult manufacturer for details.

Hardware

One dog bolt per hinge, Concealed double mortice mounted deadlock.

Operation

Standard.

Access control, concealed maglocks.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Guidance for specification option:

1.5 mm-thick, corrosion-resistant.

Laminate

Guidance for specification option:

PVC laminate.

Stainless steel

Recyclability

95

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

17 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ADSA

ADSA Membership

Alcumus SafeContractor

Alcumus Safe Contractor Certificate of Accreditation

Made in Britain

Builders Profile Membership

CHAS

CHAS Certificate of Accreditation

Constructionline

Construction Line Gold Membership

dhf certificate

DHF Full Member

Made in Britain

Environment Agency Waste Management Certificate

Alcumus SafeContractor

SAFE PQQ Alcumus Safe Contractor

ISO 9001 Quality Management

ISO 9001

AkzoNobel

Akzo Nobel Power coated

Alcumus SafeContractor

Alcumus SafeContractor

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

Literature

Steel Doors

Steel Doors

Acclaim Certificate of Health & Safety Accreditation

Acclaim Certificate of Health & Safety Accreditation

Avetta Consortium Membership

Avetta Consortium Membership

Citation Health & Safety Management Systems

Citation Health & Safety Management Systems

Cyber Essentials Certificate of Assurance

Cyber Essentials Certificate of Assurance

Employers Liability Insurance

Employers Liability Insurance

CAD AD40

CAD AD40

Case studies

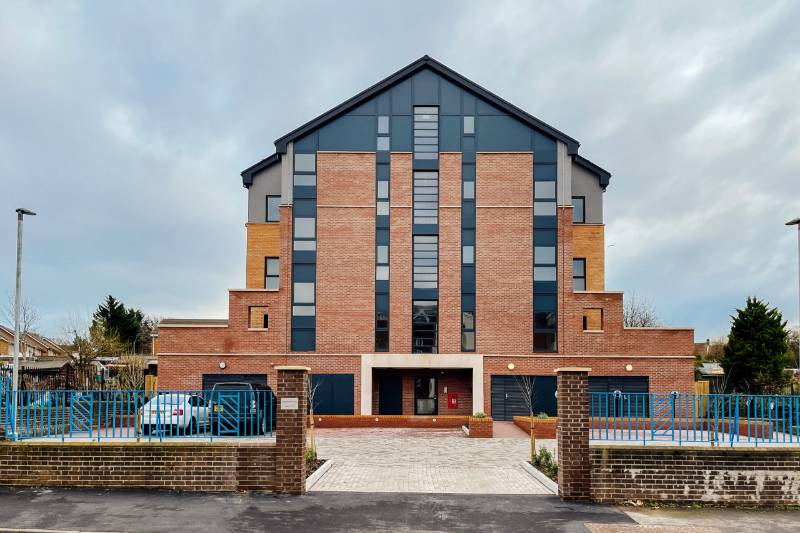

Speedwell Baths - social housing for local people
