Verified by manufacturer 8 months ago
9 kW -EHCCECB9
UK Conformity Assessed (UKCA)
Certificate type
WRAS
Certificate type
NSF International
Certificate type
Outputs available 9 kW, 12kW and 14.4 kW with 140 litre hot water storage. Single Phase Only

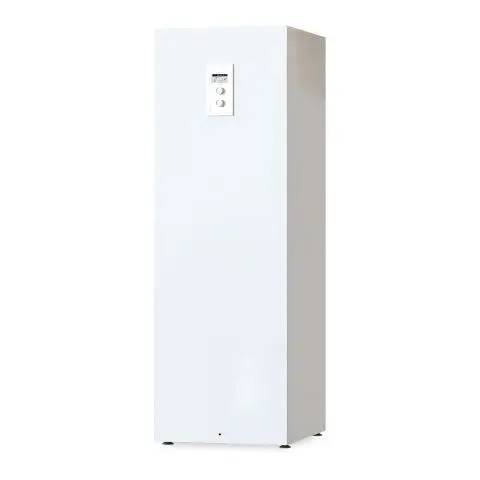

The Comet Electric Boiler Combination unit offers the comfort and convenience of wet central heating and domestic hot water for domestic properties with no access to mains gas. It is a fully controllable 24/7 packaged unit housed in an elegant enclosure and is available in 9 kW, 12 kW or 14.4 kW outputs with an internal 140 litre duplex stainless steel hot water cylinder.
Furthermore you can select Heating only, Hot Water only or both at the same time. Due to the In Built Indirect Hot Water Cylinder, the re-heat times for your Hot Water is superior to that of a Direct Cylinder which comprises of an Immersion Heater only.
Features and benefits:
Comet Combination Unit
Stainless Steel Cylinder and System
The future of home heating with our advanced Electric Boilers and Combi Boilers, offering efficient solutions for central heating. If you're in the UK, our comprehensive range of boilers, including Electric Combi Boilers, guarantees warmth and hot water on demand. The innovative features of our Electric Water Boilers and Water Heaters, providing instant hot water for your daily needs. Consider the convenience of a Hot Water Cylinder for sustained warmth in your home. Our EHC products, ensures reliable Electric Heating and a seamless integration into your central heating system.
Color | White |
Finish | Powder-coated |
Material | Stainless steel |
Shape | Rectangle |
Length | 630 mm |
Width | 580 mm |
Height | 1745 mm |
Warranty description | Five year Guidance for specification option: Boiler. Terms and conditions apply; consult manufacturer for details. Ten year Guidance for specification option: Stainless steel cylinder. |
Uniclass | |
CAWS | T90/322 Boilers, electric |
Boiler type | Combi. |
Integral cylinder | 140 L duplex stainless steel hot water cylinder.Guidance for specification option:
|
Output | 9 kW. |
Energy efficiency rating | D (boiler). |
Mounting | Floor standing. |
Operating pressure | 1.0 bar (minimum). |
Test pressure | 3.0 bar.Manufacturer guidancePrimary system pressure relief valve setting. |
Operating temperature | 30℃ (minimum); 85℃ (maximum). |
Heat exchanger | Stainless steel. |
Accessories | Not required.Shower flow sensor - ESFS15/C.Back-up immersion heater.Solar PV immersion heater. |
Dimensions | 1745 x 580 x 630 mm. Manufacturer guidanceOverall height x width x depth. |
Weight | 107 kg. |
Expansion Vessel Size | 12 L (pre-charged 1.5 bar). |
Pipes | 22 mm. Manufacturer guidanceHydraulic connections. |
Current | 38 Amp. Manufacturer guidanceLoad/ Current. |
Output | 30709 Btu. Manufacturer guidanceHeating output. |
Diameter | 10 mm². Manufacturer guidanceRecommended diameter of mains cable. |
Protection | 50 Amp. |
Pump | Grundfos UPM3. Wilo-Para 15/7 iPWM. Manufacturer guidancePrimary circulating pump. |
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | Poland |
Recyclability | yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
