Comar-DucoSun F+ Solar Shading System
Description

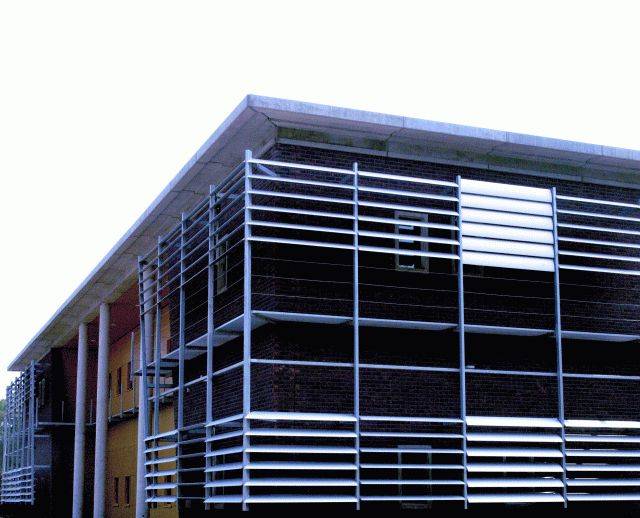

External sun control system using moveable aluminium elliptical blades, available in five sizes.

Features:

  • Permanent external aluminium sun control system.
  • Blades are adjusted by means of electric linear drive motors.
  • Horizontal or vertical louvre blade fitting.

General information

Finish

Enamelled polyester powder coated, RAL ___

Satin anodized

Features

Permanent external aluminium sun control system

Blades are adjusted by means of electric linear drive motors

Horizontal or vertical louvre blade fitting

Uniclass 2015

Pr_30_59_09_15 Carbon steel brise-soleil unitsPrimary

CAWS

L10/670 Brises soleil

Specification data - Carbon steel brise-soleil units

Product Reference

Comar-DucoSun F+ Solar Shading System

Blade

Aerofoil 100F

Aerofoil 150F

Aerofoil 200F

200 x 37 mm.

Aerofoil 250F

250 x 43.5 mm.

Aerofoil 300F

300 x 50 mm.

Aerofoil 350F

350 x 57 mm.

Aerofoil 400F

400 x 63 mm.

Fitting

Fitting

Vertical

Vertical system only.

System

Horizontal

Vertical

Coverplate

101251

Coverplate 200F Type 1.

101281

Coverplate 300F Type 1.

101311

Coverplate 400F Type 1.

101671

Coverplate 350F Type 1.

101791

Coverplate 250F Type 1.

As drawing ___

Dimensions

As drawing ___

Finish

Enamelled polyester powder coated, RAL ___

Satin anodized

Mullions

Not required

100111

Mullion 30/78.

100171

Mullion 30/50.

734401

Mullion 50/12.

As drawing ___

Accessories

None

0101191

Coupling set 200F.

00101201

Coupling set 300F.

00101211

Coupling set 400F.

00101521

Coupling set 350F.

00101861

Coupling set 250F.

100312

Check nut M8.

100337

Hexagon head bolt M8 x 10 mm.

100338

Hexagon head bolt M8 x 14 mm.

100339

Washer M5.

100347

Check nut M5.

100348

Countersunk screw M5 x 55 mm.

101196

Rectangular thin nut M8.

101198

Hexagon head bolt M8 x 20 mm.

101199

Self drilling countersunk screw 4.8 x 25 mm.

101216

Hexagon socket button head cap screw with flange M8 x 12 mm.

102007

Screw for chipboard 6 x 40 mm.

733101

T-bolt M8.

733201

Washer M8.

Electrical linear drive motor

Spring tap

Standard product features

Aluminium:

EN AW 6063 T66.

Product Options

Blade fitting:

The blades can be fixed horizontally to horizontal or vertical structures and can be fitted vertically to suitable top and bottom frames.

Blade system:

  • The blades can be fixed to a horizontal or vertical structure.
  • Contact Comar Duco® for advice on the design of the structure.

Coverplate:

  • Aluminium coverplates are available for fitting to each end of the blade.
  • Bespoke coverplates can be manufactured to order.

Finish:

  • Standard: Satin anodized aluminium (15–20 micrometres).
  • Optional: Enamelled polyester powder coated (60–80 micrometres), in any RAL colour.

Mullions:

- Standard sections:

  • 30/50: 50 x 30 mm aluminium box section.
  • 30/78: 77.8 x 30 mm aluminium box section.
  • 50 /12: 50 x 12 mm aluminium extrusion.

- Bespoke:

Contact Comar Duco® for advice.

Accessories:

  • Coupling sets are available to attach blades together.
  • A range of fixings are available to fit the blades to coverplates and to the supporting structure.
