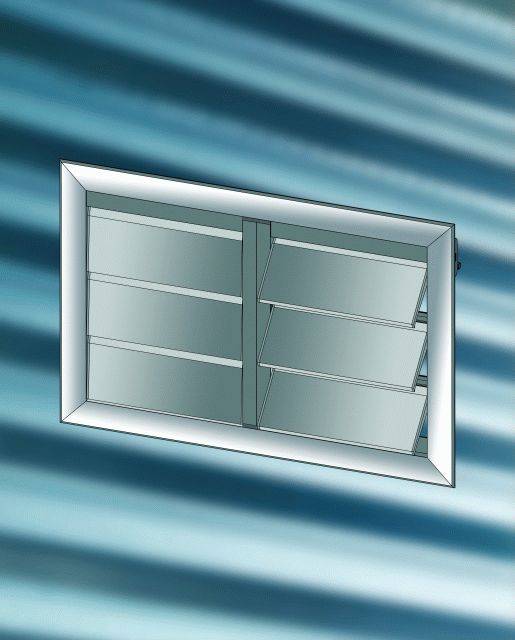

Comar-DucoClose N 85Z Louvre Wall Grille
An adjustable aluminium wall louvre, without flange, with 115 mm high blades.
An adjustable aluminium wall louvre, without flange, with 115 mm high blades, available in two finishes.
Features:
- Provides intensive ventilation.
- Louvre blades are Z-shaped on the outside and rounded on the inside.
- Manufactured to the required dimensions of the opening.
Finish | Enamelled polyester powder coated, RAL ___ Satin anodized |
Features | Provides intensive ventilation Louvre blades are Z-shaped on the outside and rounded on the inside Manufactured to the required dimensions of the opening |
Uniclass 2015 | |
CAWS | U90/36 Air transfer grilles U90/360 Air transfer grilles |
Product Reference | Comar-DucoClose N 85Z Louvre Wall Grille |
Control | ManualMotorized |
Dimensions | As drawing ___ |
Finish | Enamelled polyester powder coated, RAL ___Satin anodized |
Accessories | NoneBird screenInsect screen |
Standard product features | Frame thickness: 42 mm. Free area (open position): 89 %. Height (minimum): 373 mm (manual control); 573.5 mm (motorized control). Nett airflow (open position): 58 %. Pitch: 100 mm. |
Product Options | Finish:
|
