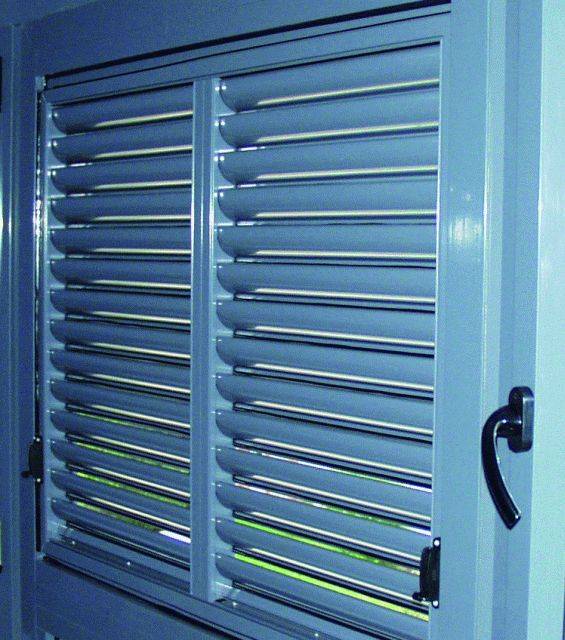

Comar-DucoClose N 35Z Louvre Wall Grille

Name: Comar-DucoClose N 35Z Louvre Wall Grille
Brand: qwr1koNmnrVqiN7qj8bM9H
SKU: 9xaop6ytSLXtgrsfpA1ynt

Comar Architectural Aluminium Systems

An adjustable aluminium wall louvre, without flange, with 40 mm high blades.

Jump to:

+44 (0)20 8685 9685 www.comar-alu.co.uk

Description

An adjustable aluminium wall louvre, without flange, with 40 mm high blades, available in two finishes.

Features:

Provides intensive ventilation.

Louvre blades are Z-shaped on the outside and rounded on the inside.

Manufactured to the required dimensions of the opening.

General information

Finish

Enamelled polyester powder coated, RAL ___

Satin anodized

Features

Provides intensive ventilation

Louvre blades are Z-shaped on the outside and rounded on the inside

Manufactured to the required dimensions of the opening

Uniclass 2015

Pr_30_59_48_04 Aluminium louvre panel unitsPrimary

Specification data - Aluminium louvre panel units

Product Reference	Comar-DucoClose N 35Z Louvre Wall Grille
Control	Manual Motorized
Dimensions	As drawing ___
Finish	Enamelled polyester powder coated, RAL ___ Satin anodized
Accessories	None Bird screen Insect screen

Standard product features	Frame thickness: 42 mm. Free area (open position): 51 %. Height (minimum): 223.5 mm (manual control); 473.5 mm (motorized control). Nett airflow (open position): 39 %. Pitch: 50 mm.
Product Options	Finish: Standard: Satin anodized aluminium (15–20 micrometres). Optional: Enamelled polyester powder coated (60–80 micrometres), in any RAL colour.

Comar-DucoClose N 35Z Louvre Wall Grille

Enamelled polyester powder coated, RAL ___

Satin anodized

Provides intensive ventilation

Louvre blades are Z-shaped on the outside and rounded on the inside

Manufactured to the required dimensions of the opening

Comar-DucoClose N 35Z Louvre Wall Grille

Manual

Motorized

As drawing ___

Enamelled polyester powder coated, RAL ___

Satin anodized

None

Bird screen

Insect screen

Frame thickness:
42 mm.
Free area (open position):
51 %.
Height (minimum):
223.5 mm (manual control); 473.5 mm (motorized control).
Nett airflow (open position):
39 %.
Pitch:
50 mm.

Finish:
Standard: Satin anodized aluminium (15–20 micrometres).
Optional: Enamelled polyester powder coated (60–80 micrometres), in any RAL colour.

Comar-DucoClose N 35Z Louvre Wall Grille

Enamelled polyester powder coated, RAL ___

Satin anodized

Provides intensive ventilation

Louvre blades are Z-shaped on the outside and rounded on the inside

Manufactured to the required dimensions of the opening

Comar-DucoClose N 35Z Louvre Wall Grille

Manual

Motorized

As drawing ___

Enamelled polyester powder coated, RAL ___

Satin anodized

None

Bird screen

Insect screen

Frame thickness:42 mm.Free area (open position):51 %.Height (minimum):223.5 mm (manual control); 473.5 mm (motorized control).Nett airflow (open position):39 %.Pitch:50 mm.

Finish:Standard: Satin anodized aluminium (15–20 micrometres).Optional: Enamelled polyester powder coated (60–80 micrometres), in any RAL colour.

Frame thickness:
42 mm.
Free area (open position):
51 %.
Height (minimum):
223.5 mm (manual control); 473.5 mm (motorized control).
Nett airflow (open position):
39 %.
Pitch:
50 mm.

Finish:
Standard: Satin anodized aluminium (15–20 micrometres).
Optional: Enamelled polyester powder coated (60–80 micrometres), in any RAL colour.
