Application

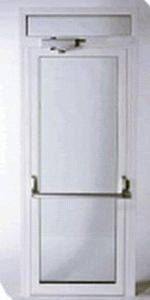

High performance doors with high weather rating and polyamide insulation providing low U-values for enhanced thermal efficiency.

Description

A range of high performance doors with high weather rating and polyamide insulation providing low U-values for enhanced thermal efficiency. Comar 7 has been designed to conform to the relevant industry standards, such as BS 7950 and where applicable PAS 24.

General information

Color

Other

Black

Grey

Finish

Anodized

Powder-coated

Material

Aluminium

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Guidance for specification option:

  • Aluminium extrusions.
  • Assembly Sealants.
  • Fixing Brackets.
  • Fixing Screws.
  • Inner Gasket.
  • Outer Gasket.
  • Thermal Break.
  • Weatherseals.

30 year

Guidance for specification option:

  • Anodized finish.

25 year

Guidance for specification option:

  • Powder-coated (matt).

Other

Guidance for specification option:

  • Paint joint / seal extrusions - warranty to be agreed.

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

H11/135 Doors

L20/480 Doorsets

L20/55 Doorsets

Specification data - Aluminium doorsets

Standard

To BS 7950 and where applicable PAS 24.

Configuration

Single-leaf, single-action.

Doorset size

Guidance for specification option:

Consult manufacturer and insert requirements.

Frame

-

Material

Aluminium.

Guidance for specification option:

Extruded profiles of aluminium alloy 6063 T5, T6 to BS EN 755-1: 1997.

Perimeter seals or inserts

Polypropylene double-sided brush seals.

Guidance for specification option:

Woven-backed for inside and outside protection.

EPDM weatherseal.

Guidance for specification option:

Extruded EPDM rubber gaskets.

Wool piles.

Guidance for specification option:

Wool-piles also available to meet the severe weather rating requirements of the British Standards Institute and also comply with the Architectural Aluminium Association of the USA (AAMA 701.2: 1974).

Finish

-

Coating

Anodized.

Powder-coated.

Colour

Guidance for specification option:

Consult manufacturer and insert requirements.

Door leaf

-

Panel details

Solid.

Double glazed.

Manufacturer guidance

Solid panels or single/ double glazing 4–40 mm thick. External glazing beads are mechanically fixed in rebates for security. Glass is set dry against glazing tape or EPDM gaskets and retained by a variety of clip-in beads.

Material

Aluminium.

Finish

-

Coating

Anodized.

Powder-coated.

External colour

Guidance for specification option:

Consult manufacturer and insert requirements.

Internal colour

Guidance for specification option:

Consult manufacturer and insert requirements.

Door accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Hardware

Guidance for specification option:

Comar 7 Swing Doorsets are factory fitted with hinges and bolts and designed to accept surface fixed ironmongery from all major manufacturers.

Accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Configuration

Rebated open in.

Rebated open out.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Recyclability

Aluminium profile fully recyclable at end of life

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

Literature

Comar life expectancies and warranties to BS 7543:2015

Comar life expectancies and warranties to BS 7543:2015
