Comar 7 Auto Doors
Verified by manufacturer 15 hours ago

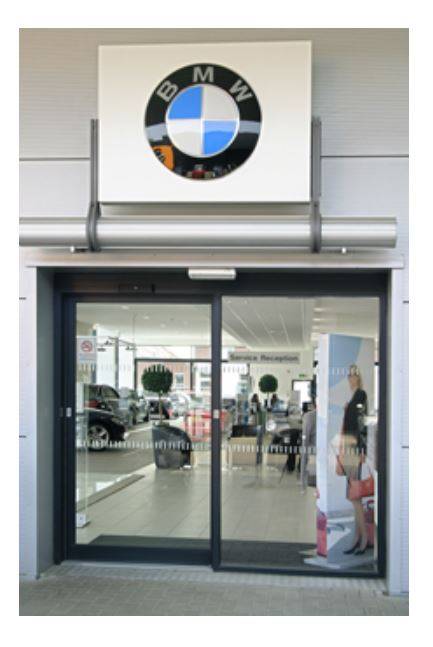

Automatic sliding doorset.
Application
Doorset applications.
Description
Automatic sliding doorset.
Features and benefits:
- Exceeds the requirements of BS 6375.
- Internal and external glazing options up to 40 mm units.
- Mill and standard white finish available ex-stock.
- Standardized hardware all available ex-stock.
- Fully integrates into existing systems.
- Project-by-project U-value calculations.
- Glass and panel thickness up to 45 mm.
- Full tooling available reducing fabrication time and ensuring accuracy.
General information
Color | Silver White Other Guidance for specification option: Other RAL colours available on request. |
Finish | Anodized Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/490 Automatic doors L20/60 Doors L20/520 Sliding doors |
Specification data - Sliding door and partition sets
Door leaves | |
Construction | Extruded aluminium profiles are of aluminium alloy 6063 T5 or T6 and comply with BS EN 12020-2:2001 and BS 755-9:2001. |
Finish and colour | Anodizing to BS EN 12373-1:2001 or BS 3987.Polyester powder coating to BS 6496. |
Operation | Powered. |
Hardware | Axim deadlock.Guidance for specification option: For additional security. Manufacturer guidanceComar 7 utilizes a range of hardware such as handles, locks, panic exit devices and flush bolts available from the AXIM range of architectural hardware. Comar 7 doors can be fabricated to incorporate all major manufacturers automatic door gearing and panic exit devices. Consult manufacturer and insert requirements. |
Glass | Single glazed. Double glazed. Manufacturer guidanceInternal and external glazing options, up to 40 mm units. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100% at end of life |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 70 % |
