Description

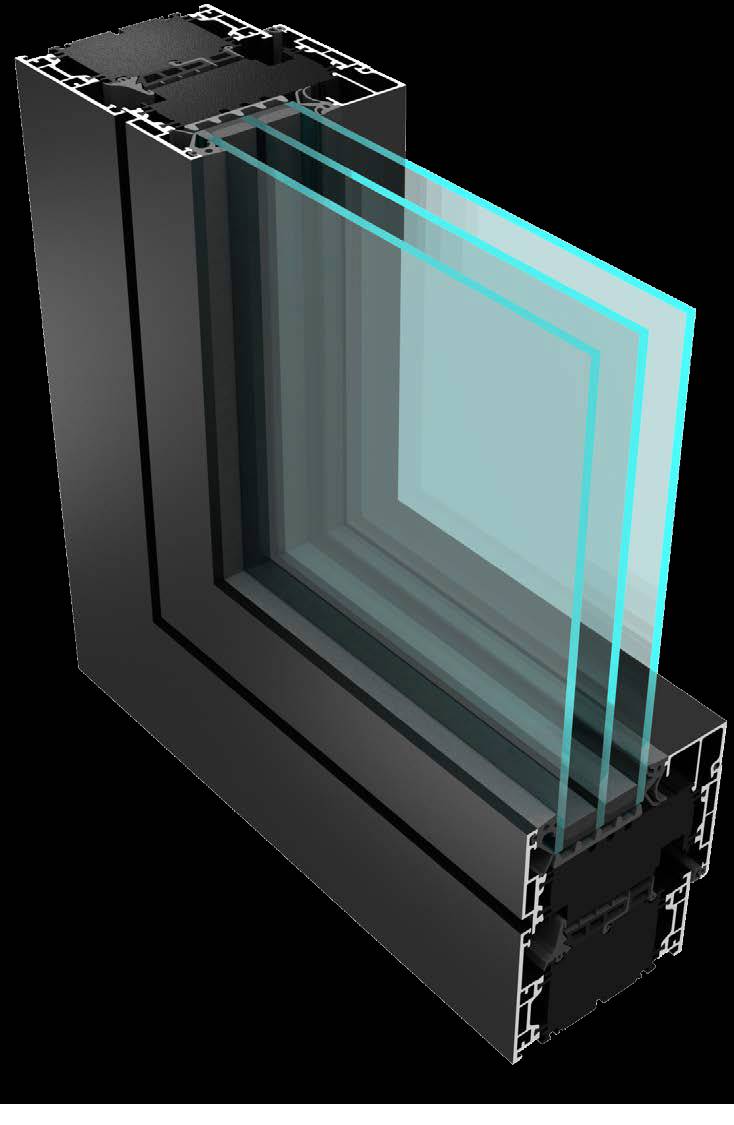

Thermally efficient aluminium tilt turn open in


Features and benefits:

  • U-values as low as 0.66 W/m²K.
  • Certified by Passivhaus Institute for cool temperature areas.
  • Future-proof and energy saving.
  • High thermal insulation with ground breaking technology.
  • 90 mm deep outer frames.
  • Requires minimal care and maintenance.


Accreditations:

Passivhaus Certified.

General information

Color

Grey

Black

White

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Guidance for specification option:

  • Aluminium extrusions.
  • Assembly Sealants.
  • Fixing Brackets.
  • Fixing Screws.
  • Inner Gasket.
  • Outer Gasket.
  • Thermal Break.
  • Weatherseals.

30 year

Guidance for specification option:

  • Anodized finish.

25 year

Guidance for specification option:

  • Powder-coated (matt).

Other

Guidance for specification option:

  • Paint joint / seal extrusions - warranty to be agreed.

Uniclass

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/25 Aluminium windows

L10/330 Aluminium windows

Specification data - Aluminium window units

Dimensions and configurations

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Product performance

-

Weather performance

-

Air permeability

4.

Watertightness

9A.

Resistance to wind load

C5 / B5.

Safety

-

Security level

RC 2.

Environmental

-

Acoustic performance rating

46 (-1; -4) dB (maximum).

Thermal

-

Whole window U-value

0.66 W/m²K.

Frame

-

Finish as delivered

-

Coating

Guidance for specification option:

Consult manufacturer and insert requirements.

Colour

Guidance for specification option:

Consult manufacturer and insert requirements.

Glazing or infill

-

Requirements

-

Manufacturer guidance

Glazing thickness options: 29–73 mm.

Hardware

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Fixing features

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Aluminium 100% recyclable at end of life

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

Literature

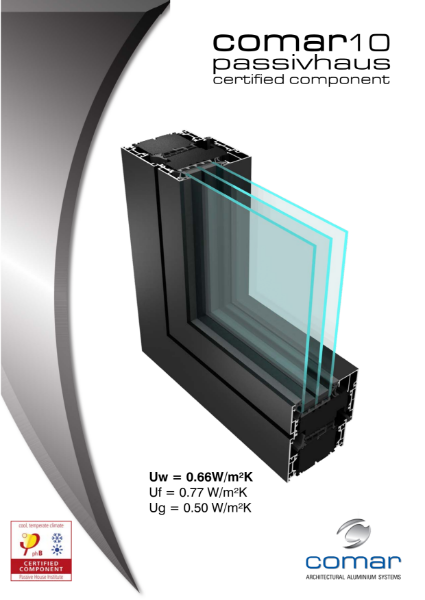

Comar 10 Brochure
