ColourX® is Gx Glass' back painted flat glass range - contemporary, durable and stylish.

Jump to:
+44 (0)1233 642220 gxglass.com/
Description

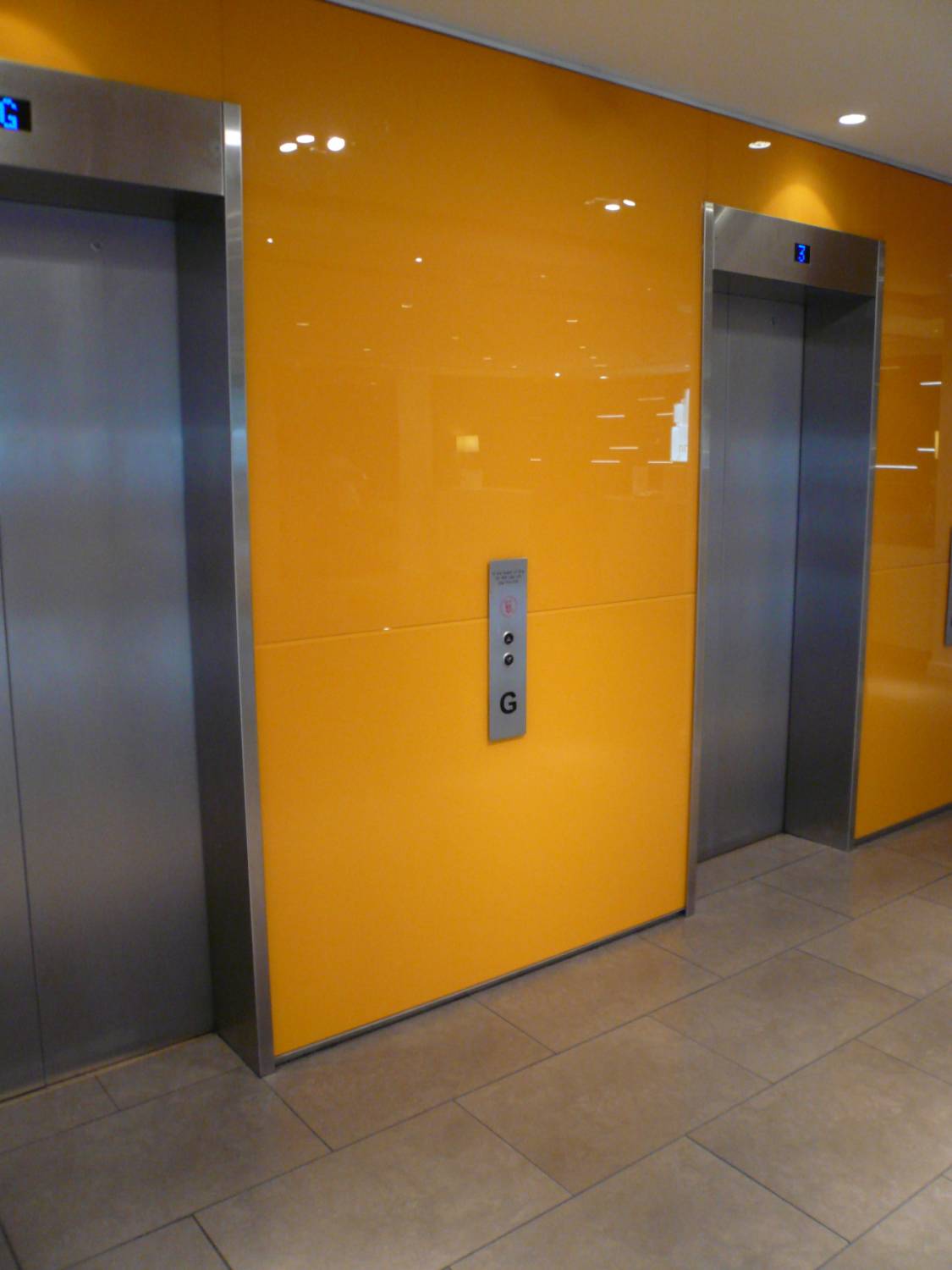

ColourX® is Gx Glass' backpainted flat glass range - contemporary, durable and stylish, it provides a bespoke design solution perfectly suited for commercial, contract and domestic interior glass applications, from wall cladding to splash backs to furniture tops.

ColourX-S is a standard range of 38 gloss colours and ColourX-NS provides the flexibility to choose your own gloss colour from established colour systems or utilize Gx Glass' colour scanning technology to match a specific colour.

ColourX paints are water based, making the range environmentally friendly with very low VOC levels and being fully recyclable at the end of its life. The paint has been extensively tested for both adhesion and longevity and ColourX comes with a one year warranty for commercial and contract projects when installed by Gx Glass.

ColourX can be manufactured with cut outs and holes and be CNC or water jet shaped to drawings or rigid templates (subject to manufacturing tolerances).

Gx Glass produces glass to British and European standards strength and flexibility in accordance with BS EN 12150 and safety up to BS EN 12600 Class 1.

General information

Size

Finish

Standard, metallic, sparkle

Color

Available in multiple colours

Features

Can include cut outs, holes and be CNC or water jet shaped. Can be produced on 4 mm, 8 mm, 10 mm, 12 mm, 15 mm and 19 mm glass

Material

Glass

Shape

Rectangle

WarrantyDescription

Two year warranty on discolouration or delamination for commercial and contract projects when installed by Gx Glass

Uniclass 2015

Pr_25_71_33_88 Thermally toughened glass sheetsPrimary

CAWS

K13/160 Proprietary

L40/530 Internal tape glazing

L40/90 Internal tape glazing

Specification data - Thermally toughened glass sheets

Product Reference

ColourX® Backpainted Glass

Processing

Annealed

Toughened

Standard.

Size

Insert requirement.

Type

Float

Slight green hue.

Low iron

Standard.

Thickness

4 mm

10 kg/m².

6 mm

Standard, 15 kg/m².

8 mm

20 kg/m².

10 mm

25 kg/m².

12 mm

30 kg/m².

15 mm

37.5 kg/m², not available in black.

19 mm

47.5 kg/m², not available in black.

Colour

ColourX-S

Insert requirement.

ColourX-NS

Insert requirement.

Edges

Polished with painted edge and back arris

Standard.

Polished with painted back arris only

Clear edge and back arris

For glass tops and furniture.

Standard product features

Backing:

Protective backing.

Product Options

Size:

  • Minimum: Annealed: 50 x 50 mm (smaller sizes are available on request for infills which are hand polished); Toughened: 100 x 220 mm.
  • Maximum: Annealed: 1700 x 3150 mm, Toughened: 1730 x 3150 mm.

Colour:

  • ColourX-S: Available in 38 colours.
  • ColourX-NS: Established colour systems such as RAL, NCS, BS, Farrow & Ball, Dulux as well as bespoke colour match using our colour scanning system.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 5 2.1
Revit
- 5 2.1
Download now from NBS National BIM Library
