Verified by manufacturer 2 months ago

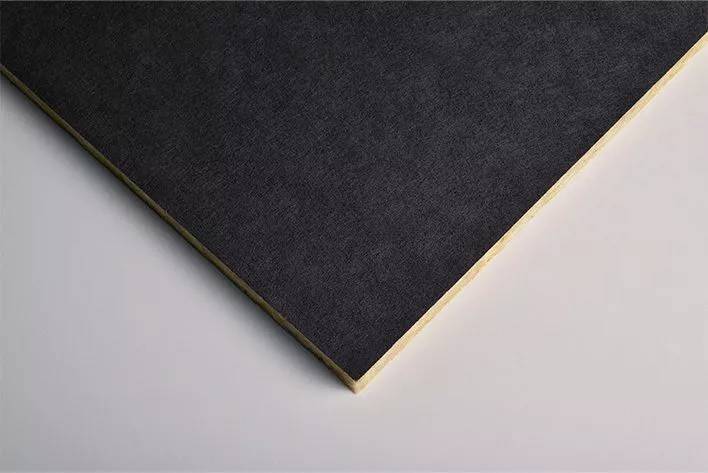

Suspended ceiling system with dark (black) lay-in mineral ceiling tiles with excellent acoustical absorption.
Suspended ceilings; particularly suitable for cinemas, theatres and cafeterias.
Suspended ceiling system with dark (black) lay-in mineral ceiling tiles with excellent acoustical absorption.
Combined with the Gridline 24 black grid, the system is suitable for cinema applications or other dark spaces.
Features and benefits:
Tiles:
Color | Black Guidance for specification option: Tiles. |
Material | Mineral fibre |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | 15 mm |
Warranty description | 15 year Guidance for specification option: Product guarantee. 30 year Guidance for specification option: System guarantee. |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/105 Suspended ceiling system K40/115 Unit/ modular suspended ceiling system |
Product range |
System performance | Guidance for specification option: Insert requirements. |
Ceiling support | Gridline 24 joggled/butt cut, Black RAL 9005.Guidance for specification option: Prelude 24 XL² Cross Tees are designed to work with the Prelude 24, a 24 mm exposed grid system for suspended ceilings. These cross tees come with a Superlock clip for secure connections to main runners, providing better alignment for easier ceiling installation and easy disconnection when access to the ceiling soffit is required. Baked polyester paint finish. |
Support fasteners | Guidance for specification option: Insert requirements to suit substrate. |
Ceiling units | 600 x 600 x 15 mm board edge mineral tiles in Black (2695DBK).600 x 1200 x 15 mm board edge mineral tiles in Black (2696MBK).Manufacturer guidance
|
Barriers in ceiling void | |
Fire barriers | Guidance for specification option: Consult manufacturer for options and insert requirements or omit. |
Acoustic barriers | Guidance for specification option: Consult manufacturer for options and insert requirements or omit. |
Plenum barriers | Guidance for specification option: Consult manufacturer for options and insert requirements or omit. |
System accessories | Guidance for specification option: Consult manufacturer for options and insert requirements or omit. |
Weight | Infill units: 1.2 kg/m². |
Reaction to fire | To EN 13501-1: Euroclass, A1. |
RelativeHumidity | Infill units: 95%. |
Sound absorption | Infill units: αw = 1.00; Class A. |
Noise reduction coefficient | Infill units: 0.95. |
Weighted sound reduction index, Rw | Infill units: 7 dB. |
Formaldehyde emissions | Infill units: To EN 13964, formaldehyde emission level E1 = Best test result possible. |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % Guidance for specification option: Infill units only. |
