Colonnade Square and Rectangular Rain Water Pipe with Cast Collars
Description

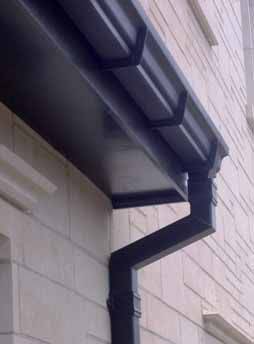

Pressed aluminium square and rectangular pipework available in a range of lengths and various fittings, mill finished or polyester powder coated.

General information

Size

76 mm square

76 x 101 mm

101 mm square

As drawing ___

Specification data

Product Reference

Colonnade Square and Rectangular Rain Water Pipe with Cast Collars

Type

Flush joint

Secret fix

Size

76 mm square

76 x 101 mm

101 mm square

As drawing ___

Finish

-

FinishType

Mill

Polyester powder coating

Fittings

Not required

As drawing ___

Standard product features

Colonnade downpipes are manufactured from aluminium alloy 6060 T4 to BS 1474. The products comply with or exceed all relevant standards.

Swan necks and `Y` branches are 112.5º as standard, alternative angles can be manufactured to order. Non-standard items such as drain offsets and pipe adaptors can be supplied.

Product Options

System type:

  • Flush joint.
  • Secret fix.

Note:

  • If cast collars are required non-eared, replace suffix `CE` with suffix `CC` and vice-versa.

Size:

76 mm square:

  • 3SDP0.5CE - 0.5 m long.
  • 3SDP1CE - 1 m long.
  • 3SDP1.5CE -1.5 m long.
  • 3SDP2CE - 2 m long.
  • 3SDP2.5CE - 2.5 m long.
  • 3SDP3CE - 3 m long.

76 x 101 mm:

  • 43DP0.5CE - 0.5 m long.
  • 43DP1CE - 1 m long.
  • 43DP1.5CE - 1.5 m long.
  • 43DP2CE - 2 m long.
  • 43DP2.5CE - 2.5 m long.
  • 43DP3CE - 3 m long.

101 mm square:

  • 4SDP0.5CE - 0.5 m long.
  • 4SDP1CE - 1 m long.
  • 4SDP1.5CE - 1.5 m long.
  • 4SDP2CE - 2 m long.
  • 4SDP2.5CE - 2.5 m long.
  • 4SDP3CE - 3 m long.

Bends:

76 mm square:

  • 3SB_CC - 92.5º/ 112.5º/ 135º.
  • 3SBN_CC - non-standard.

76 x 101 mm:

  • 43B_CC - 92.5º/ 112.5º/ 135º.
  • 43BN_CC - non-standard.

101 mm square:

  • 4SB_CC - 92.5º/ 112.5º/ 135º.
  • 4SBN_CC - non-standard.

`Y` Branches:

76 mm square:

  • 3SY_CE Single - 92.5º/ 112.5º/ 135º.
  • 3SYNCE Single_ - non-standard.
  • 3SYD_CE Double - 92.5º/ 112.5º/ 135º.
  • 3SYDNCE Double_ - non-standard.

76 x 101 mm:

  • 43SY_CE Single - 92.5º/ 112.5º/ 135º.
  • 43SYNCE Single_ - non-standard.
  • 43YD_CE Double - 92.5º/ 112.5º/ 135º.
  • 43YDNCE Double_ - non-standard.

101 x 101 mm:

  • 4SY_CE Single - 92.5º/ 112.5º/ 135º.
  • 4SYNCE Single_ - non-standard.
  • 4SYD_CE Double - 92.5º/ 112.5º/ 135º.
  • 4SYDNCE Double_ - non-standard.

Shoes:

  • 3SSCE - 76 mm square.
  • 43SCE - 76 x 101 mm.
  • 4SSCE - 101 mm square.

Access pipes (300 mm long):

  • 3SAPPCE - 76 mm square.
  • 43APPCE - 76 x 101 mm.
  • 4SAPPCE - 101 mm square.

Access plates:

  • 3SAP - 76 mm square.
  • 43AP - 76 x 101 mm.
  • 4SAP - 101 mm square.

Swan necks:

76 mm square:

  • 3SSN_CC - 63–100 mm.
  • 3SSN_CC - 150–400 mm.
  • 3SSN_CC - 450–750 mm.
  • 3SSN_CC - 800–1000 mm.
  • 3SSNNCC - Non-standard.

76 x 101 mm:

  • 43SN_CC - 63–100 mm.
  • 43SN_CC - 150–400 mm.
  • 43SN_CC - 450–750 mm.
  • 43SN_CC - 800–1000 mm.
  • 43SNNCC - Non-standard.

101 mm square:

  • 4SSN_CC - 63–100 mm.
  • 4SSN_CC - 150–400 mm.
  • 4SSN_CC - 450–750 mm.
  • 4SSN_CC - 800–1000 mm.
  • 4SSNNCC - Non-standard.

Cast Collars:

76 mm square:

  • 3SCCE - eared.
  • 3SCC - non-eared.
  • 3SCN - non-standard.

76 x 101 mm:

  • 43CCE - eared.
  • 43CC - non-eared.
  • 43CN - non-standard.

101 mm square:

  • 4SCCE - eared.
  • 4SCC - non-eared.
  • 4SCN - non-standard.
