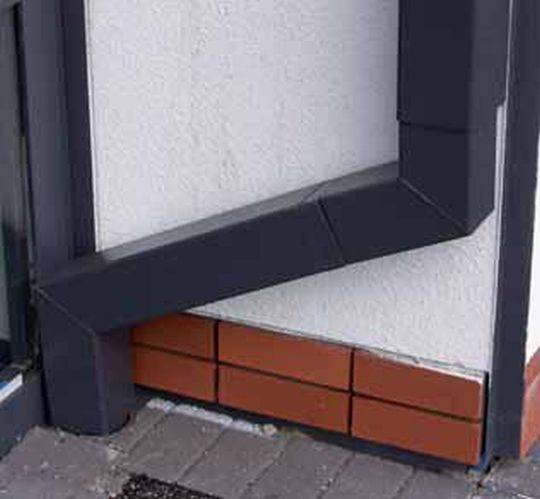

Aluminium security rain water pipes.
Pressed aluminium square and round pipework, designed to provide secure rainwater downpipes, available in a range of lengths and various fittings, mill finished or polyester powder coated.
| Size | 76 mm diameter76 mm square101 mm squareAs drawing ___ |
| Uniclass 2015 |
| Product Reference | Colonnade Security Pipe Round and Square |
| Size | 76 mm diameter76 mm square101 mm squareAs drawing ___ |
| Finish | - |
| FinishType | MillPolyester powder coating |
| Fittings | Not requiredAs drawing ___ |
| Standard product features | Colonnade downpipes are manufactured from aluminium alloy 6060 T4 to BS 1474. The products comply with or exceed all relevant standards. Swan necks and `Y` branches are 112.5º as standard, alternative angles can be manufactured to order although, in certain situations it may be preferable for swan-necks to be standard flush joint type. Non-standard items such as drain offsets and pipe adaptors can be supplied. |
| Product Options | Size: 76 mm diameter:
76 mm square:
101 mm square:
Bends: 76 mm diameter:
76 mm square:
101 mm square:
`Y` Branches: 76 mm diameter:
76 mm square:
101 mm square :
Access pipes (300 mm long):
Access plates:
Swan necks: 76 mm diameter:
76 mm square:
101 mm square:
Drain offsets:
Drain adaptors:
|
