Description

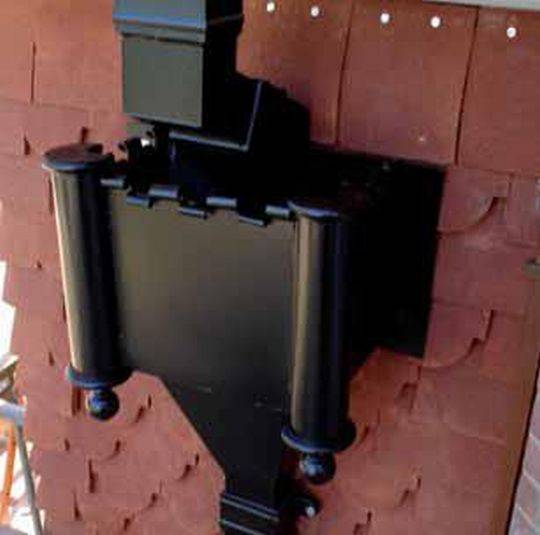

Pressed aluminium hopper heads to suit round, rectangular and square pipework, available in a range of profiles and in mill finish or polyester powder coated. Additionally the company can offer a range of roses and embellishments to decorate hopper heads where required.

General information
Finish

Mill

Polyester powder coating

Uniclass 2015 Aluminium rainwater pipes and fittings (Pr_65_52_03_04)
Specification data
Product Reference

Colonnade Pressed Aluminium Hopper Heads

Type

As drawing ___

Finish

Mill

Polyester powder coating

Cast aluminium motifs

Not required

As drawing ___

Standard product features

Colonnade products are manufactured from aluminium alloy 6060 T4 to BS 1474. The products comply with or exceed all relevant standards. Non-standard items can be supplied.

Product Options

Type:

Apollo:

  • HAPOL2R - 63 mm diameter.
  • HAPOL3R - 76 mm diameter.
  • HAPOL4R - 101 mm diameter.
  • HAPOL2S - 63 mm square.
  • HAPOL3S - 76 mm square.
  • HAPOL4S - 101 mm square.
  • HAPOL43 - 101 x 76 mm rectangular.

Juno:

  • HJUNO2R - 63 mm diameter.
  • HJUNO3R - 76 mm diameter.
  • HJUNO4R - 101 mm diameter.
  • HJUNO2S - 63 mm square.
  • HJUNO3S - 76 mm square.
  • HJUNO4S - 101 mm square.
  • HJUNO43 - 101 x 76 mm rectangular.

Minerva (corner):

  • HMINE2R - 63 mm diameter.
  • HMINE3R - 76 mm diameter.
  • HMINE4R - 101 mm diameter.
  • HMINE2S - 63 mm square.
  • HMINE3S - 76 mm square.
  • HMINE4S - 101 mm square.
  • HMINE43 - 101 x 76 mm rectangular.

Neptune:

  • HNEPT2R - 63 mm diameter.
  • HNEPT3R - 76 mm diameter.
  • HNEPT4R - 101 mm diameter.
  • HNEPT2S - 63 mm square.
  • HNEPT3S - 76 mm square.
  • HNEPT4S - 101 mm square.
  • HNEPT43 - 101 x 76 mm rectangular.

Saturn (small):

  • HSATS2R - 63 mm diameter.
  • HSATS3R - 76 mm diameter.
  • HSATS4R - 101 mm diameter.
  • HSATS2S - 63 mm square.
  • HSATS3S - 76 mm square.
  • HSATS4S - 101 mm square.
  • HSATS43 - 101 x 76 mm rectangular.

Saturn (large):

  • HSATL2R - 63 mm diameter.
  • HSATL3R - 76 mm diameter.
  • HSATL4R - 101 mm diameter.
  • HSATL2S - 63 mm square.
  • HSATL3S - 76 mm square.
  • HSATL4S - 101 mm square.
  • HSATL43 - 101 x 76 mm rectangular.

Faunas:

  • HFAUN2R - 63 mm diameter.
  • HFAUN3R - 76 mm diameter.
  • HFAUN4R - 101 mm diameter.
  • HFAUN2S - 63 mm square.
  • HFAUN3S - 76 mm square.
  • HFAUN4S - 101 mm square.
  • HFAUN43 - 101 x 76 mm rectangular.

Lares:

  • HLARE2R - 63 mm diameter.
  • HLARE3R - 76 mm diameter.
  • HLARE4R - 101 mm diameter.
  • HLARE2S - 63 mm square.
  • HLARE3S - 76 mm square.
  • HLARE4S - 101 mm square.
  • HLARE43 - 101 x 76 mm rectangular.

Numina (corner):

  • HNUMI2R - 63 mm diameter.
  • HNUMI3R - 76 mm diameter.
  • HNUMI4R - 101 mm diameter.
  • HNUMI2S - 63 mm square.
  • HNUMI3S - 76 mm square.
  • HNUMI4S - 101 mm square.
  • HNUMI43 - 101 x 76 mm rectangular.

Mercury:

  • HMERC2R - 63 mm diameter.
  • HMERC3R - 76 mm diameter.
  • HMERC4R - 101 mm diameter.
  • HMERC2S - 63 mm square.
  • HMERC3S - 76 mm square.
  • HMERC4S - 101 mm square.
  • HMERC43 - 101 x 76 mm rectangular.

Venus:

  • HVENU2R - 63 mm diameter.
  • HVENU3R - 76 mm diameter.
  • HVENU4R - 101 mm diameter.
  • HVENU2S - 63 mm square.
  • HVENU3S - 76 mm square.
  • HVENU4S - 101 mm square.
  • HVENU43 - 101 x 76 mm rectangular.

Diana:

  • HDIAN2R - 63 mm diameter.
  • HDIAN3R - 76 mm diameter.
  • HDIAN4R - 101 mm diameter.
  • HDIAN2S - 63 mm square.
  • HDIAN3S - 76 mm square.
  • HDIAN4S - 101 mm square.
  • HDIAN43 - 101 x 76 mm rectangular.

Finish:

  • Mill.
  • Polyester powder coating.

Cast aluminium motifs:

  • CBR - Britannia rose, 178 mm.
  • CFDL - Fleur de Lys, 48 mm.
  • CFEA - Feathers, 170 mm.
  • CLH - Lions Head, 80 mm.
  • CMANS - Mansion Lug, 150 mm.
  • CNRL - Northampton rose, 95 mm.
  • CNRS - Northampton rose, 70 mm.
  • CSTER - Sterling Lug, 95 mm.
  • CTRL - Tudor rose, 63 mm.
  • CTRM - Tudor rose, 51 mm.
  • CTRS - Tudor rose, 38 mm.
  • CACOR - Acorn Lug, 130 mm.
  • CWARW - Warwick Lug, 120 mm.
  • CWIND - Windsor Lug, 100 mm.
  • CYRL - Yorkshire rose, 114 mm.
  • CYRM - Yorkshire rose, 89 mm.
  • CYRS - Yorkshire rose, 35 mm.
