Description

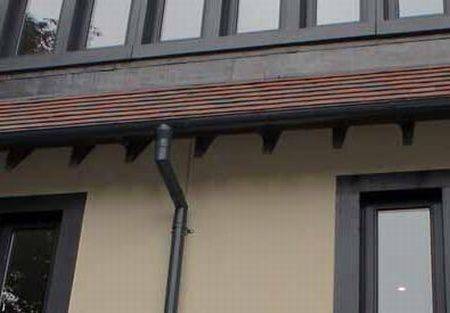

Pressed aluminium circular pipework available in a range of lengths and various fittings, mill finished or polyester powder coated.

General information
Size

63 mm

75 mm

101 mm

150 mm

As drawing ___

Uniclass 2015
Pr_65_52_03_04 Aluminium rainwater pipes and fittingsPrimary
Specification data - Aluminium rainwater pipes and fittings
Product Reference

Colonnade Circular Rain Water Pipe with Swaged Collars

Type

Flush joint

Secret fix

Size

63 mm

75 mm

101 mm

150 mm

As drawing ___

Finish -
FinishType

Mill

Polyester powder coating

Fittings

Not required

As drawing ___

Standard product features

Colonnade downpipes are manufactured from aluminium alloy 6060 T4 to BS 1474. The products comply with or exceed all relevant standards.

Swan necks and `Y` branches are 112.5º as standard, alternative angles can be manufactured to order. Non-standard items such as drain offsets and pipe adaptors can be supplied.

Product Options

System type:

  • Flush joint.
  • Secret fix.

Size:

63 mm diameter:

  • 2RDP0.5 - 0.5 m long.
  • 2RDP1 - 1 m long.
  • 2RDP1.5 - 1.5 m long.
  • 2RDP2 - 2 m long.
  • 2RDP2.5 - 2.5 m long.
  • 2RDP3 - 3 m long.

76 mm diameter:

  • 3RDP0.5 - 0.5 m long.
  • 3RDP1 - 1 m long.
  • 3RDP1.5 - 1.5 m long.
  • 3RDP2 - 2 m long.
  • 3RDP2.5 - 2.5 m long.
  • 3RDP3 - 3 m long.

101 mm diameter:

  • 4RDP0.5 - 0.5 m long.
  • 4RDP1 - 1 m long.
  • 4RDP1.5 - 1.5 m long.
  • 4RDP2 - 2 m long.
  • 4RDP2.5 - 2.5 m long.
  • 4RDP3 - 3 m long.

150 mm diameter:

  • 6RDP0.5 - 0.5 m long.
  • 6RDP1 - 1 m long.
  • 6RDP1.5 - 1.5 m long.
  • 6RDP2 - 2 m long.
  • 6RDP2.5 - 2.5 m long.
  • 6RDP3 - 3 m long.

Bends:

63 mm diameter:

  • 2RB - 92.5º/ 112.5º/ 135º.
  • 2RBN_ - non-standard.

76 mm diameter:

  • 3RB - 92.5º/ 112.5º/ 135º.
  • 3RBN_ - non-standard.

101 mm diameter:

  • 4RB - 92.5º/ 112.5º/ 135º.
  • 4RBN_ - non-standard.

150 mm diameter:

  • 6RB - 92.5º/ 112.5º/ 135º.
  • 6RBN_ - non-standard.

`Y` Branches:

63 mm diameter:

  • 2RY Single - 92.5º/ 112.5º/ 135º.
  • 2RYN Single_ - non-standard.
  • 2RYD Double - 92.5º/ 112.5º/ 135º.
  • 2RYDN Double_ - non-standard.

76 mm diameter:

  • 3RY Single - 92.5º/ 112.5º/ 135º.
  • 3RYN Single_ - non-standard.
  • 3RYD Double - 92.5º/ 112.5º/ 135º.
  • 3RYDN Double_ - non-standard.

101 mm diameter:

  • 4Y Single - 92.5º/ 112.5º/ 135º.
  • 4YN Single_ - non-standard.
  • 4YD Double - 92.5º/ 112.5º/ 135º.
  • 4YDN Double_ - non-standard.

150 diameter:

  • 6Y Single - 92.5º/ 112.5º/ 135º.
  • 6YN Single_ - non-standard.
  • 6YD Double - 92.5º/ 112.5º/ 135º.
  • 6YDN Double_ - non-standard.

Shoes:

  • 2RS - 63 mm diameter.
  • 3RS - 76 mm diameter.
  • 4RS - 101 mm diameter.
  • 6RS - 150 mm diameter.

Access pipe (300 mm long):

  • 2RAPP - 63 mm diameter.
  • 3RAPP - 76 mm diameter.
  • 4RAPP - 101 mm diameter.
  • 6RAPP - 150 mm diameter.

Access plate:

  • 2RAP - 63 mm diameter.
  • 3RAP - 76 mm diameter.
  • 4RAP - 101 mm diameter.
  • 6RAP - 150 mm diameter.

Swan necks:

63 mm diameter:

  • 2RSN - 63–100 mm.
  • 2RSN - 150–400 mm.
  • 2RSN - 450–750 mm.
  • 2RSN - 800–1000 mm.
  • 2RSNN - Non-standard.

76 mm diameter:

  • 3RSN - 63–100 mm.
  • 3RSN - 150–400 mm.
  • 3RSN - 450–750 mm.
  • 3RSN - 800–1000 mm.
  • 3RSNN - Non-standard.

101 mm diameter:

  • 4RSN - 63–100 mm.
  • 4RSN - 150–400 mm.
  • 4RSN - 450–750 mm.
  • 4RSN - 800–1000 mm.
  • 4RSNN - Non-standard.

150 mm diameter:

  • 6RSN - 63–100 mm.
  • 6RSN - 150–400 mm.
  • 6RSN - 450–750 mm.
  • 6RSN - 800–1000 mm.
  • 6RSNN - Non-standard.

Loose connectors:

  • 2RC - 63 mm.
  • 3RC - 76 mm.
  • 4RC - 101 mm.
  • 6RC - 150 mm.

Drain adaptors:

  • 2RDA - 63 mm.
  • 3RDA - 76 mm.
  • 4RDA - 101 mm.
  • 6RDA - 150 mm.
