Collaro Washbasins 4A3365
Verified by manufacturer 8 months ago
4A336501
4A336501

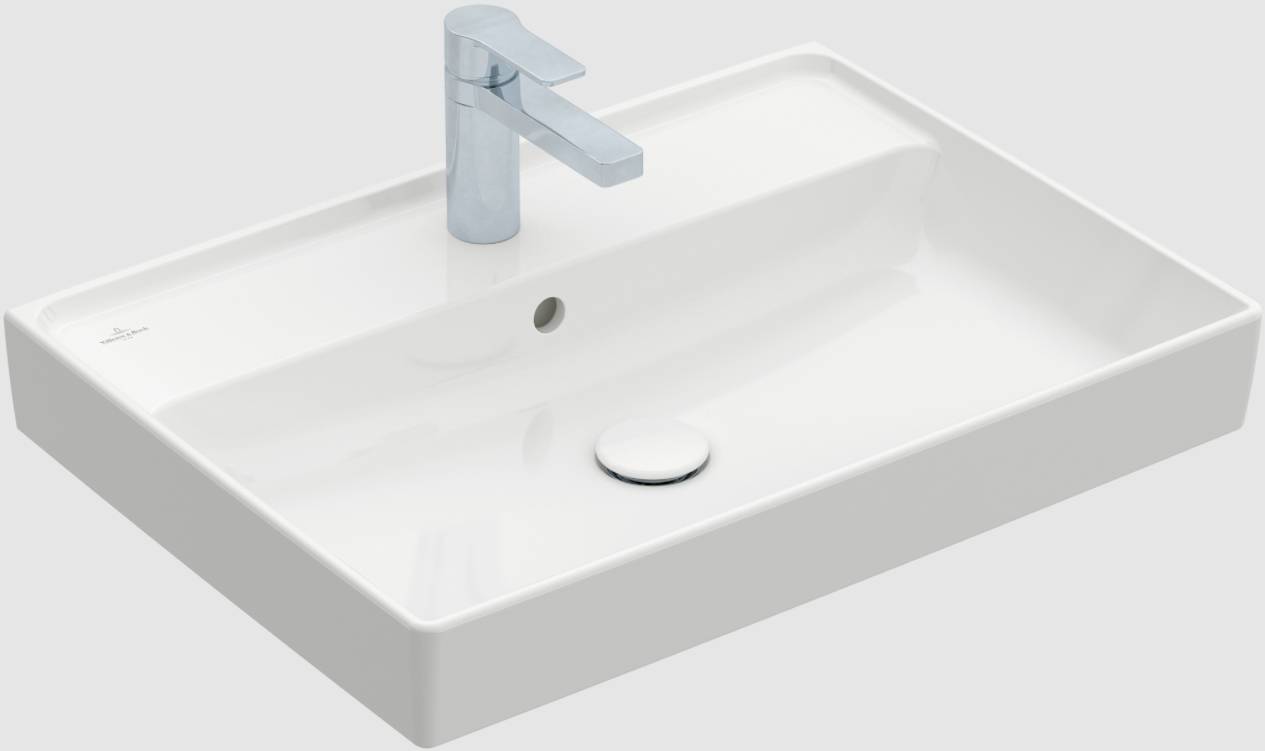

Rectangular washbasin.
Application
Wall mounted.
Description
Rectangular washbasin.
Features and benefits:
- Registered design.
- TitanCeram.
- Complies with EN 31 and EN 14688.
- Optionally available: Outlet valve with ceramic cover.
General information
Color | White |
Finish | Gloss Matt |
Material | Ceramic |
Shape | Rectangle |
Length | 650 mm |
Width | 470 mm |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Specification data - Wall-hung washbasins
Standard | To EN 31 and EN 14688. |
Form | Wall-hung wash basin. |
Connecting dimensions | To BS EN 31. |
Materials | |
Body | Sanitary ceramic. |
Finish and colour | White alpin, gloss. |
Size | 650 x 470 mm. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, centred.Guidance for specification option: Suitable for 3-hole tap fittings, central tap hole punched out. |
Overflow | Rear overflow hole.Guidance for specification option: With overflow. |
Waste | Bottom waste outlet. No chainstay hole. |
Integral accessories | Not required.Closable valve 6810 00.Easy Access siphon 9219 88.Cap (overflow cover) 7901 00.Push-to-open valve 8L03 34. |
Weight | 19.2 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 3Ds Max | - | 1 |
 ARCHICAD | - | 1 |
 Revit | - | 1 |
 OBJ | - | 1 |
 SketchUp | - | 1 |
