Coffin Bollard

Application

For use to provide a barrier against traffic, or in emergency service access areas.

Description

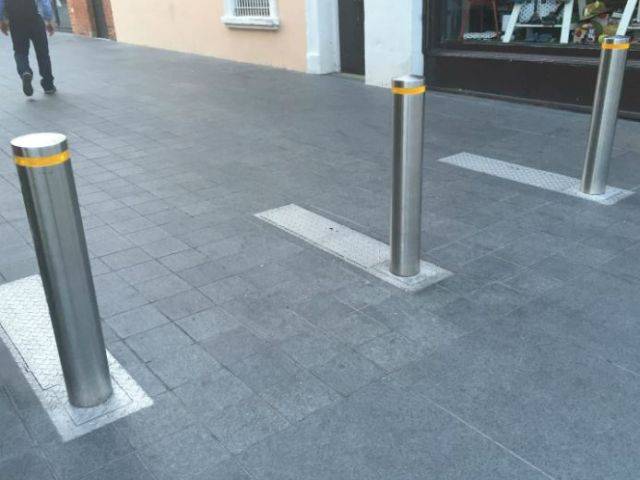

Stainless steel bollard with coffin. Used as an alternative to telescopic bollards where excavating to depths of up to 1200 mm is not achievable.

Features and benefits:

  • Only requires an excavation depth of approximately 200 mm.
  • Provides an effective barrier against traffic when in use; when not in use, the bollard will fold down - pivots easily, allowing the user to activate the bollard without any manual handling or safety issues.
  • Easy to maintain.
  • Has a drain point to reduce weathering effects.
  • Can be easily detached from coffin if required.
  • Coffin includes B125 chequer loading lid for slip resistance.

Applications:

For use to provide a barrier against traffic, or in emergency service access areas.

General information

Material

Stainless steel, grade 304 (1.4301)

Stainless steel, grade 316 (1.4401)

Finish

Bead blasted

Powder-coated

Insert colour requirement.

Satin 320 grit polish

Standard.

Satin finish

Features

Drain point to reduce weathering effects, maintenance free, can be used in emergency service access areas

Shape

Circular

Size

900 x 1073 x 225 mm

Uniclass 2015

Pr_20_76_08_82 Stainless steel bollardsPrimary

CAWS

Q50/190 Bollards

Q50/192 Collapsible/ Telescopic bollards

null Street furniture

Product range

Street Furniture / Bollards

Specification data - Stainless steel bollards

Product Reference

Kent Coffin Bollard - KCB 101/3

Material

Stainless steel, grade 304 (1.4301)

Stainless steel, grade 316 (1.4401)

Finish

Bead blasted

Powder-coated

Insert colour requirement.

Satin 320 grit polish

Standard.

Satin finish

Top

Dome

Flat

Sloped

Accessories/ Other requirements

Not required

15 mm, recessed reflective strip

Insert colour requirement.

15 mm, stick-on reflective strip

Insert colour requirement.

25 mm, recessed reflective strip

Insert colour requirement.

25 mm, stick-on reflective strip

Insert colour requirement.

Standard product features

Size:

- Bollard:

  • Height (above ground level): 900 mm.
  • Diameter: 101 mm.
  • Material thickness: 3.05 mm.

- Coffin:

  • Width: 225 mm.
  • Length: 1073 mm.
  • Depth: 174 mm.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.0
Revit

Revit 2017

1

2.0
Download now from NBS National BIM Library
