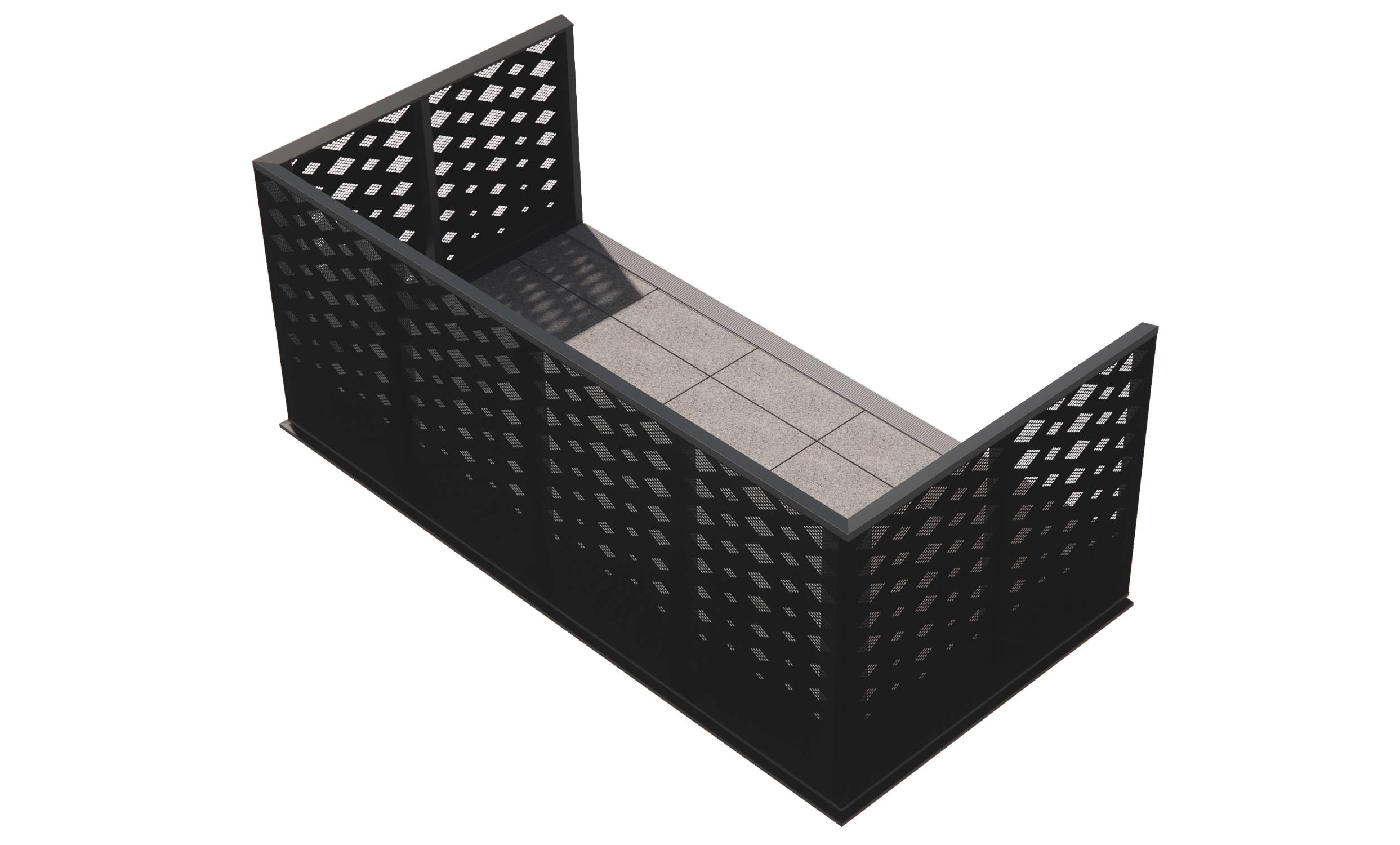

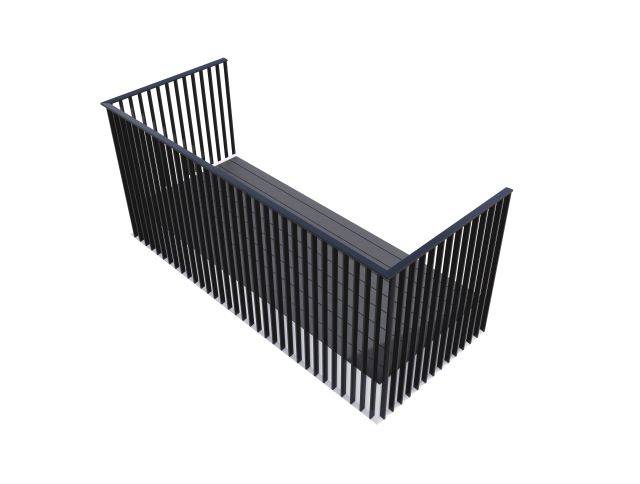

Cobalt PB Balcony System - Corner
Application

Suitable for external application.

Description

Full-face blade MMC balcony system, with no visual welding or exposed fixings, and only using non-combustible materials. Full modular design, BS8579 compliant, and Carbon Neutral.

Features and benefits:

  • Wide range of balustrade blade and handrail options.
  • Multiple colour combinations: fascia, balustrade and handrails can colour-coordinate or contrast, depending on the architectural choice.
  • Balustrade blades 45 x 15 mm.
  • 60 mm-wide, sloped handrail to improve safety.
  • Soffit panels are discreetly sloped to the balcony front for passive water management. Fully drained systems are available if required.
  • All parts are serviceable from the balcony surface.

Application:

Suitable for external application.

General information

Shape

Rectangular

Corner

Curved

Color

Standard and Non-Standard RAL, Anodised

Features

Wide range of balustrade blade and handrails, concealed fixings and no visual welding, multiple colour combinations – facia, balustrade and handrails can colour co-ordinate or contrast based on architectural choice, balustrade blades 45 x 15 mm, 60 mm wide and sloped internally handrail to improve safety, soffit panels installed level, with internal drainage. Water edge drained 30 mm from front edge, all parts are serviceable from the balcony surface

Finish

PPC, anodised

Material

Aluminium

Size

10000 x 2500 x 1150 mm

WarrantyDescription

15 years

Uniclass 2015

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems Enhanced data

Product Reference

Cobalt MF Balcony System

BS 8579 compliant.

Newels

-

Material

Variety of straight blades

Stylised blades

Accessories

Glass-reinforced concrete (GRC)

Uprights

45 x 15 mm

Rails

-

Handrails

60 mm

Maximum width, sloping internally to comply with BS 8579.

Fixing to parent structure

Fascia plate

Secured to balcony chassis (via patent pending) with safe side fixing on balcony flooring to remove any seen fixings and allowing for balustrade panels to be serviceable without the need for MEWPs.

Cast-in anchor

Span typically 2000 mm. A balcony system deflection limit of length/ 360. Maximum weight typically only 100 kg per m².

Shape

Rectangular

Corner

Curved

Flooring

None

Aluminium Decking

Natural Stone

Soffit

Panels

Environmental

-

Fire performance

Fully non-combustible

To A1 or A2-s1, d0 fire rating.

DurationUnit

60 years

Standard

ISO 7892

Standard product features

Colour:

Standard and non-standard RAL colours.

Features:

Aluminium prefabricated balcony system.

Finish:

  • PPC.
  • Anodised.

Material:

Recycled structural grade glass aluminium.

Size:

10 000 x 2500 x 300–500 mm – maximum overall length x width x height (fascia).

Warranty description:

15 years.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 1 2.1
IFC
- 1 2.1
Download now from NBS National BIM Library
