Clip-Top - PVC-u and Metallic PVC-u Tops
Verified by manufacturer 3 days ago

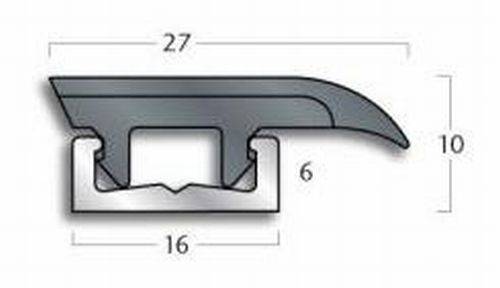

A two-piece, PVC-u flooring transition strip
Application
Suitable for use on floor transitions in heavy pedestrian and medium trolley traffic interior applications such as department stores, high street shops, hospitals, schools, hotels and offices etc.
Description
A two-piece, PVC-u flooring transition strip which allow design flexibility in commercial situations, featuring a range of profiles with PVC-u/Metallic PVC-u tops and aluminium bases.
Features and benefits:
- PVC-u/Metallic PVC-u tops and can be replaced, enabling the colour to be altered as part of a refurbishment programme, or a worn or damaged section to be replaced without renewing the base or disrupting the fitted floorcovering.
- A number of PVC-u/Metallic PVC-u tops and aluminium bases can be fabricated to radius shape, subject to approval of template or detailed drawing (showing radius details).
General information
Color | Black Blue Silver Brown |
Finish | Manufacturer guidanceTops: PVC-U, Metallic PVC-U. Bases: Aluminium |
Material | PVC-U Aluminium |
Shape | Rectangle |
Length | Bespoke Manufacturer guidance2.50m |
Uniclass | |
CAWS | M50/70 Edgings and cover strips M50/740 Edgings and cover strips |
Specification data - One-part floor transition strips
Material | Aluminium.Guidance for specification option: Mill finish. Base material. PVC-U.Guidance for specification option: PVC-u, except metallic PVC-u for TT25M and RT35M. |
Finish | Mill. |
Colour | Black.Guidance for specification option: For PVC-U only. Bluebell.Guidance for specification option: For PVC-U only. Brown.Guidance for specification option: For PVC-U only. Clay.Guidance for specification option: For PVC-U only. Dove.Guidance for specification option: For PVC-U only. Granite.Guidance for specification option: For PVC-U only. Burnt Almond.Guidance for specification option: For metallic PVC-U only Doubloon.Guidance for specification option: For metallic PVC-U only Platinum.Guidance for specification option: For metallic PVC-U only Silver.Guidance for specification option: For metallic PVC-U only Zinc.Guidance for specification option: For metallic PVC-U only |
Profile (top/ base) | TT35/AFT45. Guidance for specification option: Twin top, 35 mm top, 4.5/6 mm gauge. TT35/AFT15. Guidance for specification option: Twin top, 35 mm top, 6 mm gauge. TT35/DFT80. Guidance for specification option: Twin top, 35 mm top, 4.5 mm gauge. TT35/AFT17. Guidance for specification option: Twin top, 35 mm top, 9 mm gauge. TT35/AFT. Guidance for specification option: Twin top, 35 mm top, 7.5/9 mm gauge. |
Length | 2500 mm. |
Fixing | Mechanical and adhesive fix. Guidance for specification option: Consult manufacturer for further guidance. |
Sustainability data
Material | PVC-U Aluminium |
