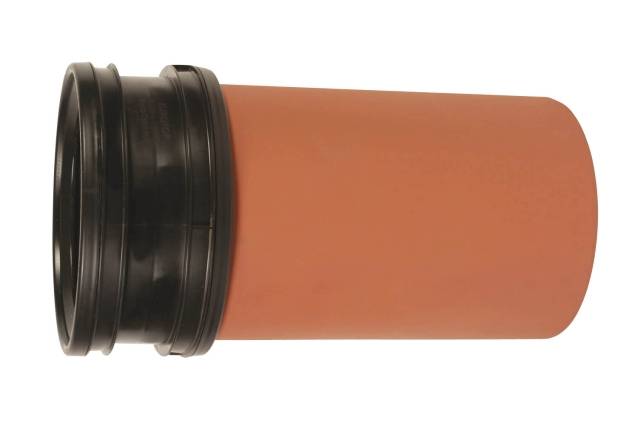

Clay SuperSleve 300

Description

A range of clay pipes and fittings suitable for foul and surface water drainage in adoptable, industrial, commercial and highway drainage applications.

CE marked and kitemarked to EN 295.

General information

Uniclass 2015

Pr_65_52_07_97 Vitrified clay plain wall below-ground drainage pipes and fittings for flexible jointingPrimary

CAWS

R12/11 Clay pipelines

R12/338 Pipes, bends and junctions – clay – rigid joints

Specification data - Vitrified clay plain wall below-ground drainage pipes and fittings for flexible jointing

Product Reference

Clay SuperSleve 300

Type

See 'Options'' below and insert requirement.

Product Options

Type:

  • SBR7 – Rest bend 90º, 300 mm diameter.
  • SBR7S – Rest bend 90º, 300 mm diameter.
  • SP7 – Plain ended pipe, 300 mm diameter. 2 m length.
  • SP7S – Single socketed pipe, 300 mm diameter. 2 m length.
  • SJ1/14S – Oblique junction with coupling 45º, 300 x 100 mm.
  • SJ1/14 – Plain ended oblique junction 45º, 300 x 100 mm.
  • SJ1/15S – Oblique junction with coupling 45º, 300 x 150 mm.
  • SJ1/15 – Plain ended oblique junction 45º, 300 x 150 mm.
  • SJ1/17D – Oblique junction with coupling 45º, 300 x 225 mm.
  • SJ1/17 – Plain ended oblique junction 45º, 300 x 225 mm.
  • SJ1/19D – Oblique junction with coupling 45º, 300 x 300 mm.
  • SJ1/19 – Plain ended oblique junction 45º, 300 x 300 mm.
  • ST4/3 – Taper pipe, 300–225 mm.
  • SJ3/14 – Plain ended square junction 90º, 300 x 100 mm.
  • SJ3/14S – Square junction with coupling 90º, 300 x 100 mm.
  • SJ3/15 – Plain ended square junction 90º, 300 x 150 mm.
  • SJ3/15S – Square junction with coupling 90º, 300 x 150 mm.
  • SJ3/17 – Plain ended square junction 90º, 300 x 225 mm.
  • SJ3/17D – Square junction with coupling 90º, 300 x 225 mm.
  • SJ3/19 – Plain ended square junction 90º, 300 x 300 mm.
  • SJ3/19D – Square junction with coupling 90º, 300 x 300 mm.
  • SP030/7 – Rocker pipe, 300 mm diameter, 0.3 m length.
  • SP030/7S – Single socket short length pipe, 300 mm diameter, 0.3 m length.
  • SP060/7 – Rocker pipe, 300 mm diameter, 0.6 m length.
  • SP060/7S – Single socket short length pipe, 300 mm diameter, 0.6 m length.
  • SP100/7 – Rocker pipe, 300 mm diameter, 1.0 m length.
  • SP100/7S – Single socket short length pipe, 300 mm diameter, 1.0 m length.
  • SA1/7 – Socket adaptor, 300 mm diameter.
  • SB1/7 – Plain ended bend 90º, 300 mm diameter.
  • SB1/7S – Single socket bend 90º, 300 mm diameter.
  • SC1/7 – Coupling with EPDM sealing rings, 300 mm diameter.
  • SB2/7 – Plain ended bend 45º, 300 mm diameter.
  • SB2/7S – Single socket bend 45º, 300 mm diameter.
  • SJS2/7 – Oblique saddle, 300 mm diameter.
  • SB3/7 – Plain ended bend 30º, 300 mm diameter.
  • SB3/7S – Single socket bend 30º, 300 mm diameter.
  • SC3/7 – Coupling with Nitrile sealing rings, 300 mm diameter.
  • SS3/7 – Clay stopper, 300 mm diameter.
  • SB4/7 – Plain ended bend 15º, 300 mm diameter.
  • SB4/7S – Single socket bend 15º, 300 mm diameter.
  • SJS5/7 – Square saddle, 300 mm diameter.
