Classic Pod - Louvered Roof Pergola
Verified by manufacturer 5 months ago

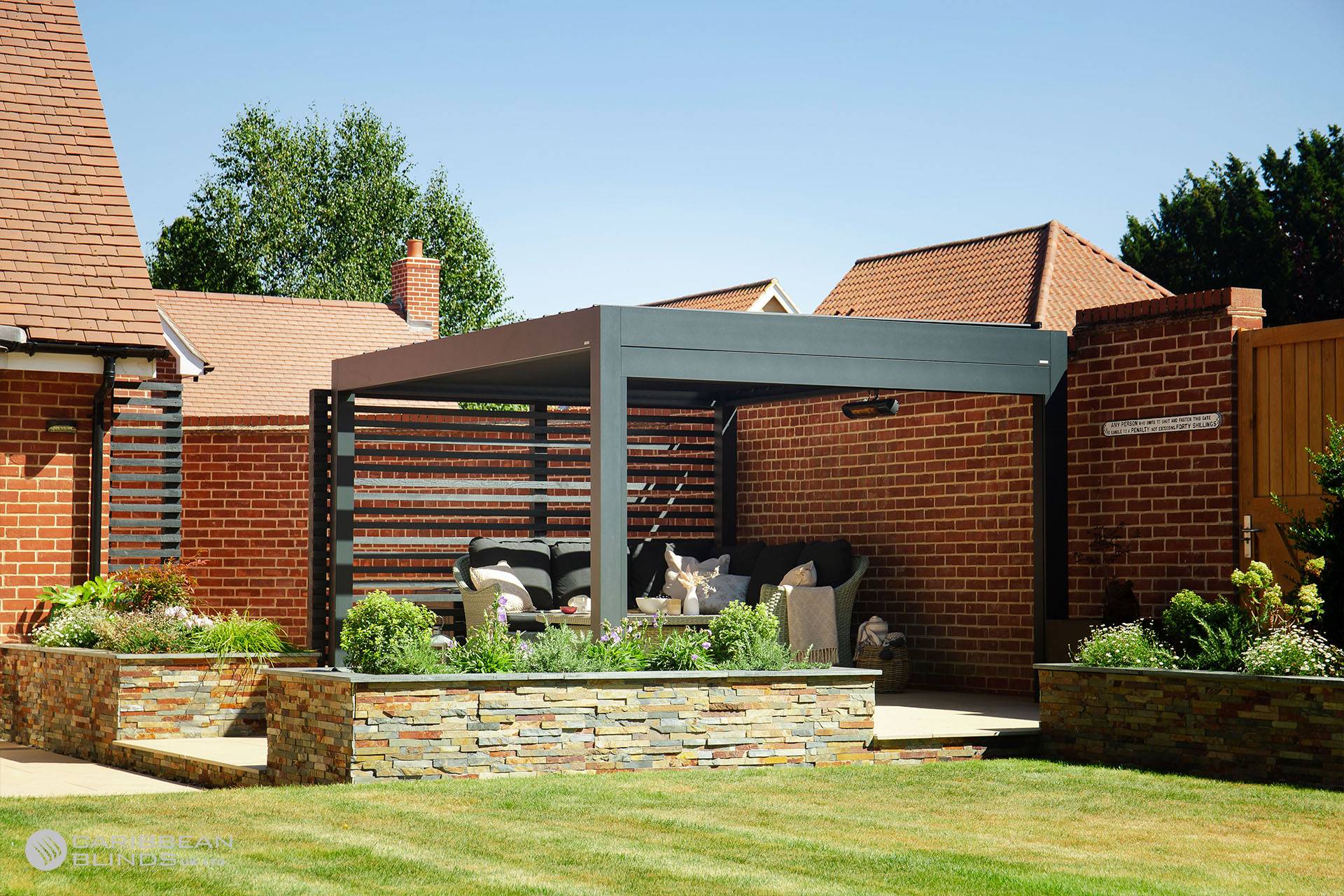

The Classic Pod is our most popular motorized louvered roof pergola for outdoor living spaces able to span upto 5.95m length x 4.5m width in a single unit, either as a freestanding or lean-to version.
Application
Suitable for residential and commercial applications including houses, restaurants, hotels, bars, schools, nurseries.
Description

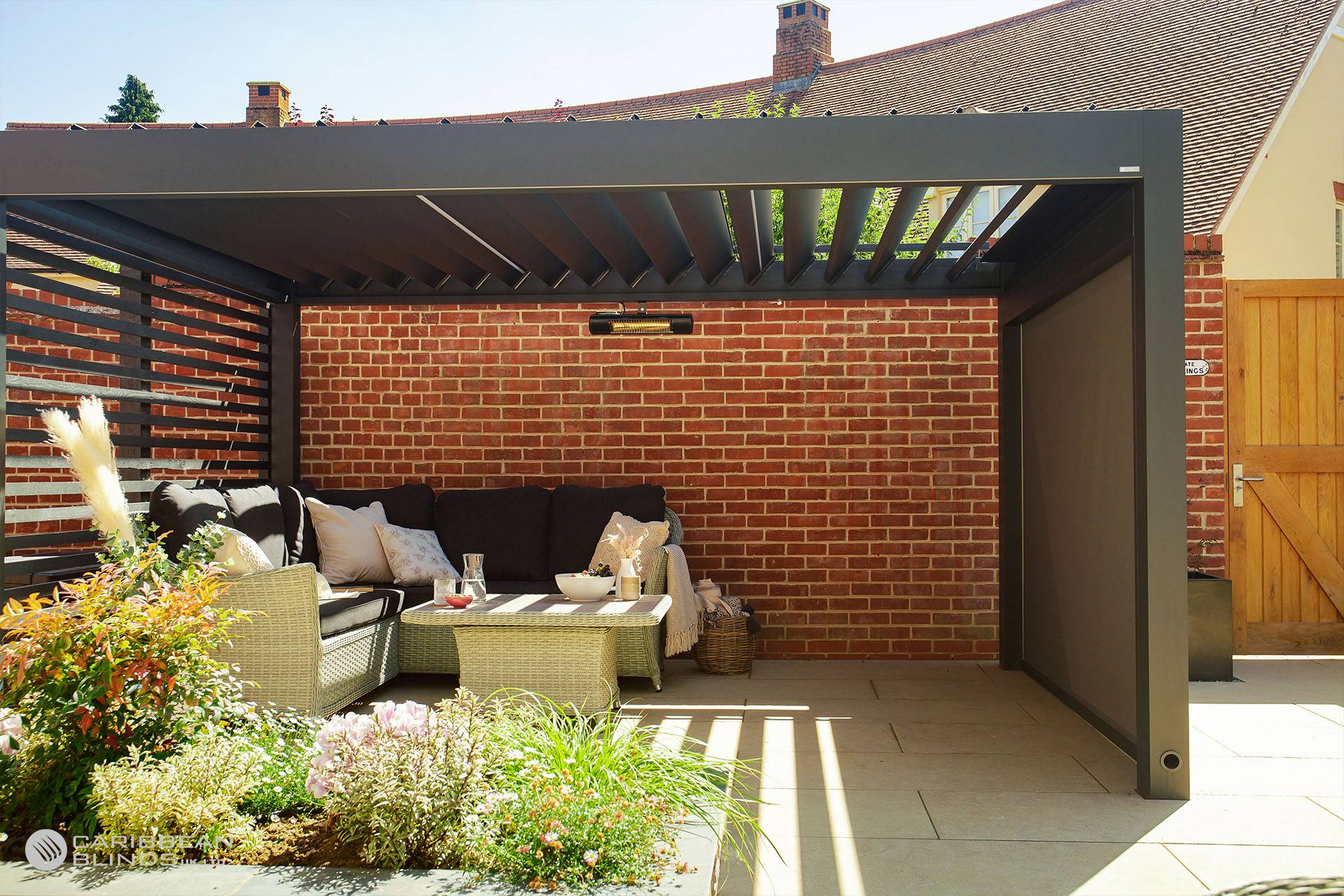

The Classic Outdoor Living Pod has a louvered roof offering essential cover to outdoor areas. The robust interlocking roof louvers form an entirely water, wind and snow tight covering when closed, with water drainage into the integral guttering system built within the cross beams. Rotating up to 150 degrees, the motorized louvers provide flexible shade, able to be stopped at any desired position.
Features and benefits:
- Rotating waterproof roof louvers up to 150 degrees.
- Streamline framework with no visible fixings.
- Integrated guttering system.
- Anthracite Grey RAL 7016 structured hardware finish.
- Motorized remote / app control.
- Optional windproof side screens.
- Freestanding and lean-to versions.
- Up to 5.95 m length x 4.5 m width.
General information
Color | Grey |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle Square |
Length | Bespoke Guidance for specification option: Up to 5.95m length |
Width | Bespoke Guidance for specification option: Up to 4.5m width |
Height | Bespoke Guidance for specification option: Up to 3m height |
Warranty description | Five year |
Uniclass | |
CAWS | B91/330 Canopy L10/680 Solar shading system N10/240 Blinds L10/59 Solar shading system |
Specification data - Open-sided shelters
Shelter description | Aluminium pergola with opening/closing louvered roof. |
Dimensions | |
Plan size | Guidance for specification option: Insert requirement, available up to 5.95 m x 4.5 m (l x w). |
Height | Guidance for specification option: Insert requirement, available up to 3m. |
Frame | |
Material | Extruded Aluminium.Guidance for specification option:
|
Finish | Powder-coated. |
Colour | Anthracite Grey RAL 7016ST. |
Roof covering | Aluminium louvres.Guidance for specification option: Rotatable through 150°. |
Integral services | Cabling for power, lighting and heating. |
Rainwater drainage | Integrated guttering system built within cross beams. |
Accessories | Not required.Motorized side screens (Twilight Comfort fabric).Louver LED lighting (3,500 k warm white).Perimeter LED lighting (3,500 k warm white).Infra-red heater (Bahama, 2kw).App control (Tahoma switch). |
Operation | Integrated radio controlled motor and remote control. Guidance for specification option: Somfy RTS, 240 v AC, power draw circa 1.1amps. |
Configuration | Freestanding - stand alone. Lean to - attached to property. |
Wind resistance | Roof: Beaufort 12 (73+ mph, hurricane force). Side screens: Beaufort 6 (30 mph, strong breeze). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Belgium |
Country of product manufacture | United Kingdom |
Recyclability | Aluminium is recyclable |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
CB - Classic Pod | General Arrangement & Mounting | Louvered Roof
