Description

Balustrade system which allows for various solutions due to an extensive range of accessories that complement the system.

Features and benefits:

  • Possibility of fixing over the slab or in front of the slab.
  • Minimum height of the railing is 900 mm.
  • Maximum dimensions between pilasters is 1000 mm.
  • Suitable for laminated glazing (4.4 or 5.5 mm) or panel glazing (8 or 10 mm).

General information

Uniclass 2015

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems

Product Reference

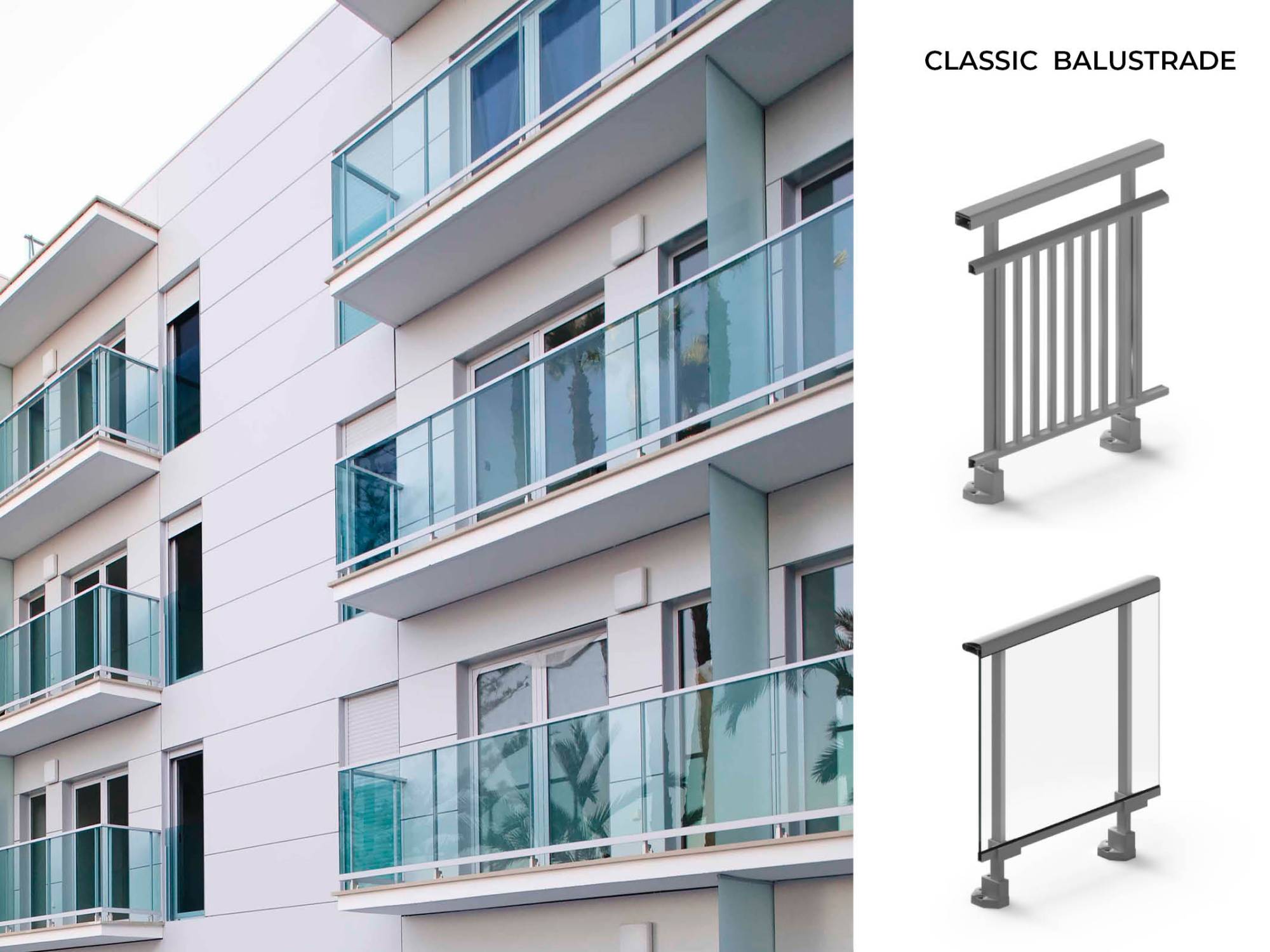

Classic Balustrade

Type

Bar balustrade

Bar balustrade with free top edge

Glazed balustrade

Insert requirements.

Glazed balustrade with free top edge

Insert requirements.

Size

-

Height

Insert requirement, minimum height of 900 mm.

Width

Insert requirement, maximum 1000 mm.

Handrail

Circular

66 mm diameter.

Elliptical

80 mm external perimeter.

Square

60 mm width.

Finish

-

FinishType

Anodized

Polyester powder coated

Insert requirement, wood effect, anti-bacterial and coloured (RAL, mottled and rough) coatings available.

Colour

Insert requirement or insert 'Not applicable' for Anodized.

Accessories

Insert requirement, contact manufacturer for information.

Standard product features

Testing:

  • Tested according to UNE 85.237:1991, UNE 85.238: 1991 and UNE 85.240: 1990.
  • Classification according to UNE 85.240: 1990: Class A - Excellent (based on 1100 mm x 2450 mm (h x w) and three pilasters).

Product Options

Type:

Suitable for laminated glazing (4.4 or 5.5 mm) or panel glazing (8 or 10 mm).
