Class A2 Fire Rated Decking Pedestal

Class A2 Fire Rated Decking Pedestal

Wallbarn Ltd

Wallbarn’s fully adjustable, non-combustible Class A2 pedestal is designed for waterproof balconies, terraces and flat roofs, and complies fully with draft British Standard BS 8579

Jump to:
+44 (0)20 8916 2222 www.wallbarn.com

Application

Class A terrace and balcony construction >18 metres.

Specially designed for high-rise balconies, terraces and flat roofs.

Description

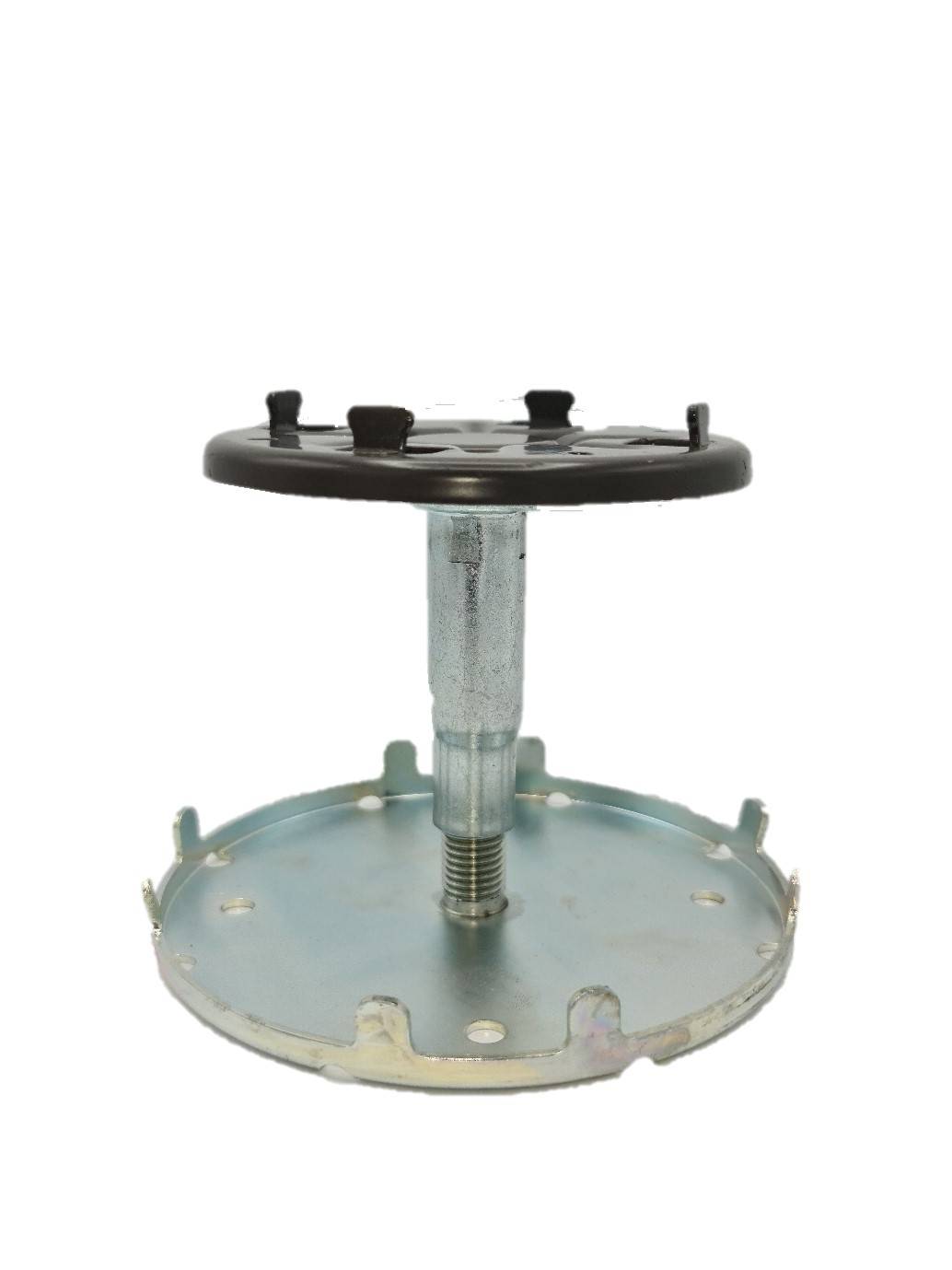

Fully adjustable, non-combustible Class A2 pedestal, designed for decking on Class A balconies, terraces and flat roofs, and complies fully with BS 8579.


Features and benefits:

  • Classified A2-s1,d0 in accordance with BS EN 13501-1:2018.
  • Complies to BS EN ISO 1716:2018.
  • Physically tested in accordance with procedure specified in BS EN 13823:2020.
  • Constructed from 2 mm-thick galvanized steel, specifically for exterior applications.
  • No plastic or rubber components.
  • Solid stem for high weight tolerance.
  • 1000 kg loading per pedestal.
  • Millimetre-precise height adjustment.
  • Bespoke headpiece.
  • Heights range from 25–430 mm.
  • Powder coated headpiece to prevent reaction between steel and aluminium - fire tested to Class A2,s1-d0.
  • Height can be adjusted when decking is in position using an adjustable spanner.
  • A limit switch is installed on the stem to prevent the pedestals from unwinding completely.
  • 150 mm diameter base plate protects against point loading.
  • Circular base plate ensures adequate weight distribution and proper stability.
  • Smooth underside of baseplate to prevent puncturing.
  • Drainage holes in base plate prevent water stagnation and rusting.
  • Fixing holes are located in the base plate for mechanical fixing if required.
  • Rounded profiles on base plate and headpiece - no sharp edges.
  • 15-year limited warranty.

General information

Color

Silver

Finish

Galvanized

Powder coated

Headpiece

Material

Steel

Shape

Circular

Size

25–32 mm

32–39 mm

39–46 mm

46–53 mm

53–70 mm

Show more

WarrantyDescription

15 years

Limited warranty (see Terms & Conditions of Supply) based on products being used for purposes stated by Wallbarn up to the amount of the invoice total.

Uniclass 2015

Pr_20_85_47_22 Decking and paving pedestalsPrimary

CAWS

Q50/25 Timber deck

E60/220 Roof deck

Q55/110 Deck

Specification data - Decking and paving pedestals Enhanced data

Pedestal type

Adjustable.

Headpiece connection type: Fixing-free connection to Wallbarn aluminium rail between lugs.

Grade

1000 kg.

Weight tolerance per unit, break point over 2000 kg.

Material

Galvanized steel, 2 mm thick.

Headpiece: Stainless steel, powder coated to RAL 7016.

Adjustment

25–32 mm.

32–39 mm.

39–46 mm.

46–53 mm.

53–70 mm.

70–100 mm.

100–140 mm.

140–220 mm.

220–300 mm.

300-350 mm.

350–430 mm.

Accessories

None.

Top headpiece for paving.

Aluminium rail.

Product Reference

Class A2-s1, d0 Fire Rated Decking Pedestal, standard headpiece

120 mm-diameter, self-levelling headpiece; 5% angle in all directions.

Class A2-s1, d0 Fire Rated Decking Pedestal with click-deck headpiece

Stainless steel click-deck headpiece for clip fastening to bespoke Wallbarn aluminium rail.

60 mm between lugs.

Coated with RAL 7016 powder coated paint.

Fire rating (to BS EN 13501)

Class A2-s1,d0 in accordance with EN ISO 13501-1:2018.

Tested in accordance with the procedure as specified in EN ISO 13823:2020.

Dimensions

Manufacturer's standard.

Head diameter:

120 mm.

Base plate diameter:

150 mm.

Stem diameter:

16 mm.


Headpiece:

  • Lug thickness: 2 mm.
  • Lug height: 8 mm.
  • Lug width (base): 10 mm.
  • Lug width (top): 14 mm.
  • Distance between lugs: 62 mm.
  • Connection type: Fixing -free connection to Wallbarn aluminium rail between lugs.

Tolerances

Heat/ softening point: 465°C.; Cold/ brittle point: -50°C.

Standard

To BS EN 8579, Approved Document B:2019 amend.

Environmental information

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

0

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

2

2.1
Download now from NBS National BIM Library
