Class A Substructure for Non-Combustible Decking Systems

Class A Substructure for Non-Combustible Decking Systems

Wallbarn Ltd

Class A MetalPad adjustable pedestal with integrated aluminium rail joist for non-combustible decking system on balconies, terraces and podium decks.

Jump to:
+44 (0)20 8916 2222 www.wallbarn.com
Application

For use with MetalPad for decking.

Designed for Class A balconies, terraces and flat roofs, and complies fully with BS 8579.

Description

MetalPad adjustable pedestal for decking with aluminium rail joist system to create substructure frame for Class A decking.

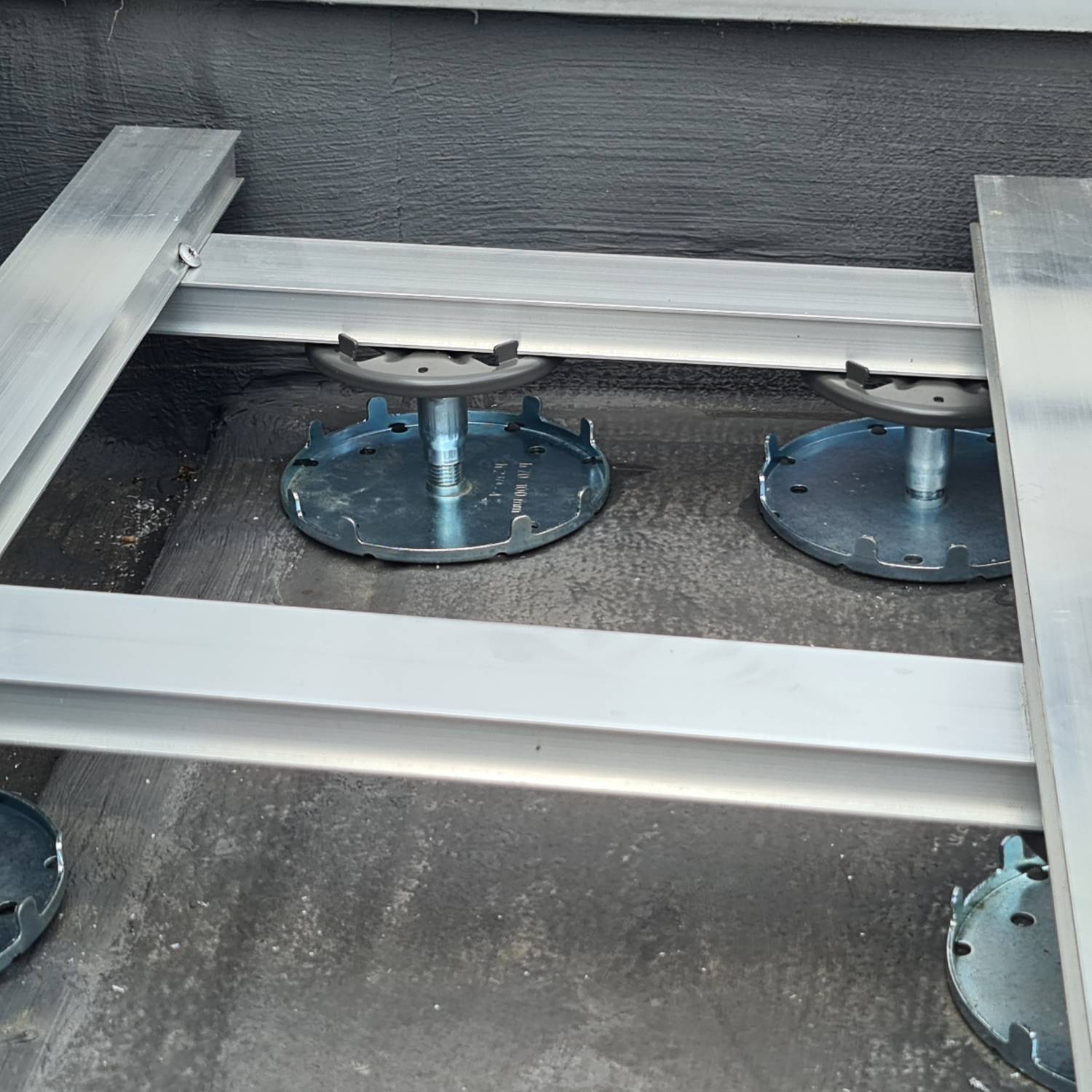

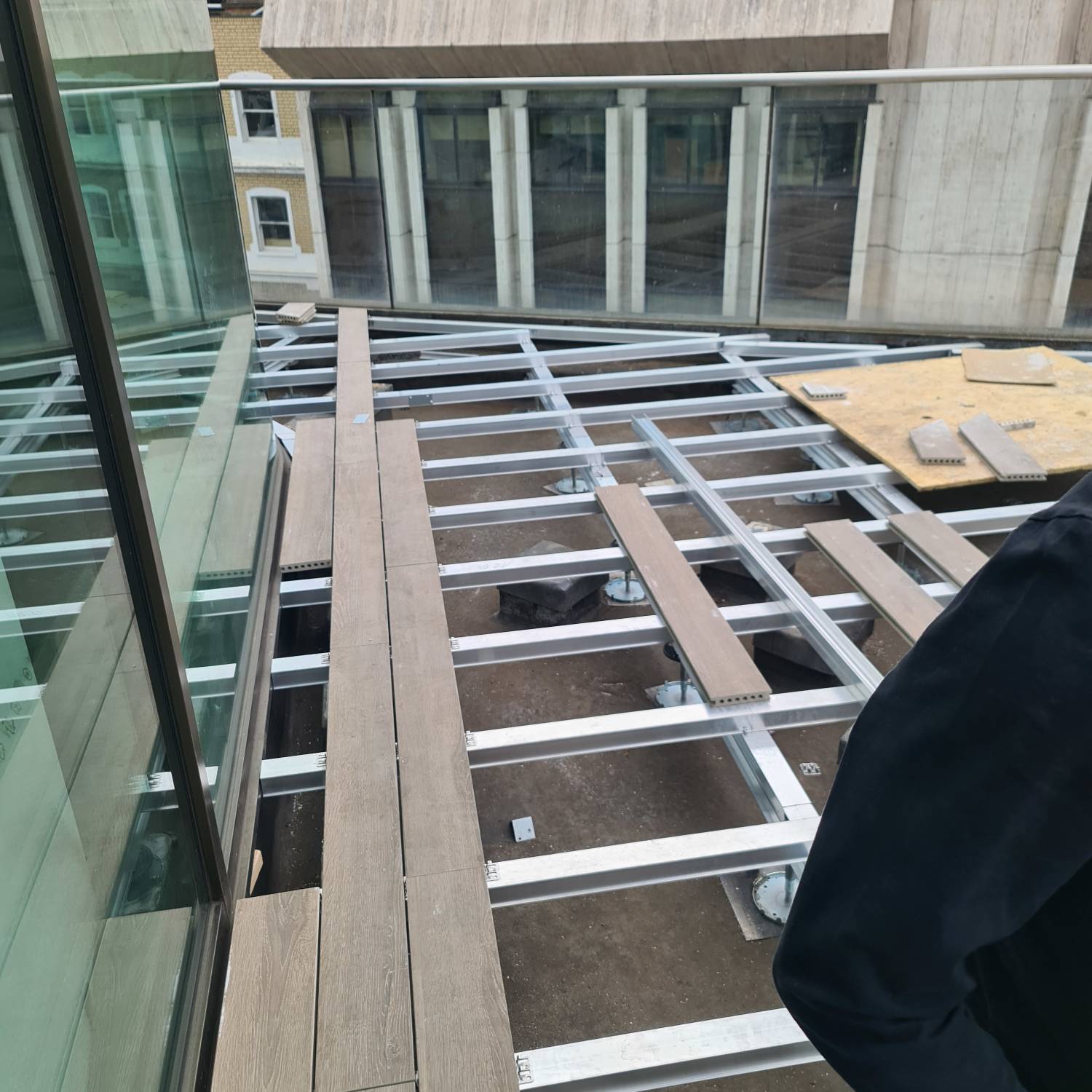

Profiled rail joist clicks between four lugs on headpiece of MetalPad to give secure fitting without need for mechanical fixings. Class A deck boards (by others) are fixed to the rail/ joist.

Fire rated Class A1 to EN 13501-1.

Complies to BS 8579.

Features and benefits:

  • Includes aluminium box detailed rail, 20 mm, 25 mm or 50 mm high - 60 mm wide.
  • Rail length 2 m, 2.5 m as standard, up to 5 m lengths available.
  • Fully integrated, mechanical fixing free substructure.
  • Part of Class A non-combustible system.
  • Greatly enhances lateral stability.
  • Allows pedestals to be placed at larger centres whilst maintaining weight tolerance.
  • Low height threshold for decking; 45 mm from the floor to the underside of the deck board.
  • Substructure height up to 350 mm maximum.
  • Very high weight tolerance: 1,000 kg, with a break point of over 2,000 kg.
  • Class A based on EC Commission 96-603.
  • Class A based on BS EN 13501-1: 2018 Fire Classification of Construction.
  • BS 8579: 2020 Guide to the Design of Balconies and Terraces.
  • Approved Document B fire safety volume1-2019.

Applications:

For use with MetalPad for decking.

Designed for Class A balconies, terraces and flat roofs, and complies fully with BS 8579.

General information

Uniclass 2015

Pr_20_85_47_22 Decking and paving pedestalsPrimary

CAWS

J21/467 Support system for precast concrete paving slabs

J21/85 Precast concrete paving slabs

J31/370 Precast concrete paving slabs

J31/375 Paving tiles

J31/377 Support system for paving slabs or tiles

J31/80 Precast concrete paving slabs

J41/467 Support system for precast concrete paving slabs

J41/90 Precast concrete paving slabs

J42/467 Support system for precast concrete paving slabs

Q37/460 Support pedestals

Q55/110 Deck

Q55/395 Support pedestals

Specification data - Decking and paving pedestals

Product Reference

Aluminium Rail and Pedestal System for Decking

Pedestal height

MetalPad - 25-32 mm

MetalPad – 32-39 mm

MetalPad – 39-46 mm

MetalPad – 46-53 mm

MetalPad – 53-70 mm

MetalPad - 70-100 mm

MetalPad - 100-140 mm

MetalPad - 140-220 mm

MetalPad - 220-300 mm

Rail dimensions

20 x 60 x 2000 mm (2 mm thick aluminium)

25 x 60 x 2500 mm (2 mm thick aluminium)

50 x 60 x 2500 mm (3 mm thick aluminium with double box detail)

Standard product features

Rail:

50 x 60 x 2500 mm (3 mm thick aluminium with double box detail)

Rail sizes:

  • 20 mm x 60 mm x 2000 mm (2 mm thick).
  • 25 mm x 60 mm x 2500 mm (2 mm thick).
  • 50 mm x 60 mm x 2500 mm (3 mm thick) double box detail.
  • Alternative rail lengths available as non-standard products.

Pedestal head diameter:

120 mm.

Pedestal head properties:

Powder coated to prevent reaction between aluminium and steel.

Pedestal base plate diameter:

150 mm.

Pedestal base properties:

Circular base with smooth underside to prevent puncturing subsurface.

Maximum span between pedestals (600 kg per m² load):

  • 20 and 25 mm profile: 600 x 600 mm.
  • 50 mm profile: 900 x 1200 mm.

Weight tolerance per pedestal:

1 tonne.

Maximum weight load per pedestal:

2 tonnes.

Tolerance:

  • Heat/ softening point: 465°C.
  • Cold/ brittle point: -50°C.

Fire rating (to EN 13501-1):

Class A1.
