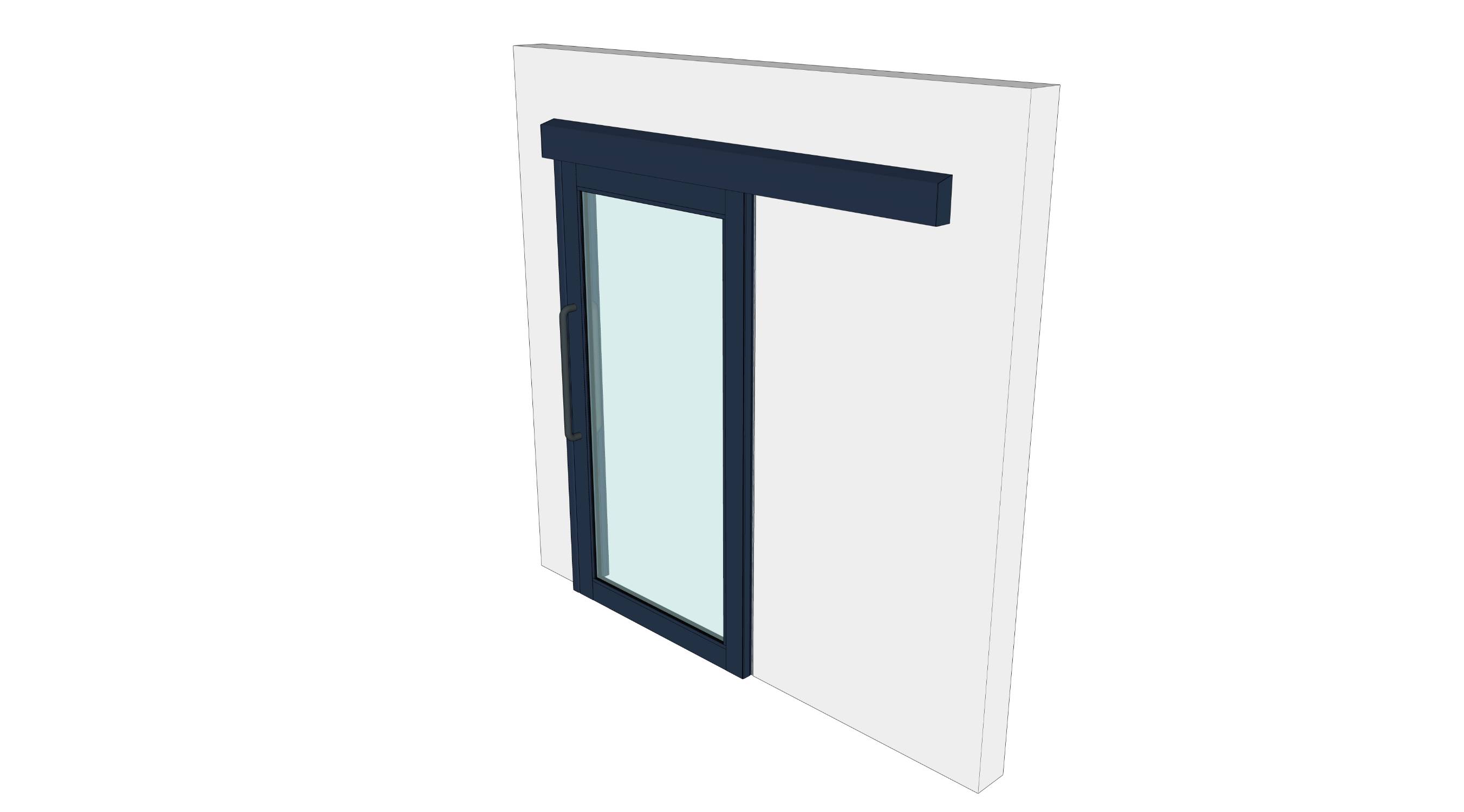

Clariglide SS-3 - Single Sliding Over Wall
Verified by manufacturer 6 months ago
Aluminium single sliding door over wall. Suitable for the following applications : • Healthcare • Pharmaceutical. • Cleanrooms. • Laboratory.
Application
Sliding door applications.
Description
Aluminium single sliding door over wall .
Features and benefits:
- Adjustable frame design to accommodate wall depth.
- Sloping pelmet for improved infection control.
- Available in every RAL code to BS EN 12206-1:2004.
- Bespoke manufacture to suit individual opening sizes.
- Doorset type Clariglide SS-3.
General information
Color | Beige Black Blue Bronze Brown |
Finish | Coated |
Material | Aluminium Metal Glass |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | L20/520 Sliding doors L20/55 Doorsets L20/480 Doorsets L20/490 Automatic doors |
Specification data - Sliding door and partition sets
Performance | Internal.Guidance for specification option: Hygienic/ High-use. |
Arrangement | Single sliding over wall. |
Track system | Concealed running gear with no floor track. |
Door leaves | |
Construction | Aluminium and glass. |
Finish and colour | RAL colour to BS EN 12206-1:2021.Manufacturer guidanceInsert requirements. |
Operation | Manual. |
Hardware | D Pull handle to comply with DDA.Manual lock.Electronic lock. |
Accessories | Not required.DGU vision panel 28 mm clear glass.DGU vision panel 32 mm with integral blinds tilt only. |
Acoustic performance | 0–35 dB. Manufacturer guidanceApplies to glazing only. |
Structural opening size | Manufacturer guidanceConsult manufacturer and insert requirements.
|
Clear opening size | Manufacturer guidanceConsult manufacturer and insert requirements.
|
Doorset | Clariglide SS-3. |
Door thickness | 47 mm. |
Door leaf size | Manufacturer guidanceConsult manufacturer and insert requirements.
|
Jambs | 52 mm. Manufacturer guidanceFrame jamb thickness. |
Door frame | 131 mm. Manufacturer guidanceFrame head thickness. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium Metal Glass |
Recyclability | 99% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
