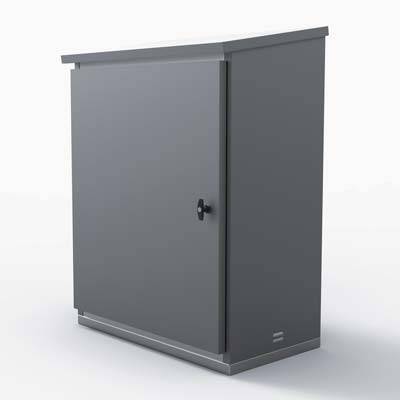

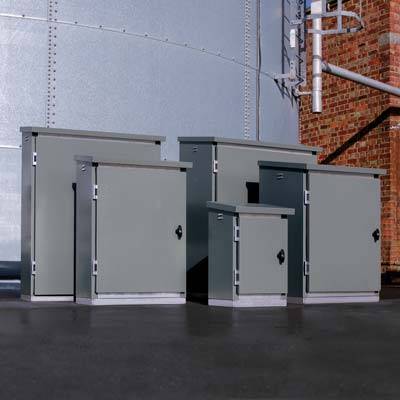

Citadel Industrial Cabinet - Protection Cabinet
Verified by manufacturer 12 hours ago
Plastisol steel cabinet for equipment protection.
Application
Suitable for use internally and externally in equipment protection applications.
Description
Plastic-coated (Grade 304) stainless steel cabinet for the protection of equipment.
Features and benefits:
- IP56 or ventilated model.
- T-handle three-point locking mechanism.
- Plastisol external finish.
- Reinforced double-skinned insulated door: provides optimum protection.
- Forward sloping roof: Prevents liquids and debris from collecting on top.
- Flush back: Allows for the enclosure to be sited against walls without dirt traps if required.
- 2 mm Stainless steel (Grade 304) chassis: Minimises corrosion from ground point and provides a strong, robust base with integrated fixing points to secure it into the ground.
- Secure stainless steel hinges: For weather and vandal resistance.
- Available in Merlin grey or any TATA Steel Colorcoat LG colours are available on request, subject to a minimum order quantity of 25 units.
- Optional timber backboard for secure equipment fixing.
- Concrete fix or anchors with LCTR plate installation.
- Available in a range of sizes.
General information
Color | Grey Other |
Finish | Plastisol |
Material | Stainless steel |
Shape | Rectangle |
Length | 350 mm 600 mm 900 mm |
Width | 300 mm 500 mm |
Height | 600 mm 900 mm 1200 mm |
Warranty description | Five year |
Uniclass | |
CAWS | P31/400 Meter cabinets |
Specification data - Equipment protection cabinets
Classification data | |
Enclosure | |
Material | Stainless steel. Guidance for specification option: Grade 304. |
Colour | Merlin grey. Guidance for specification option: As standard. TATA Steel Colorcoat LG Colours. Guidance for specification option: Available on request subject to a minimum order quantity of 25 units, consult manufacturer and insert requirements. |
Dimensions | 350 x 300 x 600 mm. Guidance for specification option: Citadel 336. 600 x 300 x 900 mm. Guidance for specification option: Citadel 639. 600 x 500 x 900 mm. Guidance for specification option: Citadel 659. 900 x 300 x 1200 mm. Guidance for specification option: Citadel 9312. 900 x 500 x 1200 mm. Guidance for specification option: Citadel 9512. |
Mounting arrangement | Surface. |
Ingress protection (minimum) | IP56. Not required (ventilated model). |
Features | Separate internal mounting back-plate. Guidance for specification option: Pre-finished plywood backboard. |
Accessories | Concrete fixing kit. Concrete-in anchor with LCTR plate. |
Finish | Plastisol, plastic-coated. |
Sustainability data
Material | Stainless steel |
Literature
Literature type

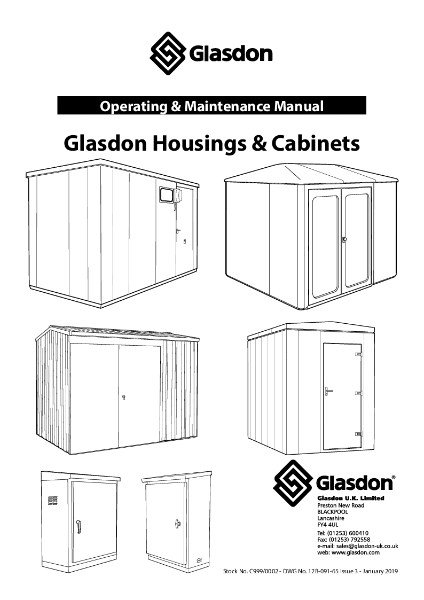

Glasdon Housings Operations & Maintenance Manual_A4

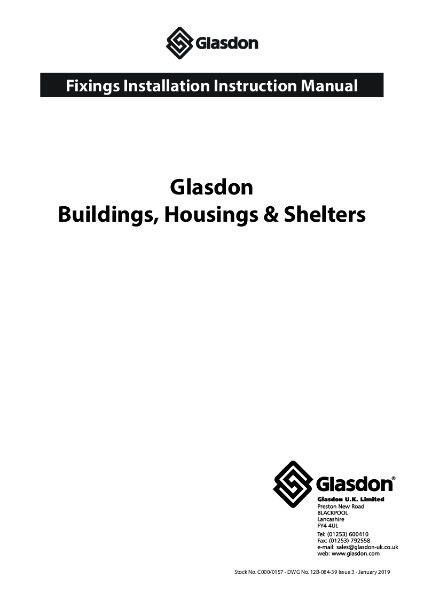

Glasdon Buildings and Housing Installation Manual_A4

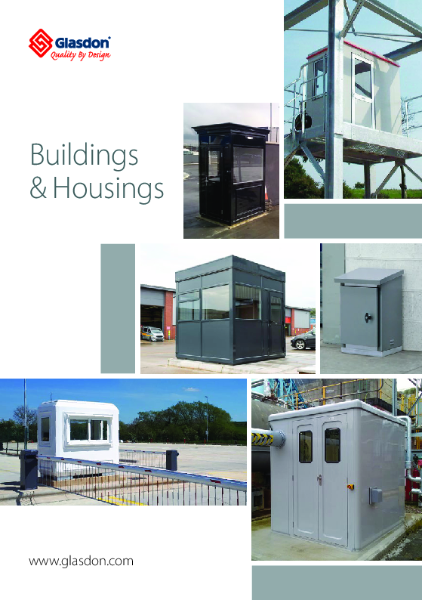

glasdon-uk-buildings-&-housings booklet-gx075
