NBS Source
Circular Prestige Revolving Door

Application

Circular revolving doorset suitable for commercial settings.

Description

Custom designed circular revolving door.


Features and benefits:

  • Framework can be clad with a variety of materials as a finish.
  • Available with two, three or four door leaves.
  • Diameters up to 3000 mm.
  • All sizes are available in manual, semi– or fully-automatic versions.
  • Can be supplied with heights in excess of nine metres.
  • Optional security function with swipe cards.

General information

Shape

Circular

Finish

Special finishes on request, consult manufacturer for options.

Stainless steel

Polyester powder coated

Material

Steel

Glass

WarrantyDescription

Lifetime with service contract

Please contact Bauporte for further information.

Size

1600–3000 mm

Available in 1 mm increments.

Uniclass

Ss_25_30_20_70 Revolving doorset systemsPrimary

CAWS

L20/60 Doors

L20/495 Automatic revolving doors

Specification data - Revolving doorset systems Enhanced data

Doorset

-

Operation

Manual revolving doorsets.

Automatic revolving doorsets.

Semi-automatic revolving doorsets.

Push and go.

Controlled access revolving doorsets.

Security mode.

Hardware

Not required.

Required.

Vertical or horizonal handles are available.

Breakout facility

Not required.

Required.

Available on request.

System accessories

Not required.

Night security screens.

Night security wall.

Matting.

Security resistance options.

RC2, RC3, RC4, SR2 and Ballistic Options Available PAS24:2016 - consult manufacturer for options.

Water drainage reservoir.

Heaters.

Product Reference

Circular Prestige Revolving Door - Two Wing

Circular Prestige Revolving Door - Three Wing

Circular Prestige Revolving Door - Four Wing

Finish

Door frame finish.

Stainless steel.

Polyester powder coated.

Special finishes on request.

Consult manufacturer for options.

Internal height

3000–9000 mm+.

Available in 1 mm increments.

Diameter

1600–3000 mm.

Available in 1 mm increment.

Clear opening

720–2060 mm.

Dependent on door configuration.

Door locking

Manual.

Automatic.

Semi-automatic & fully automatic versions only.

Door frame

Stainless steel.

Fixed curved drum walls will be constructed from welded through stainless steel profiles.

Options

Glazing options.

Clear.

Low iron.

Coloured.

Fritted.

Ballistic.

Show more

Drum walls

Stainless steel profiles with clear curved 12 mm glass.

Power supply

Not required.

230 V/50 Hz.

Semi-automatic & fully automatic only.

Door leaf

Stainless steel structure with clear flat 12 mm toughened glass.

Drive unit

Pit size.

Not required.

1200 x 400 x 400 mm.

Underfloor drive unit (semi-automatic & fully automatic only).

Safety

Designed, manufactured and installed to EN 16005.

Canopy

50 mm+.

Available in 1 mm increments. Please contact Bauporte for minimum heights if lighting or hot air units are required.

Door wings

Two.

Three.

Four.

Literature

Bauporte Circular Prestige Revolving Door

Bauporte Circular Prestige Revolving Door

Case studies

Three Royal Full Vision Revolving Doors 7.1m, 4.4m & 3.3m Tall-        The Rock, Zuidas, Amsterdam

Three Royal Full Vision Revolving Doors 7.1m, 4.4m & 3.3m Tall- The Rock, Zuidas, Amsterdam

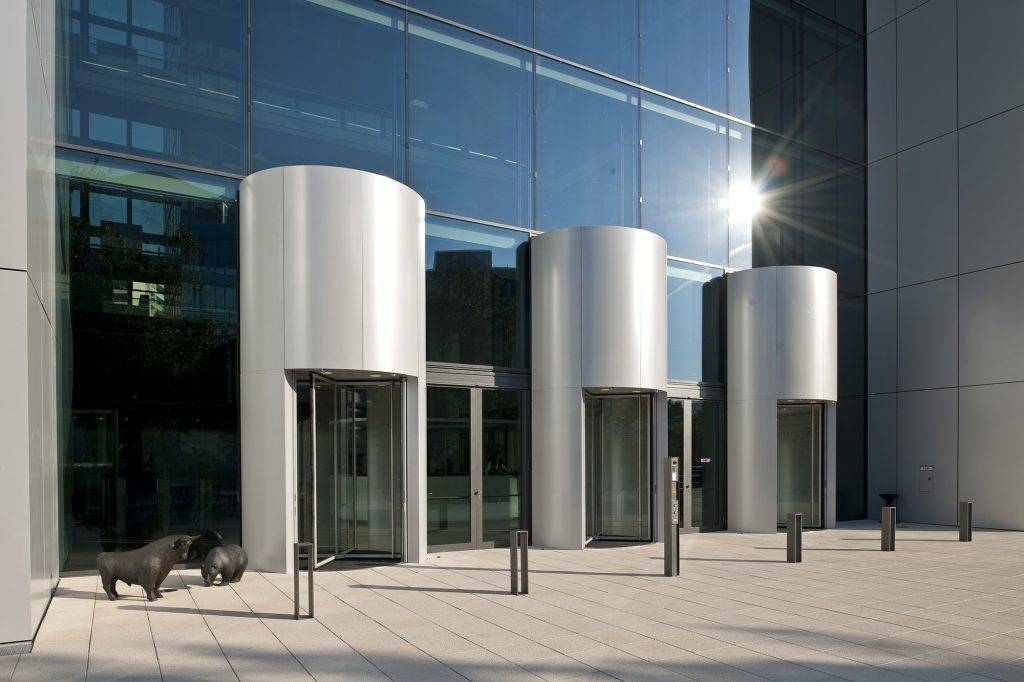

6.5m Tall Circular Prestige Revolving Doors, Unique Design-             Borse Cube Offices, Eschborn
