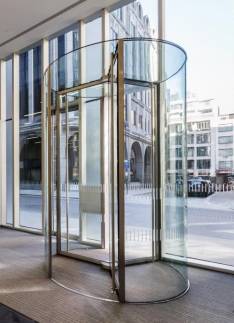

Circular Full Vision Revolving Door

Application

Suitable for commercial settings.

All round transparency allows the door to blend in with any architectural surroundings.

Description

Circular full vision revolving manual, semi– or fully-automatic doors.


Features and benefits:

  • Available with two, three or four door leaves and diameters up to 3100 mm.
  • Can be supplied in heights in excess of nine metres.
  • Optional security function with swipe cards.
  • Formed from durable stainless steel which can be clad with a variety of finishes.

General information

Shape

Circular

Finish

Special finishes on request, consult manufacturer.

Stainless steel

Polyester powder coated

Material

Steel

Glass

WarrantyDescription

Lifetime with service contract

Please contact Bauporte for further information.

Size

1600–3000 mm

Diameter - Available in 1 mm increments.

Uniclass

Ss_25_30_20_70 Revolving doorset systemsPrimary

CAWS

L20/60 Doors

L20/495 Automatic revolving doors

Specification data - Revolving doorset systems Enhanced data

Doorset

-

Operation

Manual revolving doorsets.

Automatic revolving doorsets.

Semi-automatic revolving doorsets.

Push and go.

Controlled access revolving doorsets.

Security mode.

Hardware

Not required.

Required.

Vertical or horizonal handles are available.

Breakout facility

Not required.

Required.

Available on request.

System accessories

Not required.

Night security screens.

Night security wall.

Water drainage reservoir.

Integrated into the mat well.

Security resistance options.

RC2, RC3, RC4, SR2 and Ballistic options available PAS24:2016, consult manufacturer for details.

Heaters.

Product Reference

Circular Full Vision Revolving Door - Two Wing

Circular Full Vision Revolving Door - Three Wing

Circular Full Vision Revolving Door - Four Wing

Finish

Door frame finish.

Stainless steel.

Polyester powder coated.

Special finishes.

Available on request, consult manufacturer.

Internal height

3000–9000 mm+.

Available in 1mm increments.

Diameter

1600–3000 mm.

Available in 1 mm increments.

Clear opening

720–2060 mm.

Dependent on door configuration.

Door locking

Manual.

Automatic.

Semi-automatic & fully automatic versions only.

Frame

Door frame.

Stainless steel.

Framework is constructed of welded through stainless steel sections for added durability and strength. This can be over clad with the chosen surface finish.

Options

Glazing options.

Clear.

Low iron.

Coloured.

Fritted.

Ballistic.

Show more

Drum walls

Clear curved 12 mm glass.

Glazing

Roof glazing.

18 mm clear toughened and float glass.

Door leaf

12 mm glass.

Rotating door element part framed with no centre post, the glazing is 12 mm and fully bonded together. The door leaves are provided with single brushes on all edges.

Power supply

Not required.

230 V/50 Hz.

Semi-automatic & fully automatic only.

Safety

Designed, manufactured and installed to EN 16005.

Drive unit

Pit size.

Not required.

1200 x 400 x 400 mm.

Underfloor drive unit - Semi-Automatic & Fully Automatic Only.

Door wings

Two.

Three.

Four.
