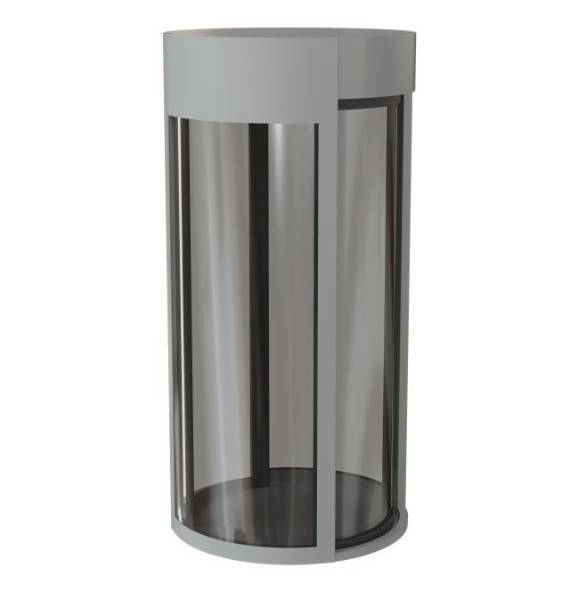

Circle Security Portals

Circle Security Portals

Safetell Ltd

A high security solution to control entry and exit to internal secure areas. Available as circle, square and larger DDA units to meet existing building aesthetics and client needs.

Jump to:
+44 (0)1322 223233 www.safetell.co.uk
Application

Suitable areas of application include:

  • Airports.
  • Banks.
  • Embassies.
  • Corporate buildings.
  • Prisons.
  • Data centres.
  • Ministries.
  • Jewellers.
  • Leisure centres.
  • Secure areas.

Description

A high security solution to control entry and exit to internal secure areas. Available as circle, square and larger DDA units to meet existing building aesthetics and client needs. Our Security Portals offer single person passage checking and abandoned object detection systems with range of passage widths available, including a DDA approved wide version. Available with a range of security resistance levels including EN1627 RC4 Manual Attack rating and EN1522 FB4 Ballistic Rating. Our Security Portals are designed to be integrated with any access control system.

Features and benefits:

  • Weighing floor system (abandoned object detection, weight higher than 200 g).
  • Single person detection (anti-hostage system).
  • Paint finish: embossed, according to RAL colour scale or stainless steel covering.
  • Traffic Light Panels and Multilingual automated voiceover for transit communications.
  • Portal Console with digital display and menu-guided commands.
  • Throughput: dependant on model and accessories.

Application:

Suitable areas of application include:

  • Airports.
  • Banks.
  • Embassies.
  • Corporate buildings.
  • Prisons.
  • Data centres.
  • Ministries.
  • Jewellers.
  • Leisure centres.
  • Secure areas.

General information

Finish

Embossed, RAL

Insert colour requirement.

Stainless steel

Uniclass 2015

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/490 Automatic doors

Specification data - Sliding door and partition sets

Product Reference

Circle Security Portals

Finish

Embossed, RAL

Insert colour requirement.

Stainless steel

Width of passage

600 mm

700 mm

Floor thickness

65 mm

Standard base

20 mm

Slim base

Weight

800 kg

Standard base

900 kg

Slim base

Height

2350 mm

Circumference

1050 mm (600 passage)

1150 mm (700 Passage)

Resistance Levels

STANDARD GLAZING

EN1063 BR3/S

EN365 P6B

OPTIONAL FB4 & RC4

Accessories

Camera

Card reader

Infrared sensor for presence monitoring

Biometric registration system - Biobank

Anti-masking system face detection

CEIA metal detector

Metal detector CEIA 02PN8HIPE/CF

Metal detector CEIA 02PN8HIPE
