Charon Turnstiles - Half-height Turnstiles
Verified by manufacturer 3 days ago
HTS-M01
HTS-M01

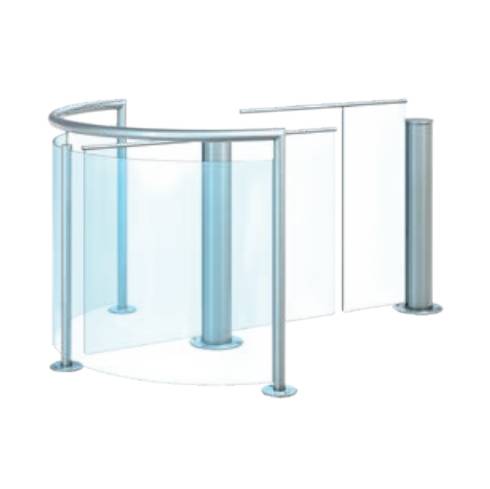

Stylish stainless steel half-height turnstiles and swing doors providing an effective way of managing the flow of visitors and staff.
Application
- Administrative buildings, public authorities and industrial premises.
- General office reception foyers.
Description
Stylish stainless steel half-height turnstiles and swing doors providing an effective way of managing the flow of visitors and staff in prestigious entrance foyers, VIP areas or at the entrance to management floors. All units can be combined contactless and biometric access control systems.
Features and benefits:
- Smooth, silent start-up.
- Low power consumption.
- Elegant, transparent design.
- Comfortable passage owing to servo positioning drive.
- Barrier-free solutions with automatic swing doors in corresponding design.
- Swing doors suitable for escape route installation.
- Versatile design of glass wings, guiding elements and bar handles.
- Direction of passage/ denial of passage in case of power failure can be defined.
- Optional adjustment of height up to 1200 mm.
General information
Color | Silver Clear Guidance for specification option: Glass (where applicable). |
Finish | Satin Smooth Guidance for specification option: Glass (where applicable). |
Material | Stainless steel Glass |
Shape | Rectangle |
Length | 1491 mm 1860 mm |
Width | 1070 mm 1418 mm |
Height | 1023 mm |
Uniclass | |
CAWS | L20/500 Manual revolving doors |
Product range |
Specification data - Stainless steel half-height turnstiles
Turnstile type | Rotor panel. |
Rotation | Bi-directional.Guidance for specification option: Passage side can be selected: inwards right or inwards left. |
Control unit | Included in external switch cabinet, 283 x 168 x 115 mm.Guidance for specification option: Height x width x depth. |
Finish | Satin.Guidance for specification option: Stainless steel components only. |
Accessories | Guidance for specification option: consult manufacturer's literature for information and insert requirements, or omit. |
Barrier Height | 900 mm. |

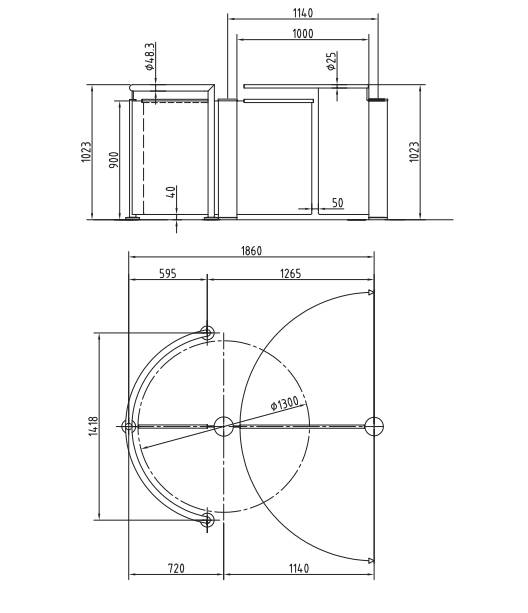

Barrier type | Stainless steel/ glass, 1023 x 1860 x 1418 mm. |
CapacityPeople | 25 people per minute. Guidance for specification option: Capacity in one direction. |
Construction | Side barrier elements: AISI 304 stainless steel tubing, ∅48 mm, mitred; with 8 mm tempered safety glass. |
Fixing | Clamping sleeve. Dowelled on FFL. Mounting plate. Manufacturer guidanceApplies to guiding element and column unless specified otherwise. |
Ingress protection (IP) rating | Housing: IP 43. |
Operation | Type 2 power-assisted motion; servo-positioning drive/ electrically controlled in two directions. |
Power consumption | Standby: 15 VA. |
Power supply | 110–230 V a.c, 50/ 60 Hz. |
Installation | Not suitable for outdoor installation. |
Arrangement | Single unit. Multiple units. Guidance for specification option: Consult manufacturer for options and insert requirements. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Stainless steel Glass |
