Channel - WC23 Self Anchoring Channel

Name: Channel - WC23 Self Anchoring Channel
Brand: Wincro Metal Industries Ltd
SKU: ujP3aQLL8nL8Xp9v9igzd3

Verified by manufacturer 4 months ago

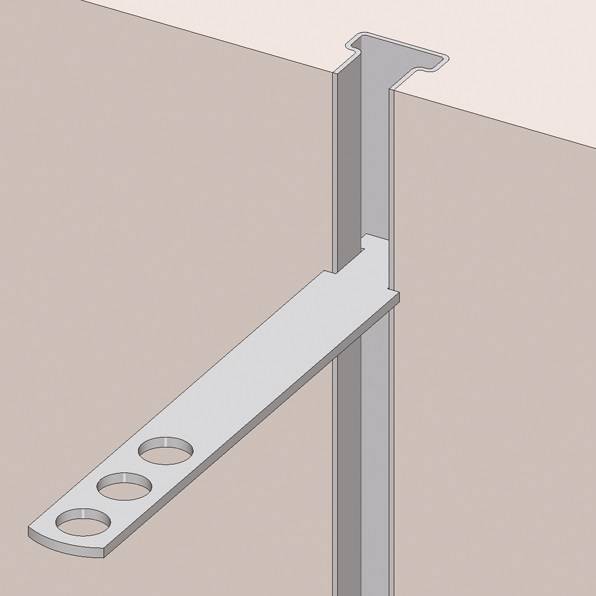

A high performance, shallow, self-anchoring stainless steel cast-in channel for use with wall ties.

Jump to:

Application

Suitable for use with wall ties.

A high performance, shallow, self-anchoring stainless steel cast-in channel for use with wall ties.

Features and benefits:

Available in two lengths, 100 and 3000 mm.
Supplied pre-punched for nailing to formwork.
Complete with polystyrene infill to prevent the ingress of concrete.
Wall ties used with WC23 channel will achieve safe working shear and tensile loads of 1.5 kN.
Suitable wall ties include WTS3C23, WTS2C23 and WTP3C23.
CE marked to BS EN 845-1.

Color	Silver
Material	Stainless steel Guidance for specification option: Grade 1.4301 (304), standard. Grade 1.4401 (316), optional.
Shape	Other
Length	100 mm 3000 mm

Uniclass	Pr_20_85_84_84 Stainless steel cast-in channelsPrimary
CAWS	E42/340 Channels and slots F30/26 Wall ties

Material	Stainless steel.
Designation	Grade 1.4301 (304).
Masonry ties	Required. Guidance for specification option: Range includes WTS3C23, WTS2C23 and WTP3C23.

Accessories	None. WIC. Guidance for specification option: Plastic insulation retaining clip. WDS. Guidance for specification option: Wincro plastic de-bonding sleeve.
Channel size	100 mm. 3000 mm.
Standard	To BS EN 845-1.
Wall ties	Wincro WTS3C23. Guidance for specification option: Safe ended channel tie without drip. Available in 7 lengths from 75–225 mm. Wincro WTS2C23. Guidance for specification option: Safe ended channel tie with drip. Available in 5 lengths from 125–225 mm. Wincro WTP3C23. Guidance for specification option: Plain ended channel tie. Available in 6 lengths from 100–225 mm. Use with WDS debonding sleeve.
