Channel Ties - Cavity Wall Ties for use with Channels
Verified by manufacturer 1 month ago
VS9 steel channel ties
VS9 steel channel ties
ISO 9001 Quality Management
Certificate type
A range of channel ties for use in systems allowing vertical movement whilst providing horizontal restraint.
Application
Ties offering vertical movement with horizontal restraint.
Suitable for tying masonry to steel frame, concrete or brickwork/blockwork.
Description
A range of channel ties for use in systems allowing vertical movement whilst providing horizontal restraint.
Features and benefits:
- Manufactured from grade 304 stainless steel.
- Non-combustible (as defined in the national Building Regulations).
- Excellent corrosion resistance and a service life of not less than 60 years.

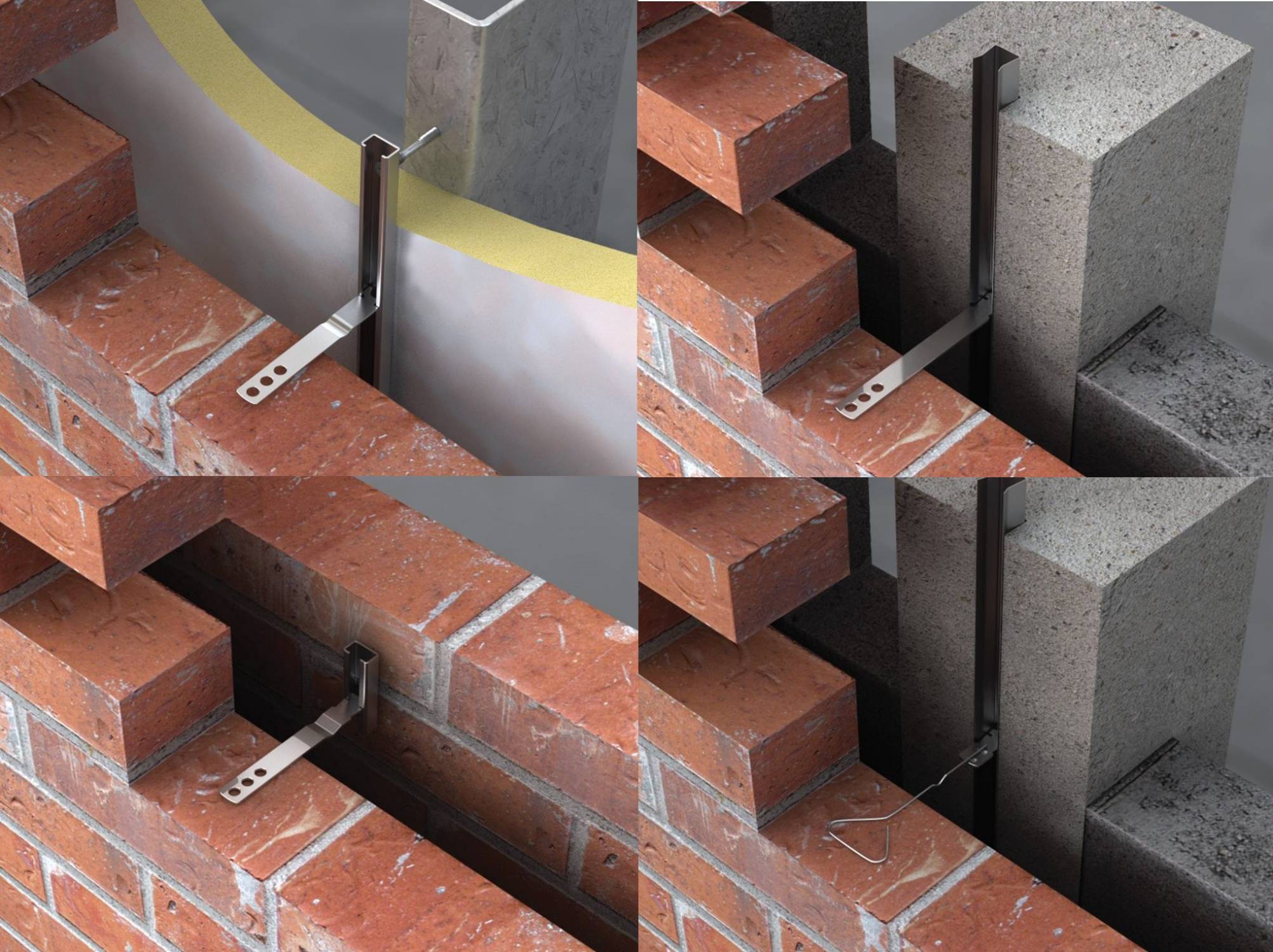

VS9 steel channel ties:

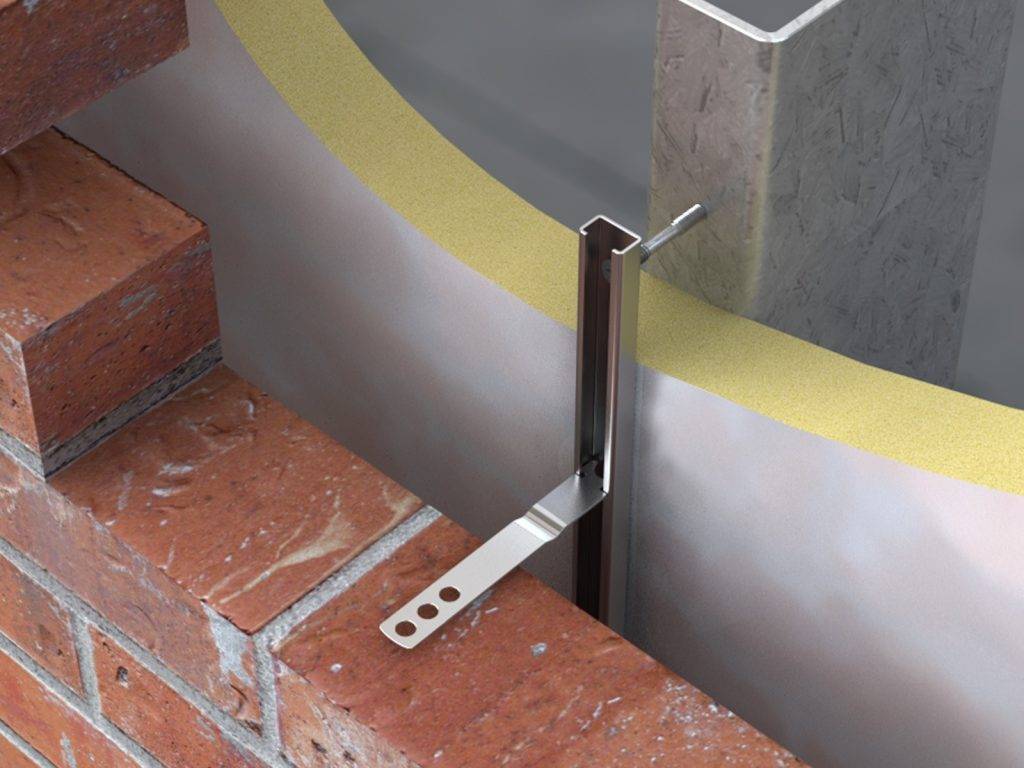

- Head specific for Vista steel frame channels (SFC). Tie designed to suit a variety of cavities.
VS8 dovetail safety ties:
- Universal head enables this tie to be used with all V60 channel systems and V29 slot to restrain brickwork. Available with drip (VS8D).
V98 dovetail wire ties:
- Universal head enables this tie to be used with all V60 channel systems and V29 slot to restrain brickwork the wire section allows for extra movement.
General information
Color | Silver |
Material | Stainless steel Guidance for specification option: Grade 304. |
Length | 75 mm Guidance for specification option: VS9/ VS8 only. 100 mm 125 mm 150 mm 175 mm Manufacturer guidanceProjection length from safety end to shoulder. Notched head length varies by model. |
Uniclass | |
CAWS | F30/245 Channel/ slot ties F30/42 Channel/ slot ties used with partial fill insulation F30/41 Channel/ slot ties F30/248 Channel/ slot ties used with partial fill insulation |
Specification data - Channel slot ties
Form of slot ties | Strip. |
Material | Grade 304 stainless steel. |
Sizes | 75 mm.Guidance for specification option: No drip. 100 mm.Guidance for specification option: Includes drip. 125 mm.Guidance for specification option: Includes drip. 150 mm.Guidance for specification option: Includes drip. 175 mm.Guidance for specification option: Includes drip. 200 mm.Guidance for specification option: Includes drip. 225 mm.Guidance for specification option: Includes drip. 250 mm.Guidance for specification option: Includes drip. Manufacturer guidanceProjection length from safety end to shoulder. Notched head length: 15 mm. |
Slot fixing | Embedded.Guidance for specification option: V29; channels specified separately. Surface.Guidance for specification option: V60; channels specified separately. |
End types | Asymmetrical sliding tee slot end with flat plate embedment end. |
Design embedment length (minimum) | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Additional requirements | |
Resistance to water crossing cavity | Resistant.Guidance for specification option: Drip included in all sizes except 75 mm projection. |
Accessories | Guidance for specification option: Consult manufacturer for options and insert requirements or omit. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
ISO 9001 Quality Management
ISO 9001
Literature
Wall Ties Brochure

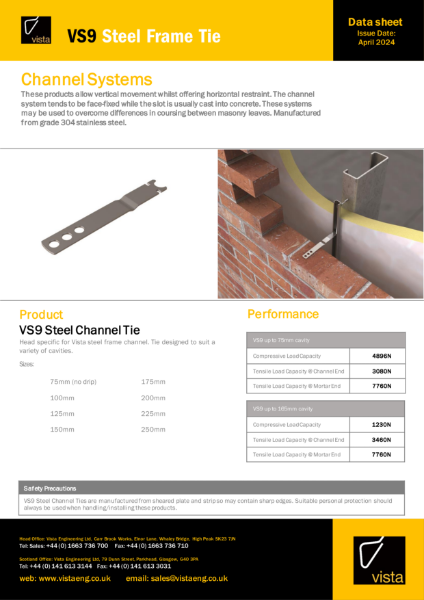

VS9 Steel Frame Tie Data Sheet

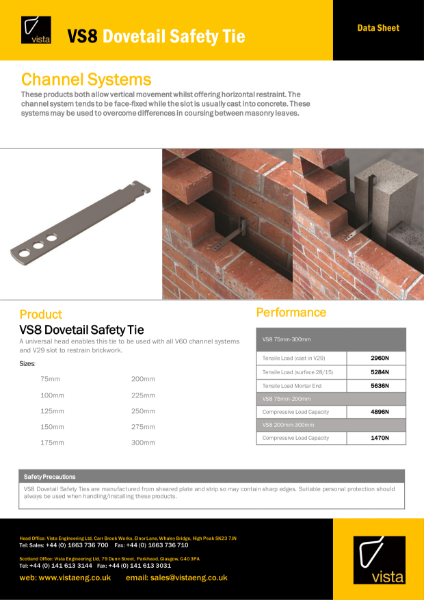

VS8 Dovetail Safety Tie Data Sheet

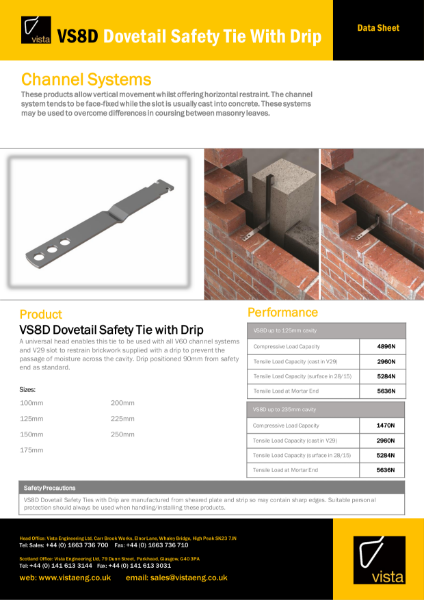

VS8D Dovetail Safety Tie With Drip Data Sheet

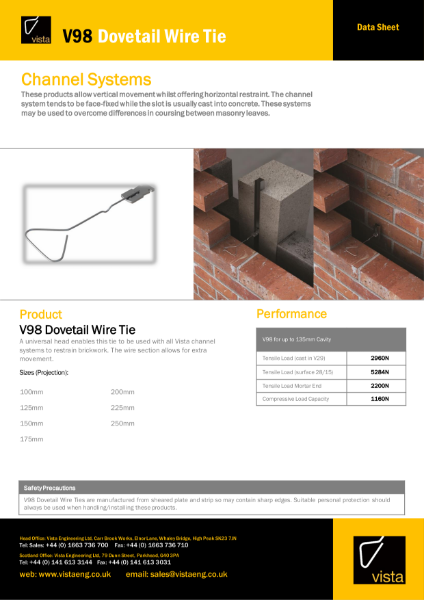

V98 Dovetail Wire Tie Data Sheet

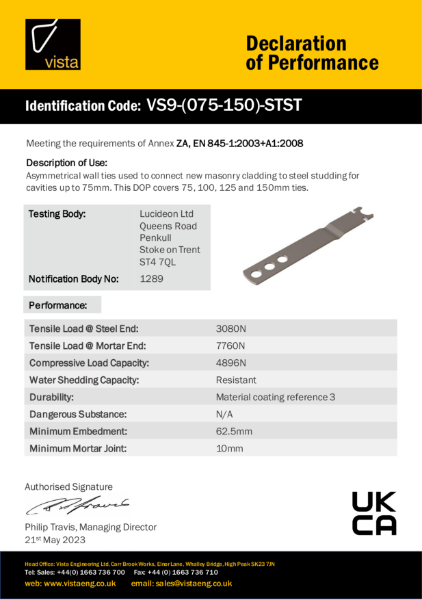

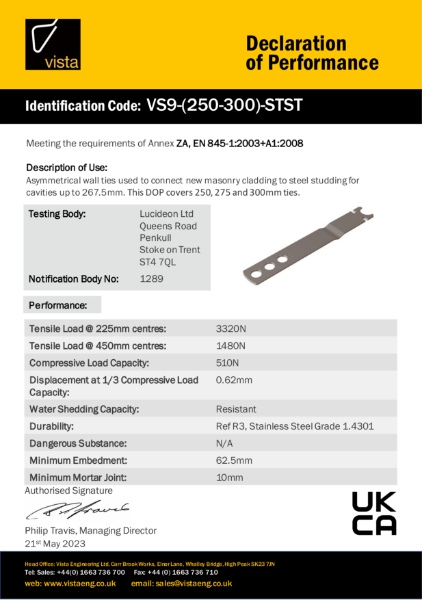

VS9-075-150-STST Declaration of Performance

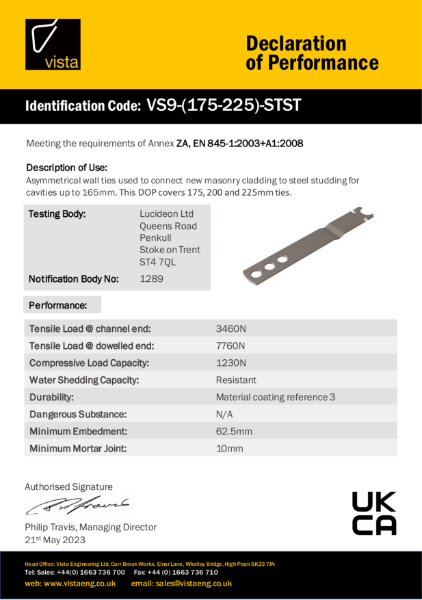

VS9-175-225-STST Declaration of Performance
VS8D-200-STST Declaration of Performance

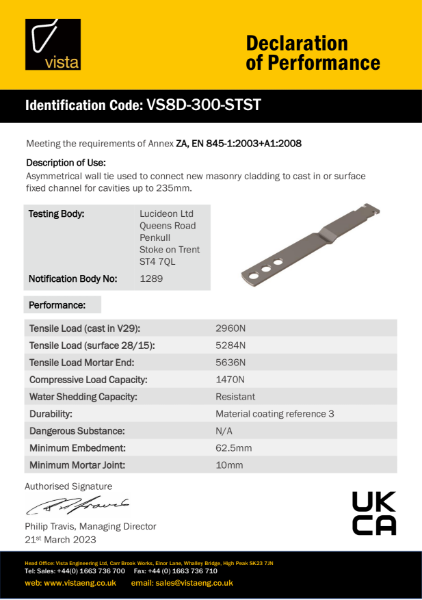

VS8D-300-STST Declaration of Performance
