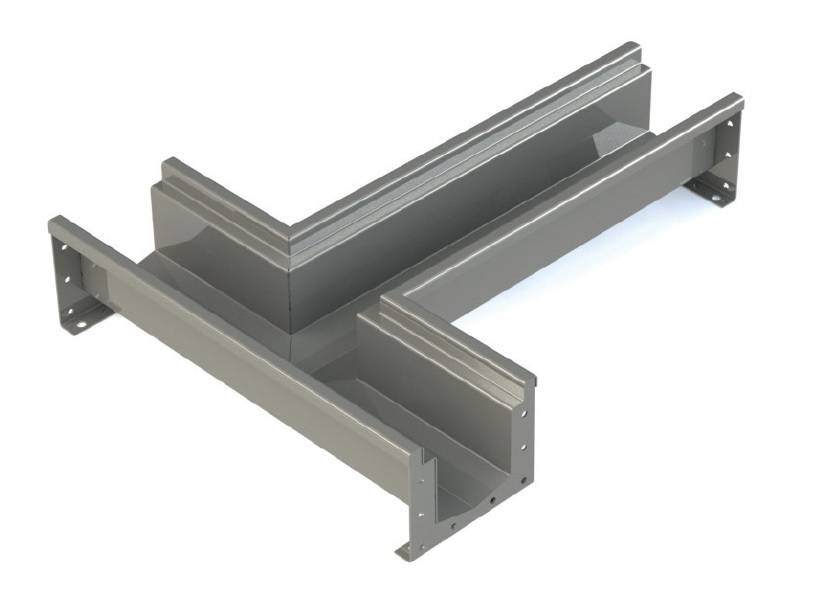

Channel T-Section KCRC(TS)125 - Floor channels
Application

Designed for use in leisure centres with perforated or heelmesh grating.

  • Pools.
  • Leisure centres.
  • Washrooms.
  • Office blocks.
  • Rail, airport and bus terminals.
  • Sports stadia.

Suitable for marble, ceramic tiles, terrazzo, concrete, resin, wood and parquet. A vinyl floor option is available; consult manufacturer for details.

Description

A low-cost stainless steel drainage channel for all floor finishes.

Features and benefits:

  • Meets BS EN1253 Class K3 (barefoot and pedestrian).
  • 125 mm wide body as standard.
  • 160 mm outside edge to outside edge.
  • Trapped 110 mm spigot outlet as standard.
  • Shallow 50 mm start depth.
  • Concrete ties and levelling bolts as standard.
  • Polished top edge.
  • A variety of grates suitable for heel safe and barefoot are available.
  • Made to length – reduced joints.

Applications:

Designed for use in leisure centres with perforated or heelmesh grating.

  • Pools.
  • Leisure centres.
  • Washrooms.
  • Office blocks.
  • Rail, airport and bus terminals.
  • Sports stadia.

Suitable for marble, ceramic tiles, terrazzo, concrete, resin, wood and parquet. A vinyl floor option is available; consult manufacturer for details.

General information

Material

1.4301 (304) stainless steel

1.4401 (316) stainless steel

Features

Made to length - reduced joints, decorative gratings available, 50 mm start depth,, multiple applications, concrete ties and levellings bolts as standard

Finish

Polished top edge

Shape

T shaped

Size

50 x 125 x 643 mm

Uniclass 2015

Pr_65_52_24_28 Floor channelsPrimary

CAWS

R11/310 Floor channels

Specification data - Floor channels

Product Reference

KCRC125 Drainage Channel

Type

KCRC(CO)125

Central outlet section.

KCRC(CS)125

Corner section.

KCRC(EO)125

End outlet section.

KCRC(SS)125

Straight section.

KCRC(TS)125

T-section.

Length

Bespoke, consult manufacturer and insert requirements.

Material

1.4301 (304) stainless steel

1.4401 (316) stainless steel

Grating

Kent Customised

Bespoke variant, consult manufacturer for details.

Kent Diamond Perforated

Kent Interceptor

Kent Pedestrian Heelmesh

Kent Square Perforated

Kent Tetra

Kent Wedge Heelmesh

Standard product features

Opening width:

125 mm.

Outside edge width:

160 mm.

Depth:

50 mm.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.0
Revit
Revit 2017 1 2.0
Download now from NBS National BIM Library
