Channel Framed Mirror - B-165 Series

Description

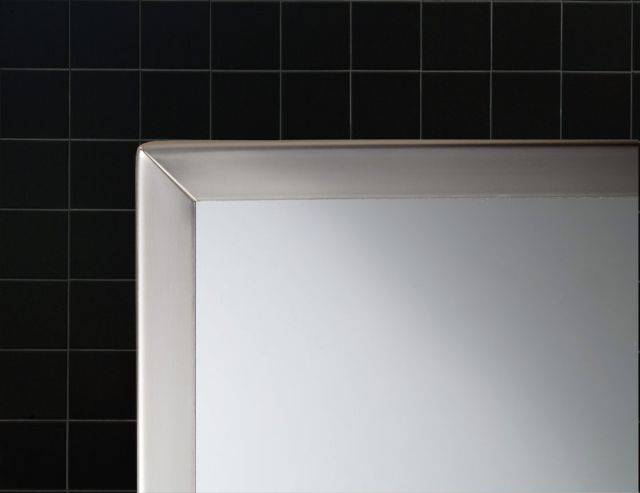

A 6 mm electrolytically copper-plated glass mirror with frame of a one-piece channel (13 mm x 13 mm x 13 mm) with bright polished finish, mitred corners.

The mirror back is manufactured from galvanized steel and the unit is secured to the wall with a concealed wall hanger with two theft resistant locking screws.

General information

Material

Bright polished frame and mitred corners, electrolytically copper-plated glass with frame of a one-piece channel frame (13 mm x 13 mm x 13 mm)

Size

[Size, Special sizes available]

-

Uniclass 2015

Pr_25_71_53_46 Large mirrorsPrimary

CAWS

N10/270 Mirrors

N13/438 Mirrors

Specification data - Large mirrors

Product Reference

B-165 1824 Channel Framed Mirror

B-165 1830 Channel Framed Mirror

B-165 1836 Channel Framed Mirror

B-165 2430 Channel Framed Mirror

B-165 2436 Channel Framed Mirror

B-165 2448 Channel Framed Mirror

B-165 2460 Channel Framed Mirror

B-165 4836 Channel Framed Mirror

Standard product features

Material:

Bright polished frame and mitred corners, electrolytically copper-plated glass with frame of a one-piece channel frame (13 mm x 13 mm x 13 mm).

Glass thickness:

6 mm.

Backing:

Galvanized steel.

Dimensions:

  • B-165 1824 - 460 mm wide x 610 mm high.
  • B-165 1830 - 460 mm wide x 760 mm high.
  • B-165 1836 - 460 mm wide x 910 mm high.
  • B-165 2430 - 610 mm wide x 760 mm high
  • B-165 2436 - 610 mm wide x 910 mm high
  • B-165 2448 - 610 mm wide x 1220 mm high
  • B-165 2460 - 610 mm wide x 1520 mm high.
  • B-165 4836 - 1220 mm wide x 910 mm high.

Warranty:

15 years against silver spoilage.

Product Options

Size:

Special sizes available.
