CFSE

Application

Large commercial and industrial buildings - airports, hospitals, warehouses and factories etc.

Two year warranty.

Description

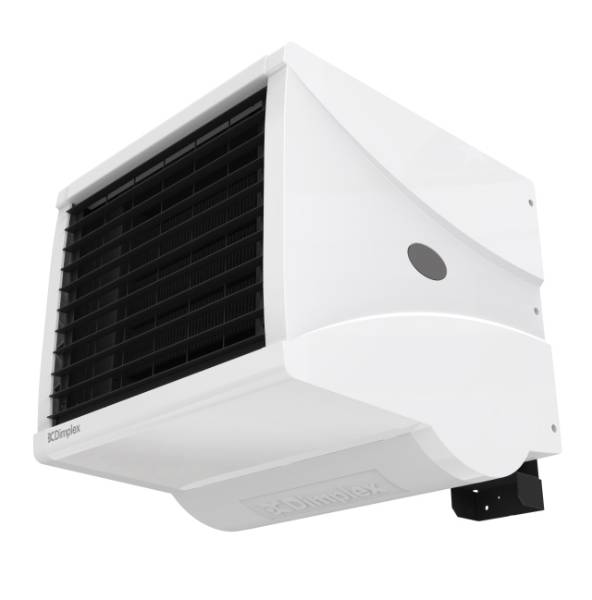

The CFSE is a robust fan heater suited for general purpose commercial and light industrial use. The CFSE are offered in either 3 kW or powerful 6 kW versions.

Features and benefits:

  • Seven-day timer and temperature control (programmed via Bluetooth remote).
  • Features energy-saving Adaptive Start technology.
  • Heavy duty corrosion resistant case.
  • Adjustable wall bracket.
  • Two heat settings and cool blow.
  • Wall controller included.
  • Complies with Lot 20 of ERP Directive.
  • CE marked and BEAB Approved.

Applications:

Large commercial and industrial buildings - airports, hospitals, warehouses and factories etc.

Two year warranty.

General information

Uniclass 2015

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

Specification data - Room heaters

Product Reference

CFSE Commercial Fan Heater

Type

CFS30E

3 kW heat output. 530 x 262 x 306 mm (l x h x d). 400 m³/h airflow. Noise level: 37 dBA.

CFS60E

6 kW heat output. 630 x 360 x 386 mm (l x h x d). 750 m³/h airflow. Noise level: 50dBA.

Standard product features

Technical characteristics:

  • Blower units: Axial fan.
  • IP rating: IP24 (CFS30E); IPX4 (CFS60E).

Controls:

  • Digitally controlled, accurate electronic thermostat.
  • Timer modes: Seven day programmable user timer.
  • Continuous heat modes: Manual, runback, fan only, off.

Controller UI:

Off-board control only. Requires pairing with Bluetooth remote or Remo Smartphone App.

Controller Functions:

  • Heat Selection: High, low, fan only.
  • Adaptive start.
  • Advance time period.
  • Bluetooth for control and software updates.

Construction:

Steel case with plastic mouldings. Traffic White (RAL 9016) with black grille and bracket.

Element:

Metal sheathed.

Installation:

Supplied with wall mounting bracket.

Safety:

  • CFS30E: Electric reset cut-out (115°C).
  • CFS60E: Manual reset cut-out (85°C).

Supply:

Two core for fused spur installation, 1/2 ~230-240 V, 50Hz Class II. Direct wired.
