CFS-W SG
Description

Firestop wrap strip for sealing flammable pipes from 50–160 mm diameter in penetrations through fire compartment walls and floors. Suitable for use with PE, PE-HD, PVC-U, PVC and PVC-C pipes.

Features/ Benefits:

  • Quick and easy closure without tools.
  • Ready-to-use pre-measured wrap strips for quick installation.
  • Sound decoupling strip based on PE (foam) can be used.
  • Ideal for very tight installations.
  • Fire resistance rating of up to four hours.
  • ETA-10/0405.

Suitable substrates:

Aerated concrete, concrete, masonry and drywall.

General information

Uniclass 2015

Pr_65_52_61_15 Concealed intumescent pipe collarsPrimary

CAWS

P12/44 Pipe collar - insulated wrap

Specification data - Concealed intumescent pipe collars

Product Reference

CFS-W SG 50/1.5”

For 50 mm diameter pipes, 169 x 45 x 5 mm (l x w x h).

CFS-W SG 63/2”

For 63 mm diameter pipes, 210 x 45 x 5 mm (l x w x h).

CFS-W SG 90/3”

For 90 mm diameter pipes, 311 x 45 x 9 mm (l x w x h).

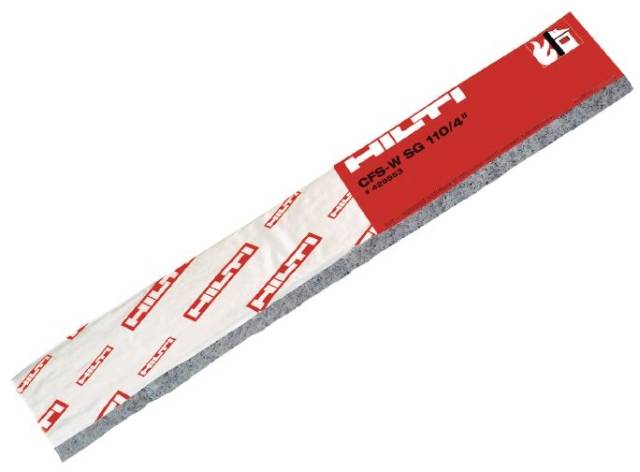

CFS-W SG 110/4”

For 110 mm diameter pipes, 370 x 45 x 9 mm (l x w x h).

CFS-W SG 125/5”

For 125 mm diameter pipes, 421 x 45 x 9 mm (l x w x h).

CFS-W SG 160/6”

For 160 mm diameter pipes, 543 x 45 x 14 mm (l x w x h).

Standard product features

Fire resistance:

Up to four hours, dependent on substrate and application.

Technical properties:

  • Application temperature: -5 to +50°C.
  • Temperature resistance: -20 to +100°C.
  • Reaction to fire (to BS EN 13501-1): E.
  • LEED VOC: 7.6 g/L.
  • Mould and mildew resistance (to BS EN ISO 846): Class 0.

Third party certifications
  • ETA: 10/0405
