Centurion - Collapsible Gates

Verified by manufacturer 22 days ago

Delatim Centurion Level 2 (SR2)

Delatim Variant:
Product certifications:
  • BRE Certificate

    BRE Certificate

    Certificate type

  • BRE Certificate

    BRE Certificate

    Certificate type

Collapsible gates for stations.

Jump to:
07979727776 Website

Application

Suitable for use in stations.

Description

Heavy duty gate for front of stations, used extensively on the London Underground and network surface railway and for crowd control applications, with mid bars for extra strength.

Features and benefits:

  • Tested to LPS 1175.
  • Top hung gate with bottom guide.
  • Box top track rolled from 2.5 mm thick pre-galvanized steel to form 57 mm wide x 75 mm deep section.
  • Can be face or soffit fixed using a wide range of purpose made brackets.
  • Lattices and mid bars made from hot rolled mild steel flat, 20 mm wide x 6 mm thick recessed single channel bottom track, 32 mm wide x 40 mm deep x 2.5 mm thick pre-galvanised steel, as standard.
  • Special depth channels can be provided if required.
  • Pickets can also be upgraded to 3.0 mm thick for further strength.

General information

Color

Beige

Black

Blue

Brown

Bronze

Show more

Finish

Zinc plated

Powder-coated

Material

Steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

1700 mm

Guidance for specification option:

Minimum opening width.

20000 mm

Guidance for specification option:

Maximum opening width.

Height

Bespoke

2000 mm

Guidance for specification option:

Minimum opening height.

3500 mm

Guidance for specification option:

Maximum opening height.

Uniclass

Pr_30_59_24_14 Collapsible gate and grille setsPrimary

CAWS

L20/60 Doors

L20/620 Collapsible gates/ grilles

Specification data - Collapsible gate and grille sets

Classification data

Arrangement

Hinge aside.
Top-hung.

Frame location

Face-fixed externally.
Face-fixed internally.
Fitted between jambs.
Fitted beneath structural support frame.

Gate leaf

-

Type

-

Manufacturer guidance

Varies to structural opening dimensions.

  • Minimum opening width 1.7 m. Maximum opening width 20 m.
  • Minimum opening height 2 m. Maximum opening height 3.5 m.

Consult manufacturer and insert requirements.

Finish

Polyester powder-coated.

Guidance for specification option:

  • To standard range of BS4800 or RAL colours.
  • Consult manufacturer for details and insert requirements.

Hardware

Surelock McGill Moorgate locking system.

Accessories

Not required.
Parallel bunch.
Plated leading edge.

Security

To LPS 1175: Issue 8, B3 (SR2).

Manufacturer guidance

Security rating.

Sustainability data

Country of product manufacture

United Kingdom

Material

Steel

Recyclability

Recyclable

Expected Life

20 year

Product certifications

BRE Certificate

BRE Certificate

LPCB - Delatim Centurion Level 3 (SR3)

BRE Certificate

BRE Certificate

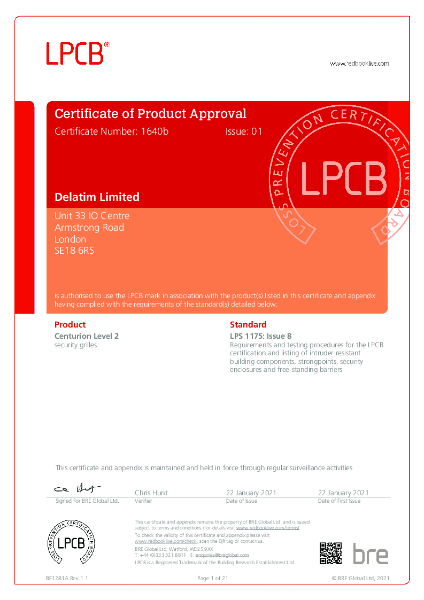

LPCB - Delatim Centurion Level 2 (SR2)

Literature

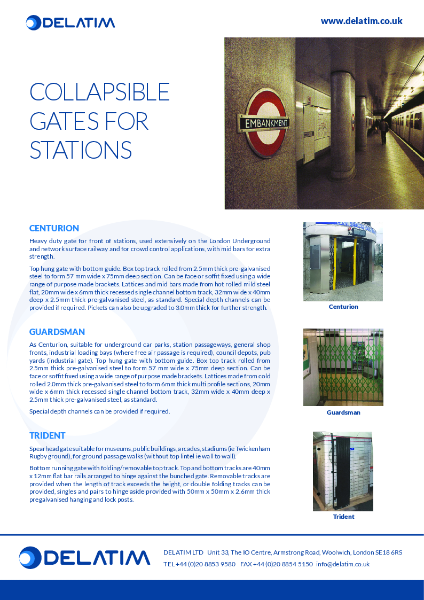

Delatim Collapsible Gates

Delatim Collapsible Gates
