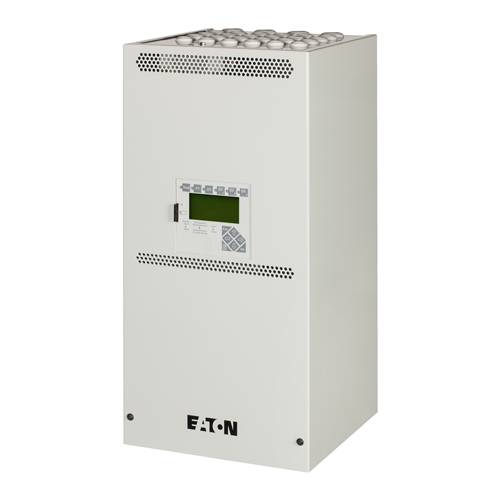

LP-STAR 4-12

Eaton Electric Variant:

Compact low power emergency lighting power supply.

Jump to:
01753 608 700 Website

Application

Suitable for emergency lighting systems.

Description

The LP-STAR System supplies reliable power to escape luminaires and exit sign luminaires (230 V a.c/ 220 V d.c) according to EN 50171 and BGV A3. It provides up to 540 watts of power from a 24 V battery.


Features and benefits:

  • Compliant with EN 50171.
  • Provides up to 540 watts of power from a 24 V battery.
  • Designed for distributed power supply to CEAG emergency exit and safety luminaires with STAR technology.
  • Suitable for emergency lighting systems according to DIN VDE 0100-718, DIN EN 50172 and E DIN VDE 0108-100.
  • No special requirements concerning the housing on functionality in case of installation in separate fire areas.
  • Cost savings as E30 wiring is not required because devices are installed in separate fire areas.
  • Natural ventilation is generally sufficient due to the closed form and low capacity of batteries.
  • Additional safety even in case of fire due to the decentralised arrangement of systems.
  • Simple operation and commissioning based on a smart programming and operating plan.
  • 230 V a.c./ 220 V d.c. supply voltage selectable to power the escape luminaires and exit sign luminaires to comply with architectural issues.
  • Standard integrated phase monitor for monitoring general power supply conditions.
  • Additional phase monitor input including line monitoring for an external phase monitor.
  • Standard eight digital 230 V input channels for switching each luminaire separately, for example, freely programmable.
  • Optional web module for the automatic monitoring of LP-STAR according to EN 62034.
  • Optional CG-S interface for connecting to the CG-S bus for CGVision or master/slave operation for connecting several LP-STAR devices.
  • Shorter inspection time using the CEWA GUARD technology, automatic function monitoring of up to 20 luminaires per circuit.
  • Reduced installation costs due to the STAR technology, freely programmable mixed operation of switching modes per luminaire in a single circuit without an additional data cable.
  • Automatic luminaire search function.
  • Plain text display at the control module for all luminaires.
  • Flexible data memory for the test log and device configuration using the Secure Digital card.
  • Absence of retroactive effect of different circuits in case of a short-circuit due to the automatic, selective shut-off function.
  • EoL shut-off, programmable as standard.

General information

Color

Grey

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Length

260 mm

Manufacturer guidance

Depth.

Width

260 mm

Height

550 mm

730 mm

Uniclass

Pr_60_70_06_12 Central battery supply unitsPrimary

CAWS

V90/540 Central battery power supply units

V90/550 Centrally supplied emergency luminaires

Specification data - Central battery supply units

Standard

To BS EN 50171.

Input

-

Nominal voltage

Single-phase 220–240 V a.c.

Nominal frequency

50/ 60 Hz.

d.c. output

-

Rated output apparent power

1.08 kV·A.

Guidance for specification option:

  • Total power: 1080 VA/ 540 W.
  • Circuit power: 345 VA/ 330 W.

Nominal voltage

220 V d.c.

Battery

-

Type

Lead-acid valve-regulated cells.

Guidance for specification option:

  • Rated capacity (AhK10, 1.8 V/Z, +20 °C): 10 Y: 11 Ah.
  • Dimensions of one battery (L x W x H): 151 x 98 x 101 mm.
  • Number of batteries (UB = 12 V pieces): 8 pieces (maximum).
  • Total weight of all batteries: 15.25 kg (4pieces); 30.5 kg (8 pieces).

Battery charger

-

Type

Microprocessor-controlled IU charging curve in function of temperature.

Controls, indicators and alarms

-

Light emitting diode (LED) indication

System readiness, supply from the source for safety services, failure.

LCD display

Battery voltage.

Guidance for specification option:

Display values:

  • Battery voltage.
  • Battery charge current (+), battery charge current in test mode or in case of fault (–).
  • Charge fault, luminaire fault with location information in plain text.
  • Deep discharge protection.
  • Manual reset.
  • Delayed emergency light (remaining time in minutes).
  • Insulation fault, UV-AV fault, fault information, programming information, test log book.

Event log

360 000 inspection log book entries.

Enclosure

-

Mounting arrangement

Floor-standing.

Ingress protection (minimum)

IP20.

Material and construction

-

Type

Steel.

Finish

Powder-coated.

Colour

Light grey (RAL 7035).

Lockable access doors

Required.

Cable entry

Removable gland plates, for top entry cables.

Ventilation arrangement

Naturally ventilated during stand-by mode.

Noise emission

-

Sound pressure level in normal mode (maximum)

0 dB (mains operation).
50 dB (emergency mode).

Integral distribution board

-

Number of outgoing ways

Four.

Accessories

Not required.

Clamping gland set - 40071361159.

Guidance for specification option:

28 pieces (4 x M25, 18 x M20, 6 x M16).

Battery

2 x 12 V/ 11 Ah.

Manufacturer guidance

Maximum battery size (C10; 1.8 V/Z, +20°C).

Rated maximum ambient temperature

Storage: -20°C to +40°C.
Operation: -5°C to +35°C.

Unit weight

17 kg.

Manufacturer guidance

Weight (approx.) without battery.

Dimensions

260 x 550 x 260 mm.

Manufacturer guidance

Width x height x depth.

Fuse

Final circuit fuses, 2.5 AT/ 250 V (packaging unit 10 pieces) - 40071361235.

Mains feed-in circuits, 6.3 AT/ 250 V (packaging unit 10 pieces) - 40071361234.

Integral accessories

Not required.

Webmodule LP-STAR (factory fitted)- 40071361450.

Webmodule LP-STAR (expansion) - 40071361449.

CG-S Bus Interface (factory provided) - 40071071178.

Guidance for specification option:

Interface for connection on CGVision or for MasterSlave operation (connection of more LP-STAR over the CG-S Bus).

Literature

LP Star - Central Battery System

LP Star - Central Battery System
