Cembrit Patina Inline - Facade Panel
Verified by manufacturer 2 months ago
BBA Agrément Certificate
Certificate type
'A' fire rated fibre cement façade panel with milled linear grooves providing a 3D effect.
Application
Suitable for use in rainscreen cladding, rigid sheet cladding and soffits.
Description

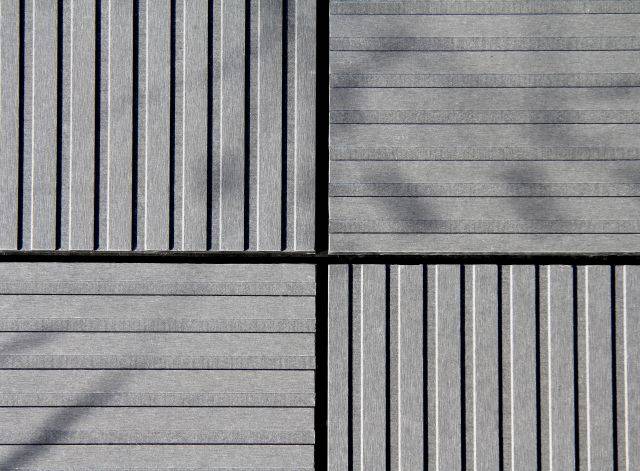

Non-combustible fibre cement cladding board with milled linear grooves that provide a 3D effect to the building.
Features and benefits:
- Customized squared or triangular pattern possible.
- Genuine, homogeneous material.
- Edge sealing not required.
- Improved dirt and stain resistance.
- Random shade variation from board to board producing a more natural look.
- Disguises surface damage.
- Low maintenance.
General information
ColorChoice of three colours. | Other |
Finish | Coated Linear grooves and hydrophobated coating. |
Material | Fibre cement Homogeneous |
Shape | Rectangle |
Length | 2500 mm 3050 mm |
Width | 1250 mm |
Height | 8 mm |
Uniclass | |
CAWS | G20/950 Fascias/ barges/ soffits G20/99 Fascias/ barges/ soffits H20/150 Sheet cladding H20/155 Sheet cladding H92/120 Rainscreen cladding |
Product range |
Specification data - Fibre-reinforced cement boards
Standard | To BS EN 12467:2004, Class NT A41. |
Fire rating | To BS EN 13501-1, Class A2-s1, d0. |
Bending strength | To EN 12467, 17–36 MPa. |
Sheet size | - |
Nominal thickness | 9.5 mm (8 mm to bottom of groove). |
Length | 2500 mm.3050 mm. |
Width | 1250 mm. |
Colour | P050-Inline Graphite.P070-Inline Flint.P545-Inline Sand. |
Product Reference | Cembrit Patina Inline |
Weather resistanceOver time, the natural ageing of the fibre cement leaves subtle traces on the surface. | - |
Edges | Edge sealing not required. |
Weight | 14.1 kg/m². |
Fixing method | Rivet, screw, site bonding or mechanical secret fix (MSF). |
Environmental information
Contains Red List materials | No |
Country of product manufacture | Hungary |
Embodied carbon | 11.9 kg CO₂ eq/m² |
Recyclability | NIL |
Recycled content | 0 % |
BIM objects
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Cembrit Patina, Cover, Solid & Transparent - Cladding
Cembrit Patina Inline
Cembrit Patina Design Line Range
Cembrit Patina design line colours
Third party certifications
BBA Agrément Certificate
18/5600 Cover, Solid and Patina Cladding Panels
