Cellweb - Cellular Confinement System (TRP) - Geocells - Tree Root Protection (TRP)
Verified by manufacturer 3 months ago
100 mm Cell Height
100 mm Cell Height
A cellular confinement system specifically designed for tree root protection (TRP). Geocells.
Application
Applications include:
- Car parks and over-spill parking.
- Paved and unpaved roads.
- Permanent solutions over tree root protection areas.
- Site access routes.
- Temporary working areas.
- Tree preservation orders (TPO’s).
Description

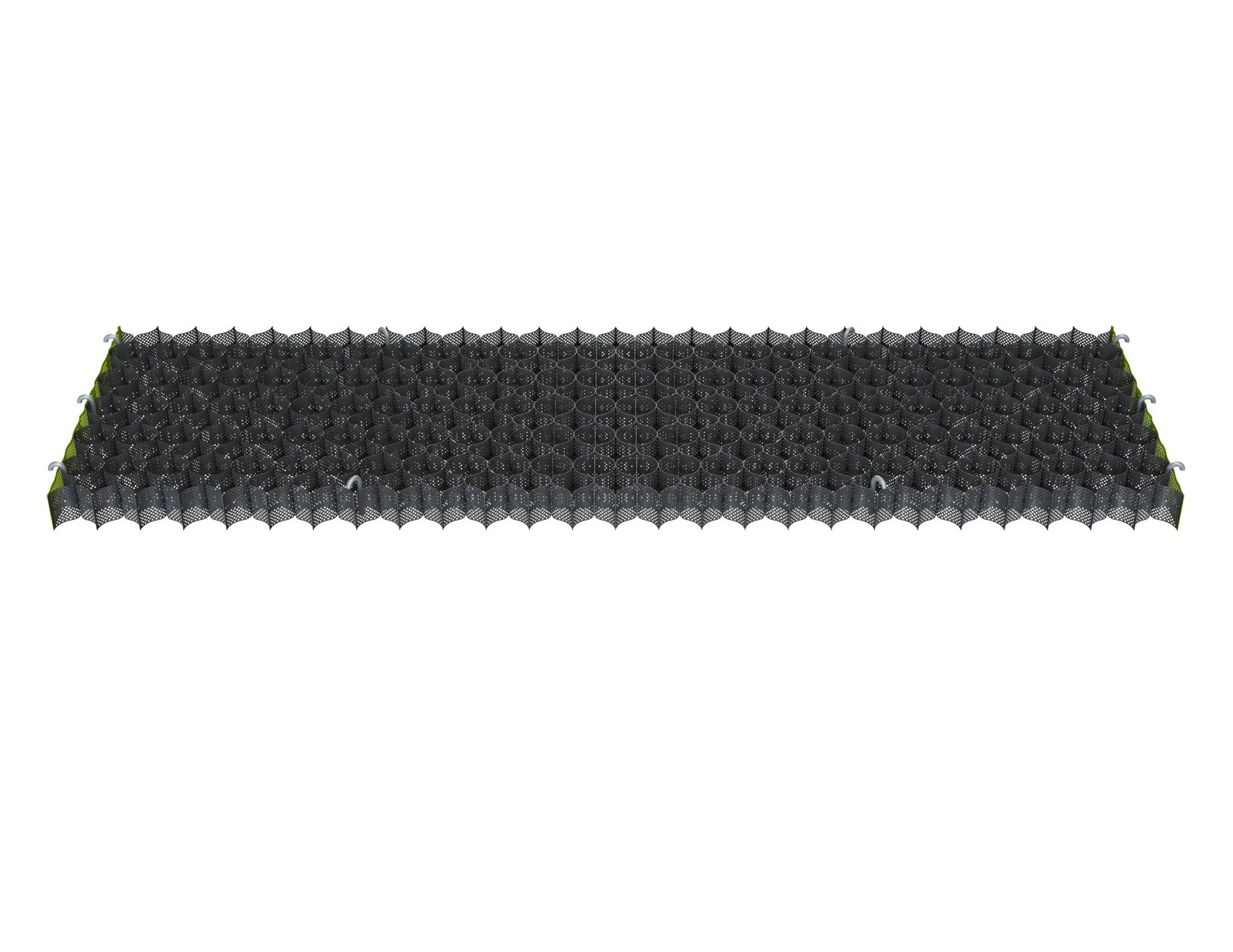

Cellweb®TRP is a cellular confinement system (Geocells) specifically designed for tree root protection. The system creates a stable, load bearing surface for traffic or footfall whilst eliminating damage to roots through compaction and desiccation. The distinctive cell size, cell depth and cell wall perforations combine to create the tree root protection system.
The Cellweb®TRP system comprises of the three specific elements, Cellweb®TRP, Treetex™ pollution control geotextile and an infill of clean angular stone.
Features and benefits:
- Guaranteed cellular confinement system(Geocells).
- Independently tested.
- No dig solution - loads placed upon it are laterally dissipated rather than transferred to the soil and roots below.
- Prevents sub soil compaction.
- 100% success rate.
- Continued water permeation and gaseous exchange, ensuring that nutrient supplies to the tree roots are maintained.
- Prevents surface rutting; optimising long term performance and aesthetics of the final surface.
- Simple to install.
- Complies with BS5837:2012, APN 12 and Tree Preservation Order (TPO) guidelines.
General information
Color | Black Green |
Finish | Textured |
Material | High density polyethylene (HDPE) |
Shape | Diamond Rectangle |
Length | 8100 mm |
Width | 2560 mm |
Height | 75 mm 200 mm |
Warranty description | 100 year |
Uniclass | |
CAWS | Q31/520 Cellular structural soil system Q25/350 Plastics pavers Q25/185 Gravel-filled plastics paving system |
Specification data - Geocell sheets
Material | High-density polyethylene (HDPE).Guidance for specification option:
|
Cell dimensions (expanded) | |
Cell size (nominal) | 259 x 224 mm. |
Cell depth | 100 mm. |
Properties | |
UV resistance | Carbon Black Content (ASTM D 1603 ), 1.5% (minimum % by weight). |
Recycled content | None permitted. |
Accessories | J pins. |
Underlay | Treetex™ pollution control geotextile. |
Infill | Angular stone, Type 4/20 mm. Angluar stone, Type 20/40 mm. |
Colour | Black with green facia strip. |
Profile | Rhomboidal (diamond shape) indentations. |
Panel size | 2560 x 8100 mm. Manufacturer guidanceExpanded panel size (width x length). |
Peel strength | 1420 N. |
Perforations | 11 ± 2%. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Fully Recycable |
Literature
Cellweb® Tree Root Protection (TRP) - Brochure
Cellweb®TRP - Data Sheet
