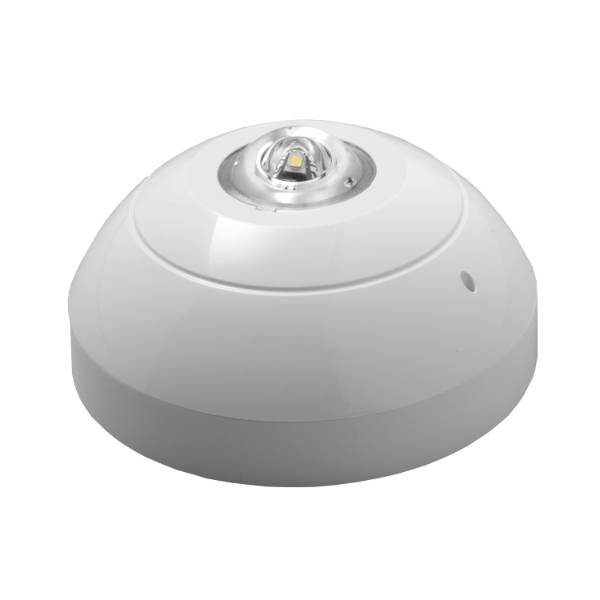

Cat C Loop Powered VAD C-3-8.5 - Visual alarm device

Verified by manufacturer 2 months ago

Apollo Fire Detectors Ltd

A Visual Alarm Device (VAD) with an EN54-23 category of C-3-8.5.

Jump to:
BOS
+44 (0)23 9249 2412 Website

Application

For use in situations where there is a risk that sounders will not be heard, this occurs, for example, where there is a high background noise e.g. in a workshop or a machine room.


May also be required where deaf or hearing impaired persons may be present.

Description

The VAD has been developed as a primary or supplementary alarm device.

It can be mounted using the Apollo first fix base.

The VAD uses a high intensity LED to produce a white flash colour.


Features and benefits:

  • Uses high intensity LED (white flash only).
  • EN 54-23 Compliant Category C. VAD.
  • Coverage C-3-8.5 & C-3-15.
  • Automatic LED check when VAD activated.
  • Flash rate 0.5 Hz.
  • Fault signal if LED check failed.
  • Locking mechanism (grub screw).
  • Wide angle of visibility.
  • Synchronised with the Apollo Protocol.

General information

Color

White

Red

Finish

Gloss

Material

Polycarbonate

Shape

Circle

Width

100 mm

Guidance for specification option:

Diameter.

Height

50 mm

Warranty description

Ten year

Uniclass

Pr_75_80_30_97 Visual alarm signal devicesPrimary

Sustainability data

Material

Polycarbonate

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

4

IFC

IFC2X3

2
