Description

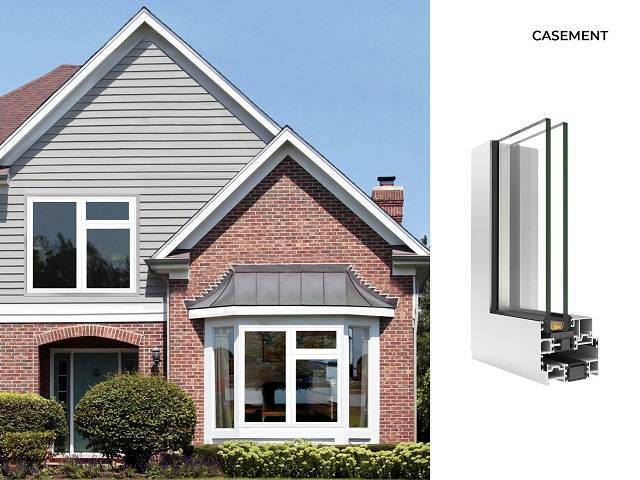

Outward opening window with a basic depth of 70 mm. Slim profiles provide a maximum glazed surface.

Features and benefits:

  • Constructed from aluminium alloy 6063 T6.
  • European groove.
  • Available in slim and heavy duty variants.

General information

Size

As drawing

Insert reference.

As schedule

Insert reference.

Material

Aluminium alloy 6063 T5 profiles, including 32 mm long insulation bars constructed from polyamide 6.6, reinforced with 25% of fiberglass and perimeter polyolefin foam in rebate zone

Uniclass 2015

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/25 Aluminium windows

L10/330 Aluminium windows

Specification data - Aluminium window units

Product Reference

Casement

Size

As drawing

Insert reference.

As schedule

Insert reference.

Sash

Heavy duty

Slim

Glazing

-

Configuration

Fixed

Side hung

Top hung

Thickness

Insert requirement, maximum thickness of 44 mm.

Finish

-

Type

Anodized

15–25 μ dependent on the class (Class 15, Class 20, Class 25), guaranteed by EWAA-EURAS Standard.

Polyester powder coated

Insert requirement, quality guaranteed by QUALICOAT Standard, with a thickness in the interval between 60–100 μ.

Colour

Insert requirement or insert 'Not applicable' for Anodized.

Hardware/ Accessories

Insert requirements, see 'Options' for details.

Standard product features

Material:

Aluminium alloy 6063 T5 profiles, including 32 mm long insulation bars constructed from polyamide 6.6, reinforced with 25% of fiberglass and perimeter polyolefin foam in rebate zone.

Profile thickness:

1.6 mm (frames and sashes).

Depth:

70 mm (frames and sashes).

Maximum weight per sash:

  • Side hung: 42 kg.
  • Top hung: 100 kg.

Gaskets:

Two ethylene-propylene diene monomer (EPDM) seals.

Thermal transmittance:

  • Frame and sash (Uf): 2.7 W/m²K.
  • Window (Uw): ≥1.0 W/m²K.

Acoustic insulation (maximum):

Rw = 45 dB(A).

Performance (based on 1.23 x 1.48 m, two sashes):

  • Air permeability (to BS EN 12207): Class 4 (based on 1.438 x 1.355 m, one sash and one fixed light).
  • Water tightness (to BS EN 12208): Class E1200 (based on 1.438 x 1.355 m, one sash and one fixed light).
  • Wind resistance (to BS EN 12210): Class CE 2400 (based on 1.438 x 1.355 m, one sash and one fixed light).
  • Burglary resistance (to PASS 24:2016): Complies (based on 1.438 x 1.350 m, one sash and one fixed light).

Product Options

Size:

  • Maximum width per sash: Heavy duty side hung: 750 mm; heavy duty top hung: 1800 mm; slim side hung: 700 mm; slim top hung: 1200 mm.
  • Maximum height per sash: Heavy duty side hung: 1750 mm; heavy duty top hung: 1800 mm; slim side hung: 1300 mm; slim top hung: 1300 mm.

Hardware/ Accessories:

Top hung and side hung friction stays and handles. Optional security clips and anti-lifting caps.
