Application

A lightweight render for façades and walls constructed out of low, medium and high density blockwork or any other masonry substrate. The product’s special composition allows the product to breathe and also permits constant hygrometric exchange between the substrate and the environment.

Description

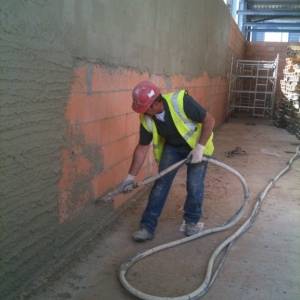

CASEA Bauprotec 900 E is a factory produced lightweight lime cement render specially designed for hand and machine application produced to BS EN 998-1. It is manufactured from a controlled blend of selected aggregates, lightweight aggregates, cement, polymers, fibres and other components to give a high quality weather resistant rendering product which is suitable for use in external rendering and internal plastering. The unique properties of this render make it suitable for application on low, medium and high density substrates.

Benefits:

  • Lightweight – low tension.
  • High yield.
  • Weather resistant.
  • CE marked.
  • BS EN 998-1.

Applications:

A lightweight render for façades and walls constructed out of low, medium and high density blockwork or any other masonry substrate. The product’s special composition allows the product to breathe and also permits constant hygrometric exchange between the substrate and the environment.

Specification data
Product Reference

CASEA Bauprotec 900 E

Standard product features

Technical characteristics:

  • Dry Bulk Density: approx. 1000 kg/m³.
  • Compressive Strength: > 3.0 N/mm² CS II.
  • Flexural Strength: approx. 1.2 N/mm².
  • Modulus of elasticity: ca. 2.5 kN/mm².
  • Capillary Water Absorption: W 2 as per DIN EN 998.
  • Adhesion: ≥ 0.08 N/mm² FP A,B or C.
  • Water Vapour Permeability: μ ≤ 20.
  • Thermal Conductivity (Tabular Value): λ10, dry,mat ≤ 0.25 W/(mK) at P=50%.
  • Yield: 1.1 kg/mm/m².
  • Water Demand: 7 L per 30 kg bag.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 5 1.3
ARCHICAD
- 1.0
Vectorworks
- 1.0
AECOsim
- 1.0
Revit
Revit 2016 6 2.0
Download now from NBS National BIM Library
