Verified by manufacturer 3 months ago
ISO 9001 Quality Management
Certificate type

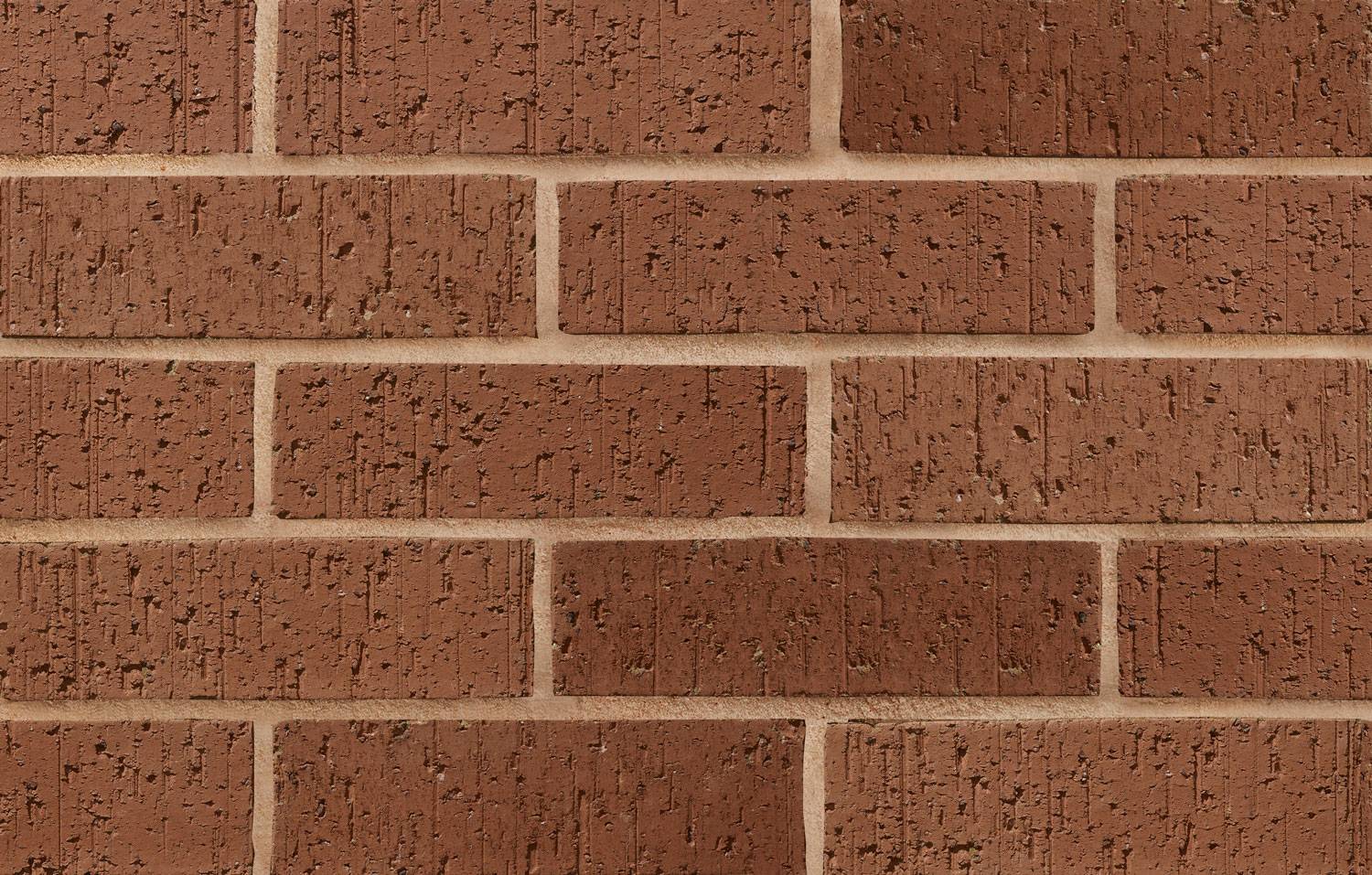

Red Dragwire 215 x 102.5 x 65 mm is a clay facing brick available from Carlton.
Suitable for contemporary brickwork in modern housing developments, restorations, refurbishment and conservation projects.
215 x 102.5 x 65 mm Facing Brick available from Carlton and widely used for contemporary brickwork in modern housing developments, restorations, refurbishment and conservation projects, complementing a vast array of architectural styles.
This extruded wire-cut brick is red, brown and orange colour, with textured finish and offers exceptional technical specifications of T2, R1, F2, S2 and a compressive strength of 40 N/mm2.
Features and benefits:
Color | Red Guidance for specification option: Red multi. |
Finish | Wirecut |
Material | Clay |
Shape | Rectangle |
Length | 215 mm |
Width | 102.5 mm |
Height | 65 mm |
Uniclass | |
CAWS | F10/110 Clay facing brickwork C41/260 Bricks C41/260 Bricks |
Product range |
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Appearance | Wire-cut, red multi. |
Work size (length x width x height) | 215 x 102.5 x 65 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | 40 N/mm². |
Durability designation | F2. |
Density | |
Gross dry | 1500 kg/m³. |
Net dry | 2100 kg/m³. |
Tolerance | D1. |
Water absorption | <10%.Guidance for specification option: Initial rate of water absorption (kg/m².min): 1.5. |
Configuration | Group 2.Guidance for specification option: Vertically perforated clay facing brick. |
Thermal conductivity | 0.62 W/m·K (50%), 0.69 W/m·K (90%). |
Thermal resistance | 0.17 m² K/W (50%), 0.15 m² K/W (90%). |
Water vapour permeability | 50/100. |
Bond strength | 0.15 N/mm².Guidance for specification option: Fixed value. |
Reaction to fire | Class A1. |
Active soluble salts | S2. |
Third-party certification | BES 6001; ISO 9001; ISO 14001 and ISO 50001. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% Guidance for specification option: Can be reused, 100% recyclable. |
