Carlton Kirkby Rustic Clay Brick - Imperial

Verified by manufacturer 4 months ago

Michelmersh Brick Holdings PLC Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Clay facing bricks.

Jump to:
+44 (0)844 931 0022 Website

Application

Suitable for contemporary brickwork in modern housing developments, restorations, refurbishment and conservation projects.

Description

215 x 102.5 x 73 mm clay facing bricks that complement a vast array of architectural styles.

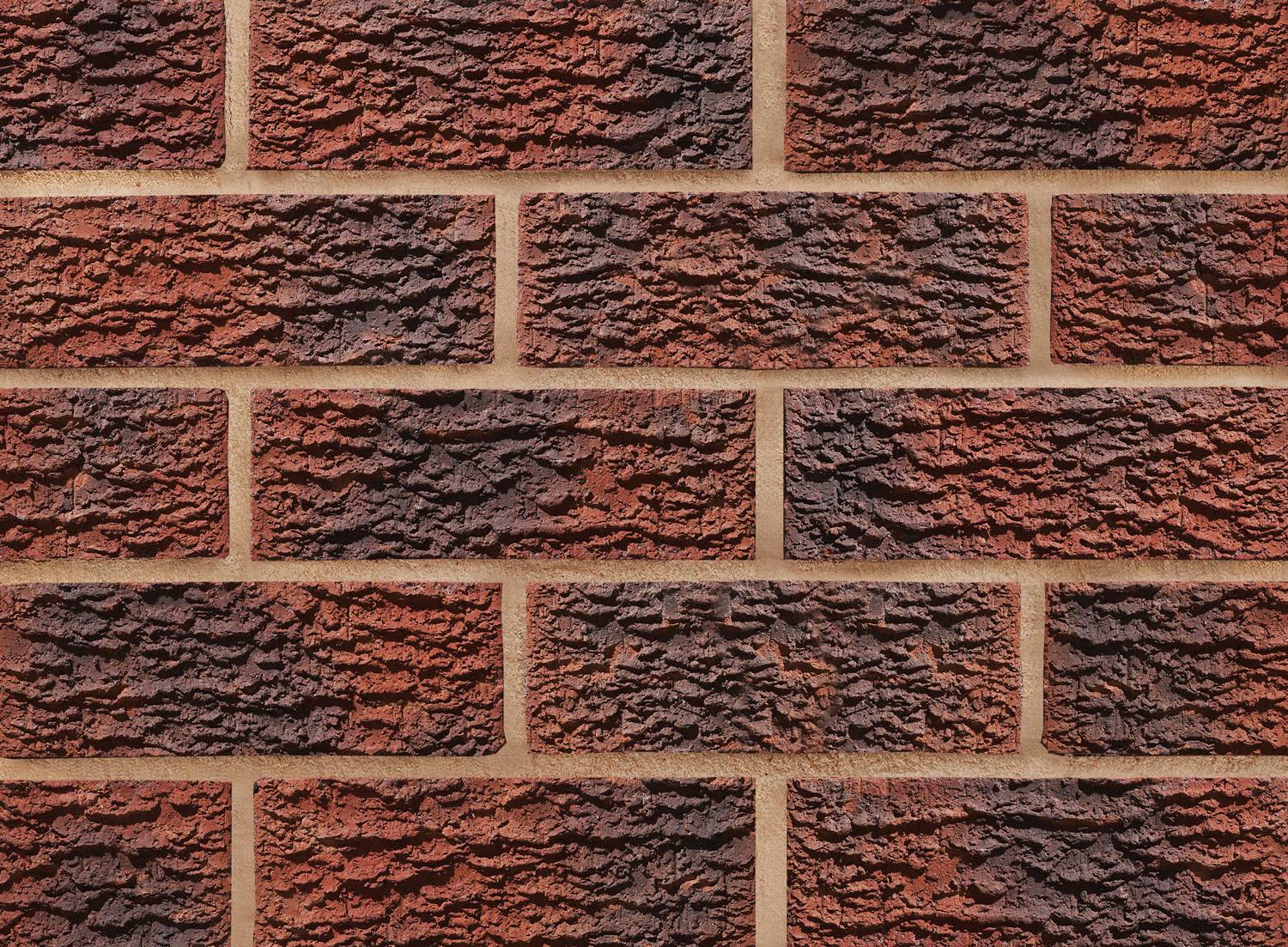

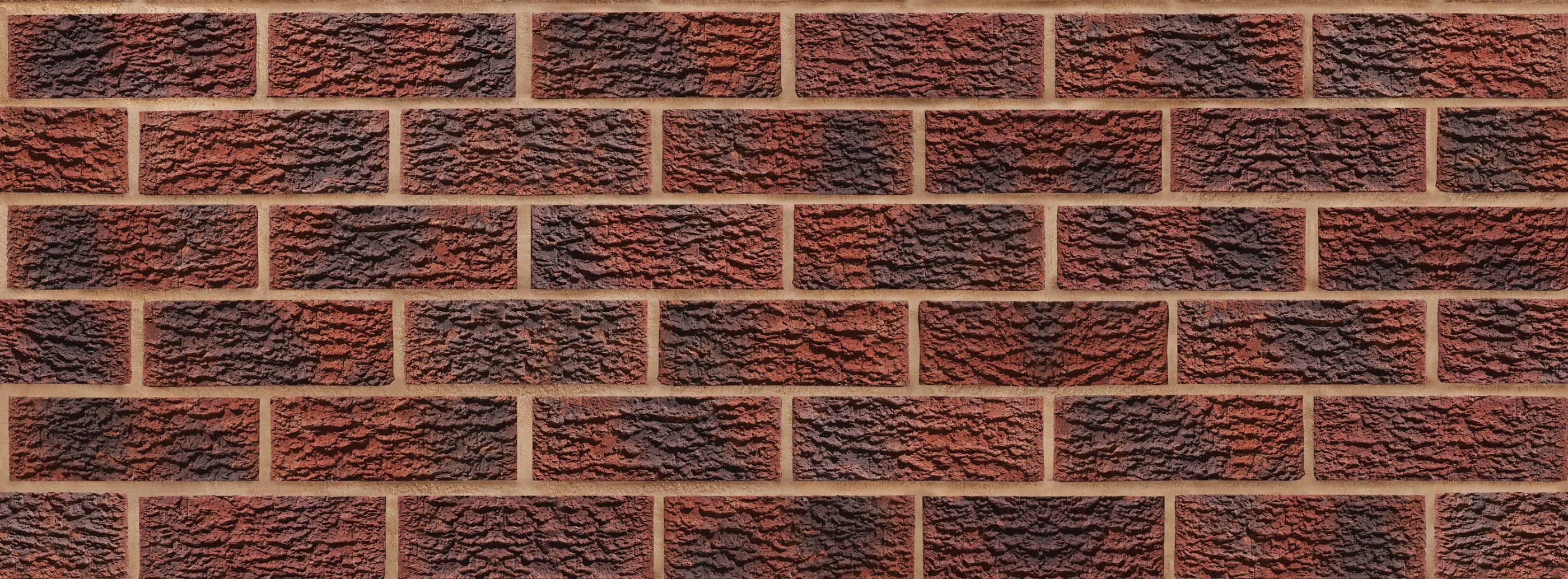

This extruded wire-cut brick is red, brown multi colour with tones of purple, a heavily creased rustic texture and offers exceptional technical specifications of T2, R1, F2, S2 and a compressive strength of 40 N/mm².


Features and benefits:

  • Carlton, based in Barnsley, has over 130 years experience producing extruded, wire-cut facing bricks in a wide variety of textures with an extensive offering in both 65 mm and 73 mm sizes.
  • Carlton’s products can be offered in mixed loads with the flexibility to mix product sizes, colours and textures with improved availability.
  • Carlton products from MBH PLC are manufactured in accordance with the requirements of British Standard BS EN 771-1.
  • The Carlton range offers outstanding properties of total durability, being F2 rated and fully frost resistant.

General information

Color

Red

Guidance for specification option:

Red multi.

Finish

-

Manufacturer guidance

Rustic

Material

Clay

Shape

Rectangle

Length

215 mm

Width

102.5 mm

Height

73 mm

Uniclass

Pr_20_93_52_15 Clay bricksPrimary

CAWS

F10/110 Clay facing brickwork

C41/260 Bricks

C41/260 Bricks

Product range

Carlton

Specification data - Clay bricks

Standard

To BS EN 771-1.

Brick description

Facing brick.

Appearance

Wire-cut rustic, red multi.

Work size (length x width x height)

215 x 102.5 x 73 mm.

Tolerances

-

Mean value

T2.

Range

R1.

Compressive strength

-

Mean compressive strength (minimum)

40 N/mm².

Durability designation

F2.

Density

-

Gross dry

1500 kg/m³.

Net dry

2100 kg/m³.

Tolerance

D1.

Water absorption

<10%.

Guidance for specification option:

Initial rate of water absorption (kg/m².min): 1.5.

Configuration

Group 2.

Guidance for specification option:

Vertically perforated clay facing brick.

Thermal conductivity

0.62 W/m·K (50%), 0.69 W/m·K (90%).

Thermal resistance

0.17 m² K/W (50%), 0.15 m² K/W (90%).

Water vapour permeability

50/100.

Bond strength

0.15 N/mm².

Guidance for specification option:

Fixed value.

Reaction to fire

Class A1.

Active soluble salts

S2.

Third-party certification

To BES 6001 / ISO 9001 / ISO 14001 / ISO 50001.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Guidance for specification option:

Can be reused, 100% recyclable.

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 - Quality Management

Literature

Carlton_Brochure_2022

Carlton_Brochure_2022
