Capsule Kit with Square Handset

Capsule Kit with Square Handset

VADO

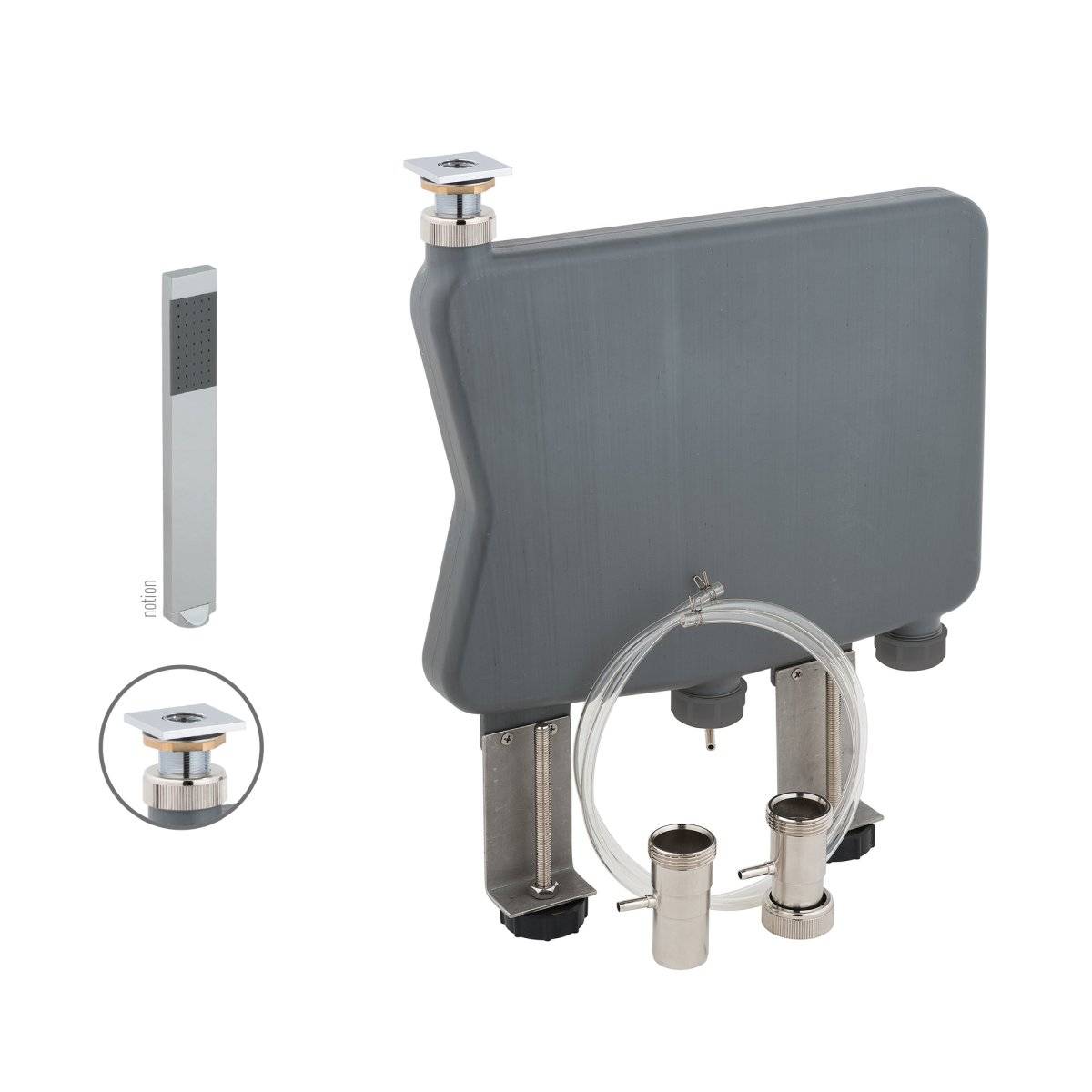

Notion Capsule kit with square deck mounted handset object

Jump to:
+44 (0)1934 744466 www.vado.com
Application

For installation into baths with cavities of 50 mm wide or larger.

Description

Single function shower handset and capsule kit. Deck mounted with flexible chrome plated brass hose.

Features and benefits:

  • Part of the Notion collection.
  • Connects directly to the bath waste outlet via a non-return valve.
  • Can be fitted to the corner of the bath.
  • The capsule concealed box helps to eliminate water ingress.
  • 15-year guarantee.

Applications:

For installation into baths with cavities of 50 mm wide or larger.

General information

Finish

NOT-CAPSULE-C/P - Chrome

Standard.

IND-CAPSULE/SQ-BG - Bright gold

IND-CAPSULE/SQ-BLK - Brushed black

IND-CAPSULE/SQ-BRG - Brushed gold

IND-CAPSULE/SQ-BRN - Brushed nickel

Show more

Material

Brass

WarrantyDescription

15 year guarantee (registration required)

Uniclass 2015

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/25 Sinks

N13/331 Sinks

Specification data - Shower fittings package

Product Reference

Capsule Kit with Square Handset

Finish

NOT-CAPSULE-C/P - Chrome

Standard.

IND-CAPSULE/SQ-BG - Bright gold

IND-CAPSULE/SQ-BLK - Brushed black

IND-CAPSULE/SQ-BRG - Brushed gold

IND-CAPSULE/SQ-BRN - Brushed nickel

IND-CAPSULE/SQ-BN - Bright nickel

IND-CAPSULE/SQ-BRZ - Brushed bronze

Standard product features

Size:

  • Capsule width: 400 mm.
  • Capsule height adjustment: 480–570 mm.
  • Shower head (h x d): 222 x 30 mm.
  • Drill hole: 32 mm.

Connection:

½" BSP.

Minimum operating pressure:

1.0 bar.

Digital objects
Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
