Canterbury Bollard

Description

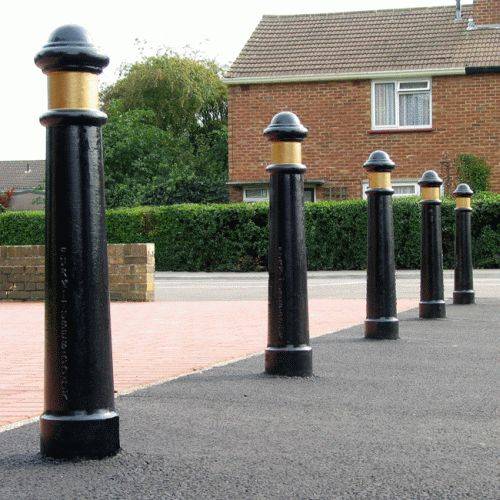

Canterbury cast iron bollards are dome topped and finished primed as standard. They are designed for use in both traditional and contemporary settings. The Canterbury is available as a removable bollard in cast aluminium. The Canterbury aluminium removable bollard can be housed in either a hinged steel socket (to be secured with a padlock) or the F1 socket, which provides a flat, flush finish when not in use. A polyurethane elastomer (PU) version of the Canterbury bollard is also available with a two pack gloss coated finish.

General information

Finish

Primed

CTB 930/ CTB 930 AR.

Two pack gloss paint

CTB 001; insert requirements.

CAWS

Q50/190 Bollards

null Street furniture

Product range

Bollards

Specification data

Product Reference

CTB 001

Polyurethane (PU).

CTB 930

Cast iron.

CTB 930 AR

Cast aluminium, removable.

Finish

Primed

CTB 930/ CTB 930 AR.

Two pack gloss paint

CTB 001; insert requirements.

Socket

Not required

For root fixed bollards.

FI75

Small composite socket for 75 mm diameter bollards.

FI115

Large composite socket for 115 mm diameter.

SOCKSS

Small steel socket for bollards under 170 mm diameter.

SOCKLS

Large steel socket for bollards of at least 170 mm diameter.

Accessories

None

CHNS

Steel spiked chain link, galvanized.

CHNP

Steel plain chain link, galvanized.

EBAB

Steel M10 eye bolt, bright zinc plated.

SLNK

Steel split link, galvanized.

TAPE C

Red/ white chevron reflective tape.

TAPE R

Red reflective tape.

TAPE W

White reflective tape.

TAPE Y

Yellow reflective tape.

Standard product features

Technical characteristics:

- CTB 001:

  • Above ground: 790 mm.
  • Below ground: 300 mm.
  • Diameter: 172 mm.
  • Weight: 17 kg.
  • Fixing: Root fixed.

- CTB 930:

  • Above ground: 900 mm.
  • Below ground: 300 mm.
  • Diameter: 120 mm.
  • Weight: 38 kg.
  • Fixing: Root fixed.

- CTB 930 AR:

  • Above ground: 900 mm.
  • Below ground: 320 mm.
  • Diameter: 120 mm.
  • Weight: 18 kg.
  • Fixing: Removable.

Product Options

Socket:

  • Standard steel socket hinge plate for locking with an FB14 padlock or similar.
  • F1 series sockets can accommodate standard size circular bollards, or the bollards can include a welded on circular spigot for large diameter circular bollards and other shapes, such as square.
